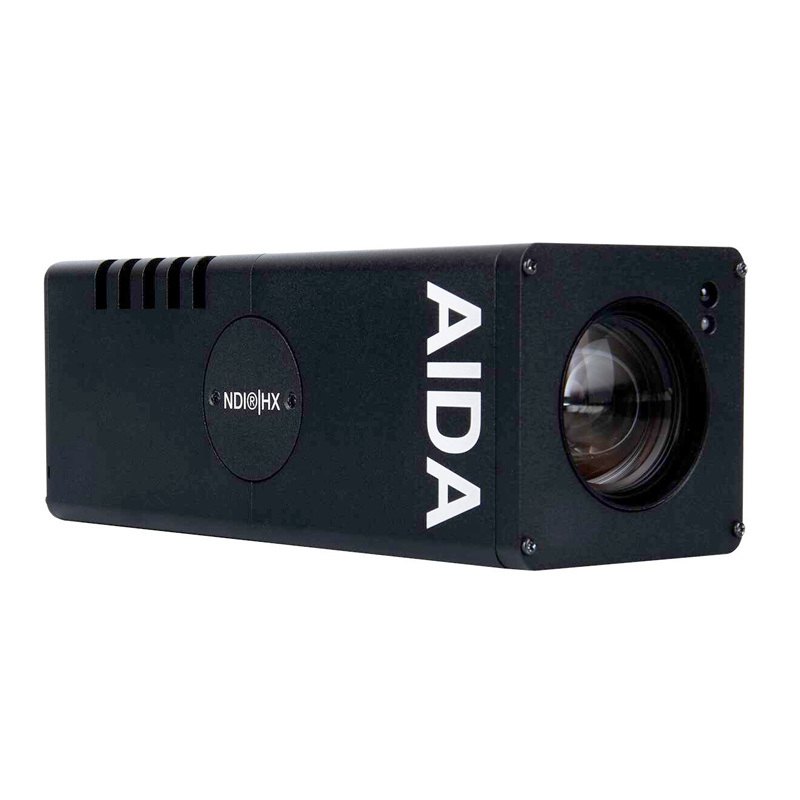

Aida HD-NDI-X20 - NDI|HX Camera with 20X Optical Zoom
The ultimate POV NDI|HX all-in-one
The HD-NDI-X20 gets the best of both worlds in AIDA's POV and PTZ world; form factor and zoom. The camera features a stunning Full-HD 20x optical zoom module, outputting pin-sharp 1080 60p video over HDMI, NDI|HX and IP.
Hassle-free integration
The HD-NDI-X20 comes with a pre-installed NDI|HX license key. That means less time figuring out whether the activation key has an I or an L, and more time streaming.
One Cable to rule them all
With PoE support, you only need 1 Ethernet cable. Power, control and video in an instant! As we like to say; less clutter, less stress.
HD-NDI-X20 fast specs
- NDI|HX & HDMI: NDI 5 compliant camera
- Full HD streaming: 1080p, 1080i, 720p
- 20x zoom
- Full HD 20x optical zoom with autofocus
- Line in audio
- Synchronized NDI|HX streaming
The beauty of reach!
With the powerful 20x optical zoom lens, you can capture subjects up to 30 meters in sharp focus!
No complex web interface
With a simple web interface for operation, preview and image settings, you can start streaming right away!
Tally
Let your talent know camera is current with the integrated tally!
1/4"-20 Mount here and there
This beast of a camera comes with two 1/4″ – 20 mounting holes on the top and bottom of the center of the camera, making it safer and easier to mount!
Aida HD-NDI-X20 camera
IR Remote Control
12V DC Power Supply
I/O Breakout Cable
VIDEO
Image Sensor : 1/2.8” Progressive CMOS
Effective Pixels Horizontal: 1920, Vertical: 1080
Pixel Size: 2.9 μm (H) x 2.9 μm (V)
Resolution : 1080p, 1080i, 720p
Resolution Rate:
1080 60p/59.94/50p/30p/29.97p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p
Output: HDMI, IP (NDI|HX/SRT/RTMP/RTSP)
Color Space: 4:2:2 (YCbCr) 10bit
Min Illumination: 0.2Lux (day), 0.1Lux (Night)
OPTICS
Lens: 20X HD Optical Zoom, F1.5~F3.0
Field of View: 61° WIDE, 3.4° TELE'd
STANDARD
IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX
AUDIO
Input: 3.5 TRS Stereo Audio Port
Sample Rate: 16/24/32 Bit
PHYSICAL
Camera Control Protocol: VISCA Over IP
Control: OSD Button, Web UI or Controller
Operating Temp: 32°F - 104°F
Dimension: 171mm x 64mm x 64mm (6.73in x 2.52in x 2.52in)
Weight: 800g / 1.76lbs (with default WP cap)
Power: 12VDC (+9 - +15VDC) (PoE+ 24Watts)
