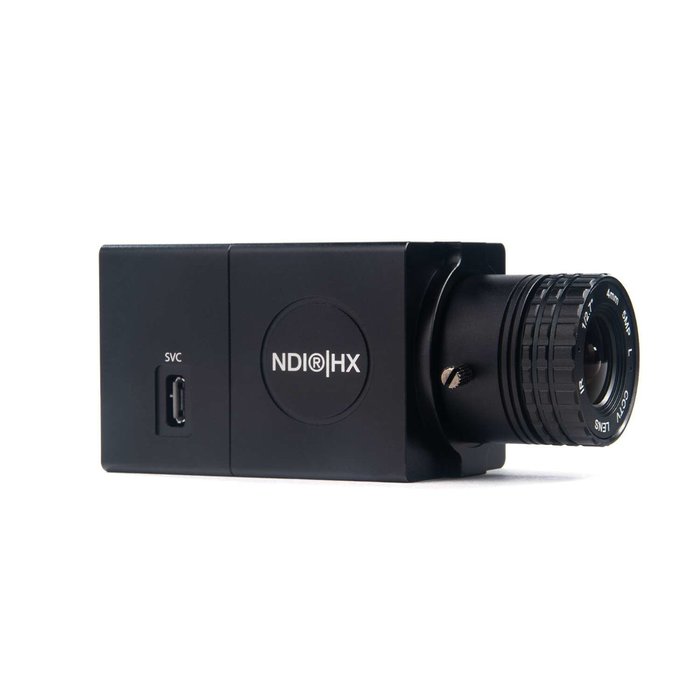

Aida HD-NDI-CUBE - FHD NDI|HX & SRT POV Camera

NDI|HX just got a lot smaller

Don't underestimate the HD-NDI CUBE! The small form factor doesn't detract from the FULL HD quality of our POV cameras. With the ability to simultaneously output NDI|HX, SRT, RTSP, and RTMP, it's no wonder the CUBE is a game-changer.

Most important features

• Full-HD 1/3” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video.
• Accessible web UI to stream directly to social media platforms and customize settings.
• Flexible use with tripod mounts at the top and bottom.
• USB SVC port for adjusting network settings and updates.
• The small form factor allows it to be placed unobtrusively
• Ideally suited as an additional camera for new or existing NDI®|HX setups.

†

VIDEO

Image Sensor 1/3” Progressive CMOS

Sensor Size 5.346mm x 3.003mm (16.9)

Effective Pixels Horizontal: 1920, Vertical: 1080 Pixel Size 2.75 m (H) x 2.75 m (V)

Resolution 1080p, 1080i, 720p

Resolution Rate 1080 60p/59.94/50p/30p/29.97p/25p 24p

1080 60i/59.94i/50i

720 60p/59.94p/50p Output IP (NDI|HX/SRT/RTMP/RTSP)

Color Space 4:2:2 (YCbCr) 10bit

Min Illumination 0.2Lux (day), 0.1Lux (Night)

White Balance Auto & Manual (9000 - 11,000 K)

LENS

Lens C/CS Mount (Default 4mm HD Lens)

STANDARD

IP Protocol UDP|IP, RTSP|RTMP, SRT, NDI|HX

PHYSICAL

Camera Control Protocol: VISCA Over IP

Operation Temp 32°F - 104°F

Dimension 86mm x 40mm x 40mm / 3.38” x 1.57” x 1.57” (with default 4mm lens)

Weight 180g / 0.39lbs (with default 4mm lens)

Power 12VDC (+9 - +15VDC) (PoE Adapter Included)
