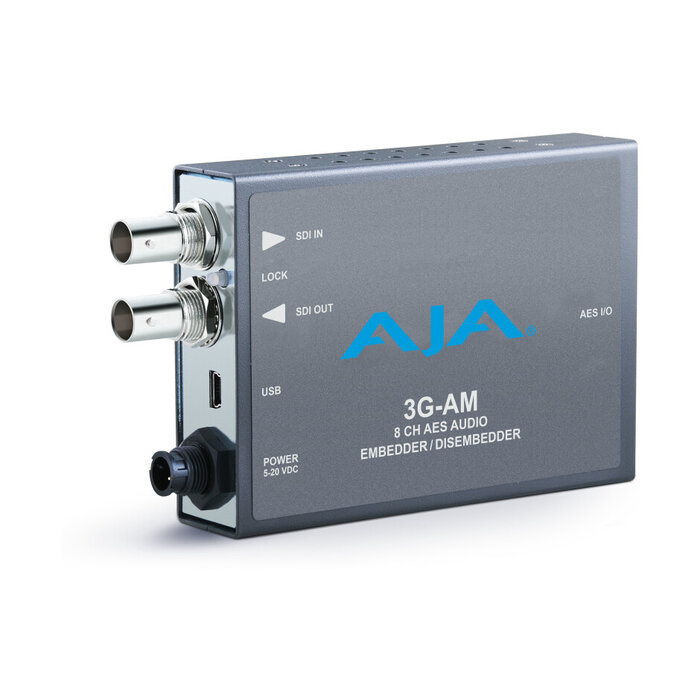

AJA 3G-AM - 3G-SDI 8-Channel AES Embedder/Disembedder with XLR Breakout Cable

3G-AM - 3G-SDI 8-Channel AES Embedder/Disembedder with XLR Breakout Cable

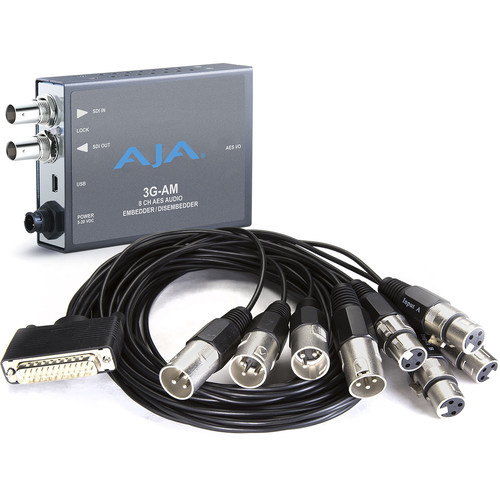

The 3G-AM from AJA is a triple rate 8-channel AES audio embedder/disembedder. AES audio can be embedded and disembedded simultaneously. The embedder is user selectable, on a channel pair basis, to either "pass" existing SDI input audio or embed AES input audio from the breakout cable. The ability to pass incoming ancillary data makes it possible to embed up to 16 channels of audio by cascading two units. Horizontal ancillary data (HANC) packets in compliance with SMPTE 291M can also be dropped at the input. The 3G-AM automatically detects and configures to the input video standard, and formats to a resolution of up to 2048 x 1080p. This unit includes an XLR connector AES breakout cable.

Features

• 3G-SDI embedder/disembedder
• 8-channel AES I/O
• Supplied breakout cables for balanced AES - XLR connectors
• USB connectivity via AJA Mini-Config software
• Dipswitch configuration
• +5-20VDC Power

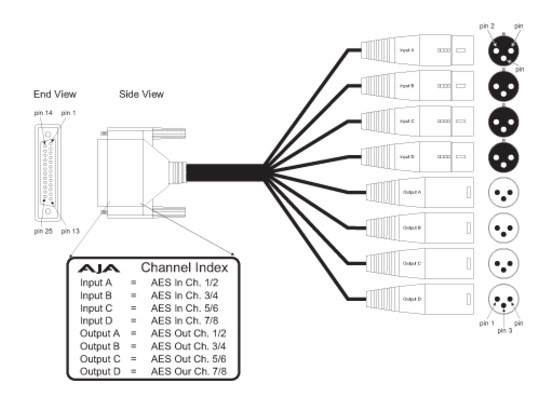

Choice of Supplied Breakout Cable

You can order 3GAM with either a XLR or BNC breakout cable.

Specify 3G-AM-XLR for XLR connectivity or 3G-AM-BNC if you prefer BNC connectors for AES audio needs.

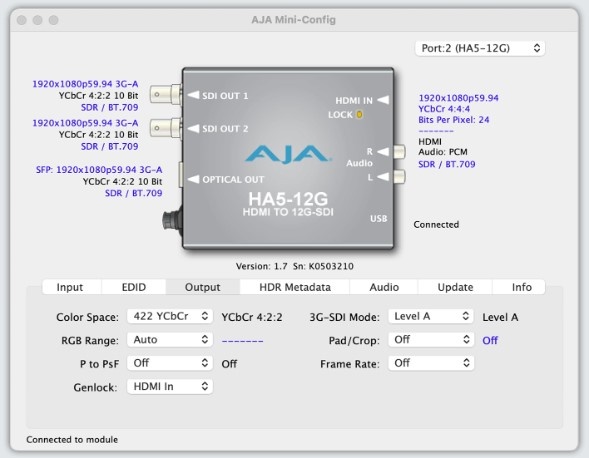

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix

Information on the complete line of AJA Converters is available in Mini-Matrix. AJA products are extensive and this resource helps you find the right Converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
