System aktiv10 flowtech100

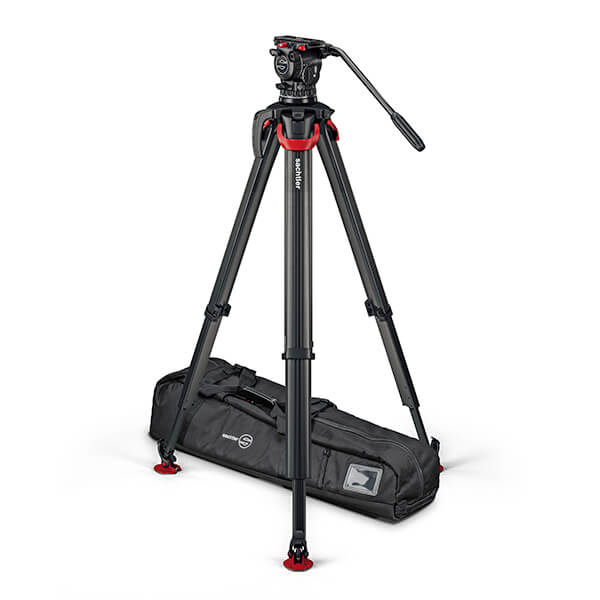

Sachtler System aktiv10 flowtech100 with sideload

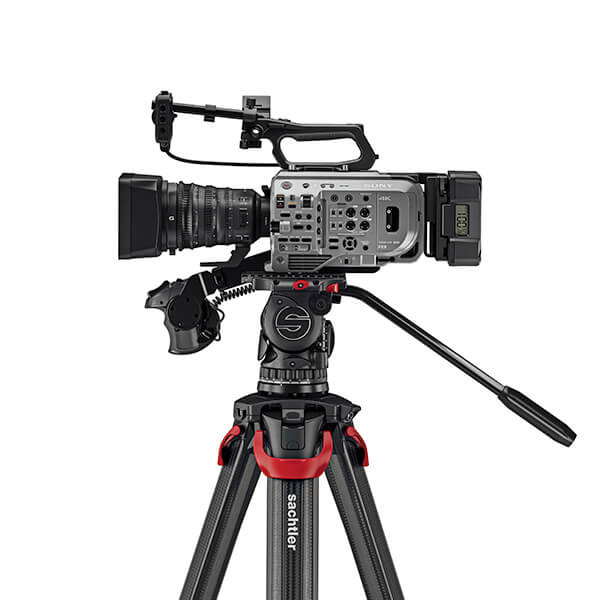

Weighing only 6.3 kg (13.9 lbs.) the aktiv10 flowtech100 system is both lightweight and durable, designed to be a long-serving and high-performing part of your kit. This system is the perfect choice for professional medium-sized camcorders and digital Cine camera set ups of up to 12 kg (26.5 lbs.). 15 counterbalance steps allow for fast and precise balancing of your camera. Its sideload mechanism with a long sliding range of 120 mm make loading and positioning the camera quick and easy. Seven drag settings provide smooth and fast to adjust drag performance without jolts or vibrations. The illuminated PrismBubble with top or side view makes levelling easy from any height.

Fluid Head

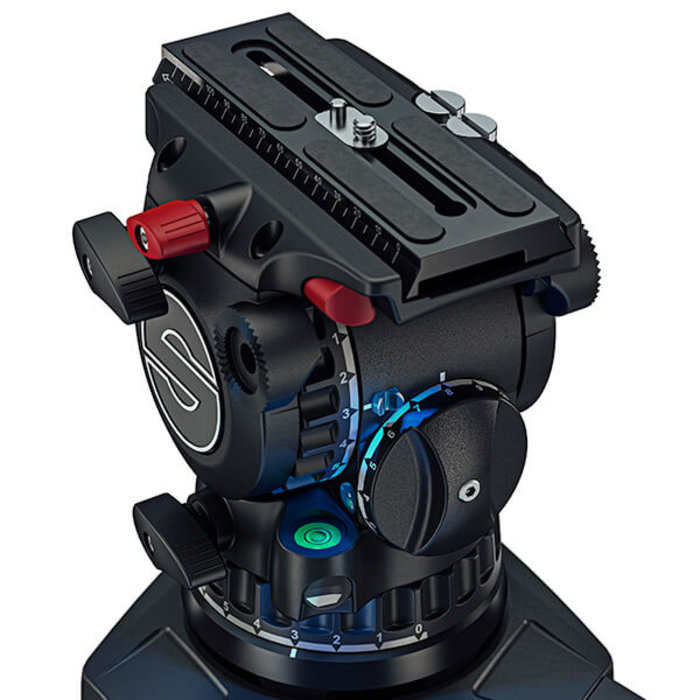

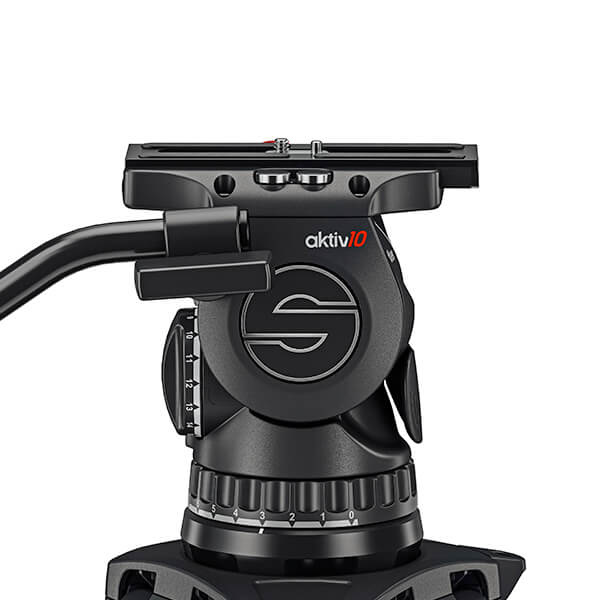

The aktiv10 fluid head with unique SpeedLevel™ technology can be levelled in seconds giving you time to get the perfect shot in documentary, corporate, news or wildlife applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.

Tripod

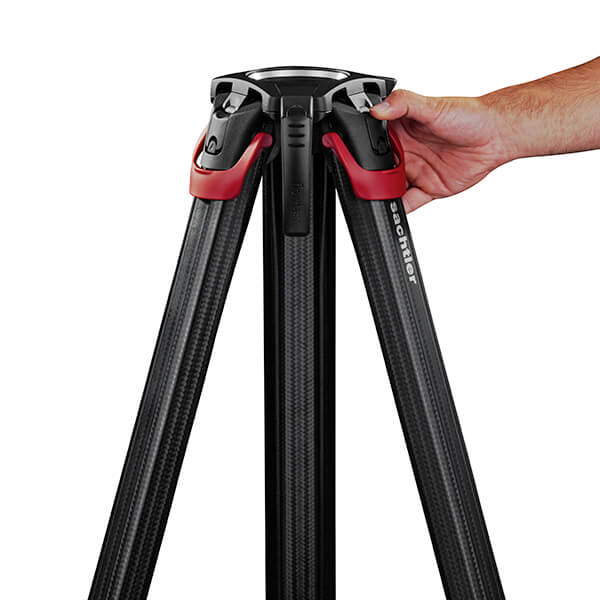

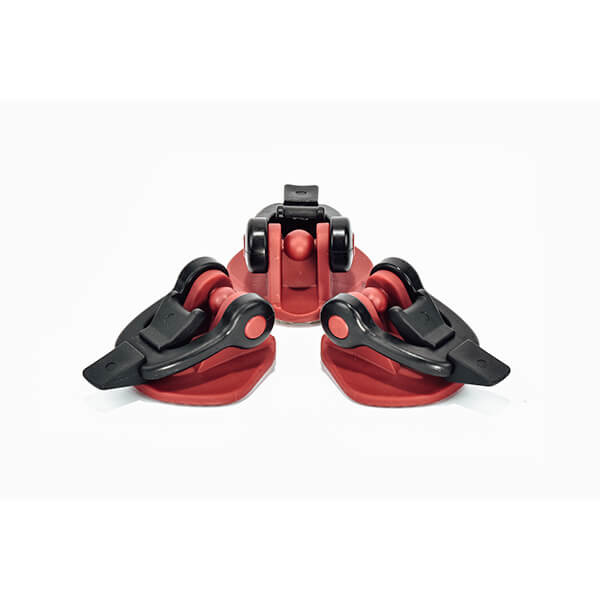

Capture the widest range of shots in the shortest time with aktiv10 combined with flowtech100. With no bowl clamp required, flowtech can go flat to the ground for extreme low-angle shots – using the versatile hinge lock mechanism of flowtech. The system delivers the widest height range. The 2-stage carbon fibre flowtech tripod with high torsional stiffness has unique quick release brakes which can be deployed and adjusted in an instant. Its ergonomic design makes the tripod comfortable to carry, on shoulder or carry handle, no matter where your creativity takes you. flowtech comes with a quick attach rubber foot mechanism. When you are ready to move on, the legs are hold together by a magnetic lock for transportation.

Technical specifications

Range aktiv

Pan bar count 1

Payload 0 tot 12 Kg

Bowl size 100 mm

Weight 6.30 Kg

Spreader type No spreader

Material Aluminium

Transport length 870 mm

Tripod stages 2

Height without spreader 0.25 to 1.72 m

Temperature range -40 to 60 °C

Tilt range 90° to -70°

Sliding range 120 mm

Interface Compatibility Sideload

Counterbalance 15 + 0 counterbalance steps

Drag 7 + 0 drag settings

What's in the box?

aktiv10 fluid head with Sideload plate S and one pan bar DV75 right; flowtech100 tripod with attachment mount; padded bag ENG
