Swit S-8D98 70Wh VW-VBD58 / AG-VBR59 (Panasonic)

Panasonic DVX200/UX90 / UX180 / HC-X1 / EVA1 DV Camcorder Battery Pack

Does not fit Panasonic HC-X1500 / X2000

- Li-ion battery of 7.2V nominal voltage

- For Panasonic AG-DVX200 & AJ-PX270/285

- Comparable to Panasonic VW-VBD58

- Can be charged by Panasonic DE-A88

- Can be charged by SWIT S-3602D

- 70Wh / 9800mAh capacity

- 4-level LED power indicator

- 7.2V Pole-tap DC output

- 5V/1A USB charging output

- Multiple circuit protections

Similar battery for Panasonic VW-VBD58

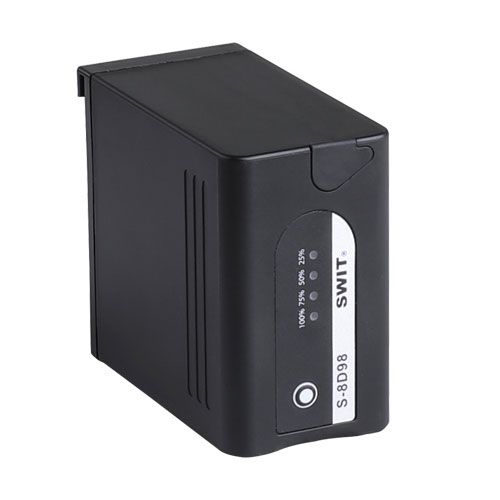

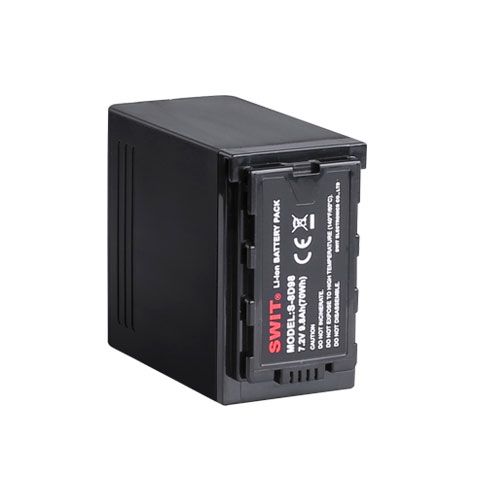

S-8D98 is the replacement battery for Panasonic VW-VBD58, compatible with Panasonic 4K Camcorder AG-DVX200 and P2HD Camcorder AJ-PX270/285.

70Wh/9800mAh Capacity

With 7.2V nominal voltage, the S-8D98 has 70Wh / 9800mAh capacity,and can run approx 3 hours on AJ-PX270 series camcorders when LCD monitor is on.

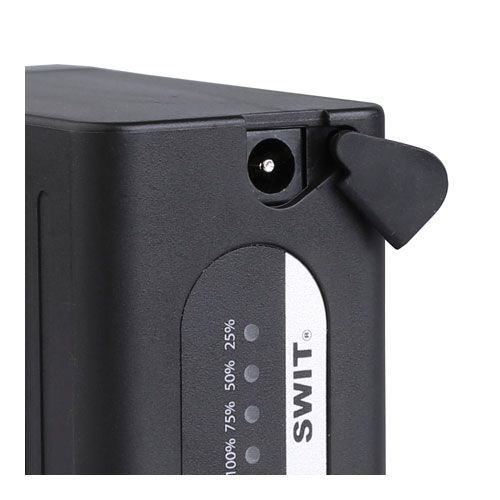

Build-in Pole-tap DC Socket

For DC output or Charging input

A 5.5/2.1mm pole-tap DC output socket is equipped on the S-8D98 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.

The Max power from the pole-tap is 30W, 4A.

The Pole-tap socket can also be used as charging input, by SWIT portable charger S-3010D.

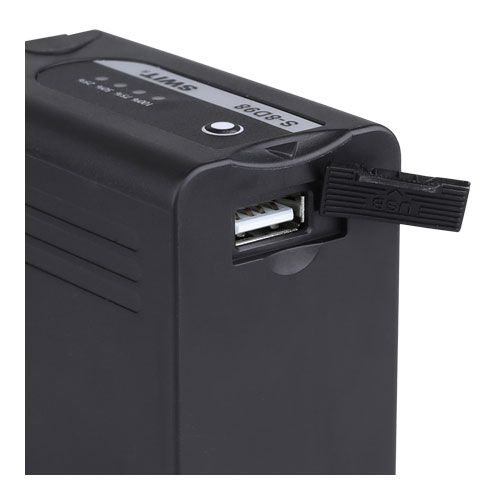

Build-in 5V/1A USB Socket

Use S-8D98 as Power Station to your cell phone!

It’s rather a fantastic function to have a USB socket on the

DV battery!

Connect your smart phone or pad to the USB socket, press the “Check” button, and then the S-8D98 starts to output 5V/1A power to charge your devices!

4-level LED Power Indicator

The S-8D98 battery has the 4-level LED power indicators to check the battery remaining capacity.

You can get a quick view of capacity before using.

Easy Charging

The S-8D98 can be charged on Panasonic original chargerDE-A88, and SWIT also provides the Dual channel charger S-3602D for S-8D98, will take about 6 hours to charge from empty to 100%.

And you can also use SWIT S-3010D Portable Pole-tap Charger for S-8D98. It will take 9.5 hours to fully charge.
