SWIT PB-S146S

Square shape design for Cine-cameras

PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.

146Wh /10.1Ah Capacity

Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 146Wh / 10.1Ah high capacity. Can run approx 5 hours for normal 30W cameras.

High Load for Cine Cameras

At least 200W / 16A load

PB-S146S provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cam- eras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 18A

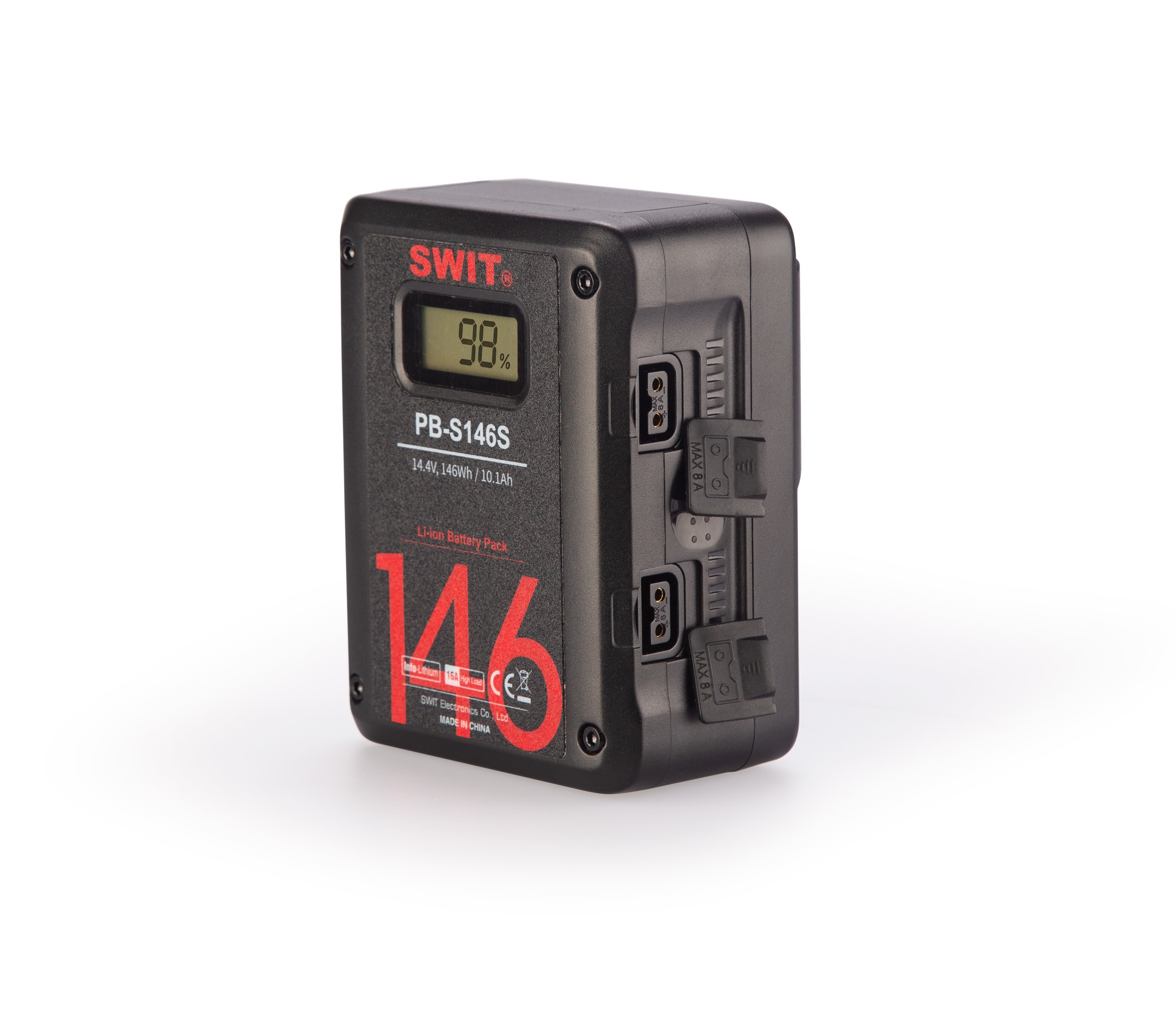

2× D-tap, 1× USB

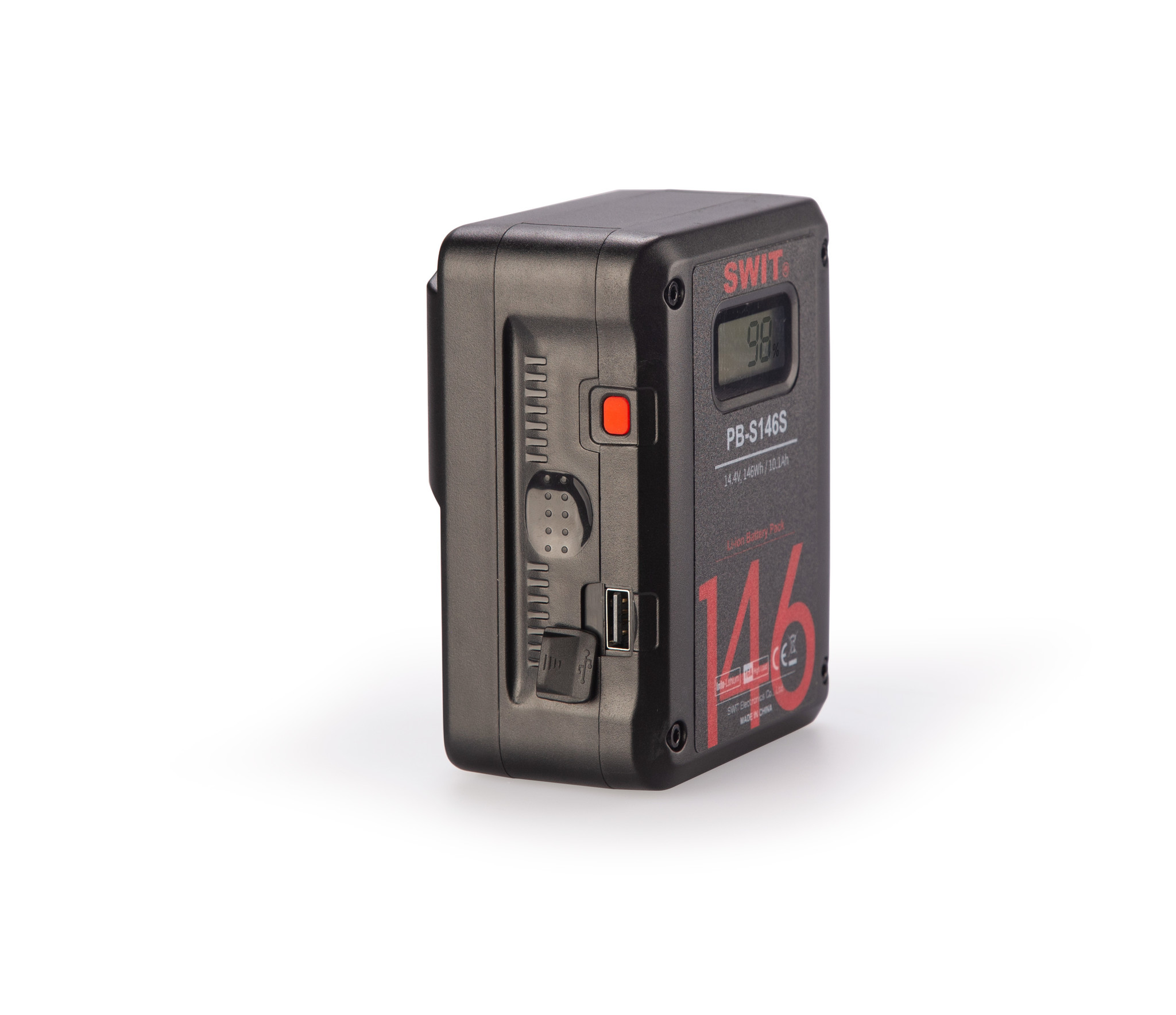

PB-S146S provides 2x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.

Digital Power Info

LCD display accurate remaining run time

The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

LCD warning codes description

P01 - P13: The battery trigger protection function and it can be recovered;
E01 - E03: Not recoverable error, please contact manufacturers to repair, do not disassemble the battery.
When the battery rests over 10 days or runs out of power, it will enter sleep mode and the LCD will not display.

Common battery protection codes:

P01: Run out of power, please charge the battery asap.
P02: Over-voltage when charging, please remove the battery, discharge the battery to decrease voltage to recover.
P03: Over-current when charging, please remove the battery, and it will recover after 30 seconds.
P05-07: The load is too heavy, please remove the battery, and it will recover after 30 seconds.
P08-09: Battery short circuit, please remover the battery and make sure electrodes are clean, and it will recover after 30 seconds.
P10-13: Temperature protection, please remove the battery and place at room temperature to recover.

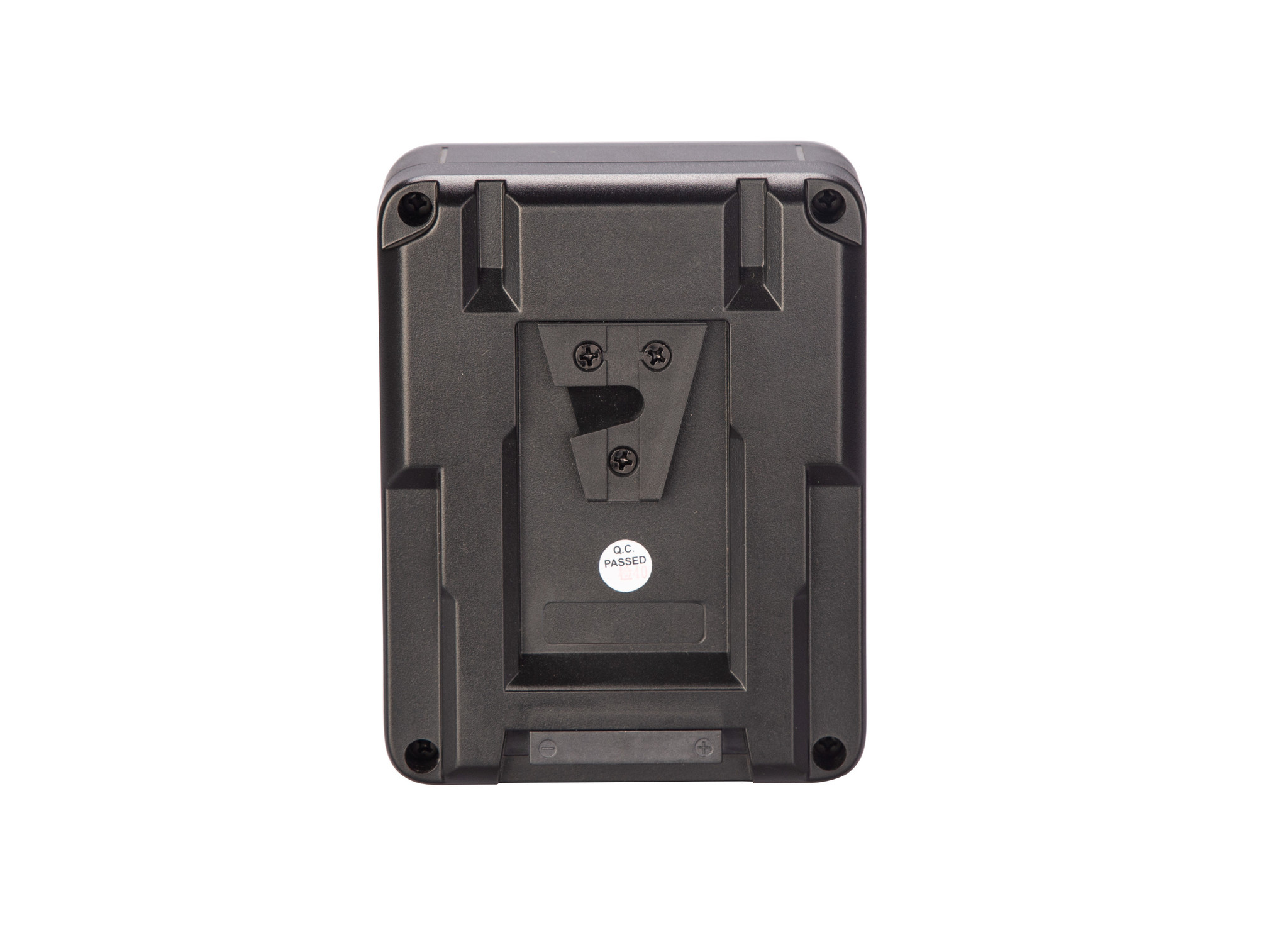

Battery plate V-mount

Nominal voltage 14.4V

Capacity 146Wh, 10.1Ah

Max output In total: 200W

Electrodes: 200W,16A

USB: 10W, 5V/2A

D-tap: 120W / 10A

Dimension 121×95×59mm

Net weight 0.878kg

Max charging current 5A

D-TAP socket number 2

USB socket number 1
