SWIT - HB-C420S 500W High Load 420Wh V-mount Battery

Features

• 8V (22-33.6V) high voltage
• Standard V-mount connection
• 420Wh large capacity
• 500W constant high load, 650W peak load
• 6V 100W fast charging support
• 5-LED digital power indicators
• Multiple circuit protections

Huge V-mount Battery for Lights

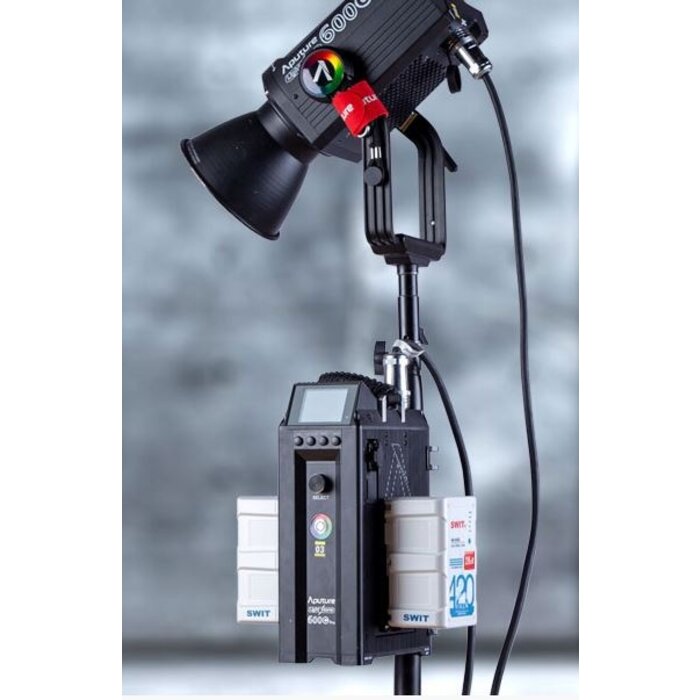

HB-C420S provides the world’s largest capacity: 420Wh of handheld V-mount battery, and the world’s largest constant power load: 500W, to drive high power cine lights at longest time. For example, 2x HB-C420S could power Aputure LS 600C PRO at 100% output, and at least 1.2 hours.

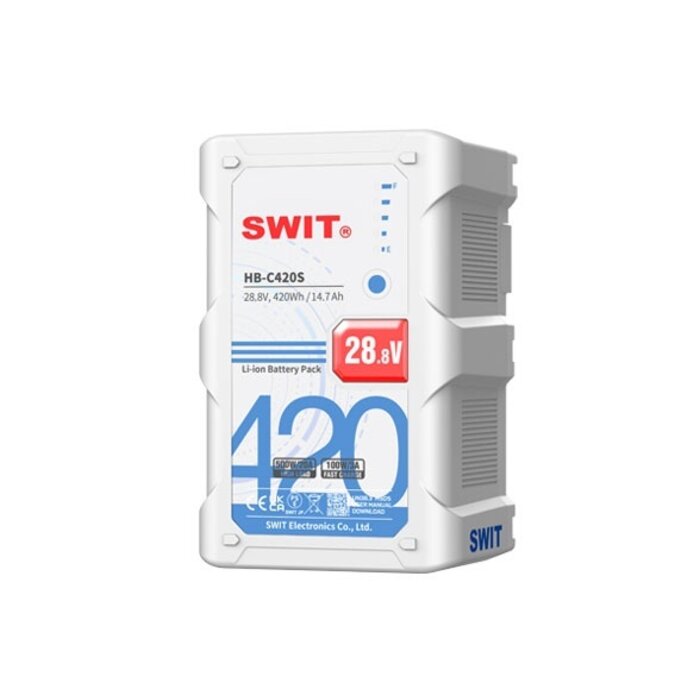

28.8V, 420Wh, 500W Load

HB-C420S consists of 24pcs Li-ion cells, 28.8V (22-33.6V) high voltage, 420Wh large capacity, 500W constant load.

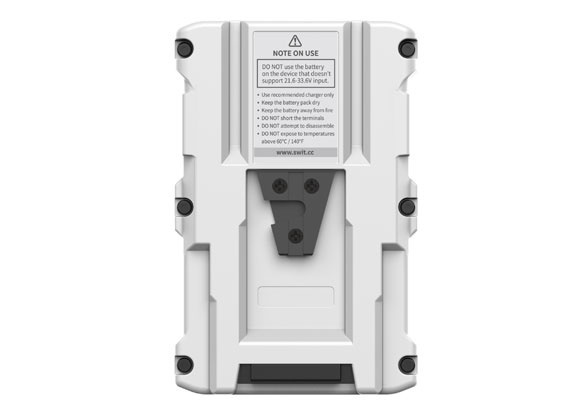

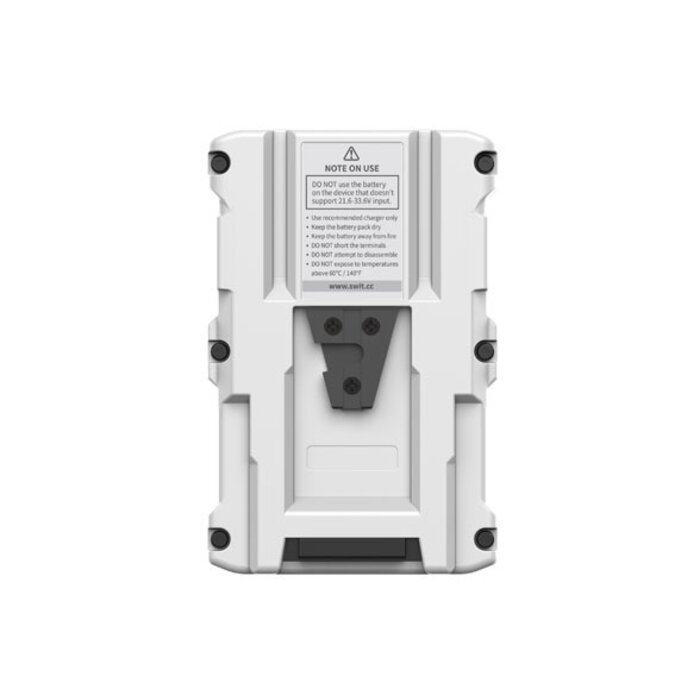

Please do not use the battery on the device that doesn’t support 22-33.6V input.

500W Constant High Load

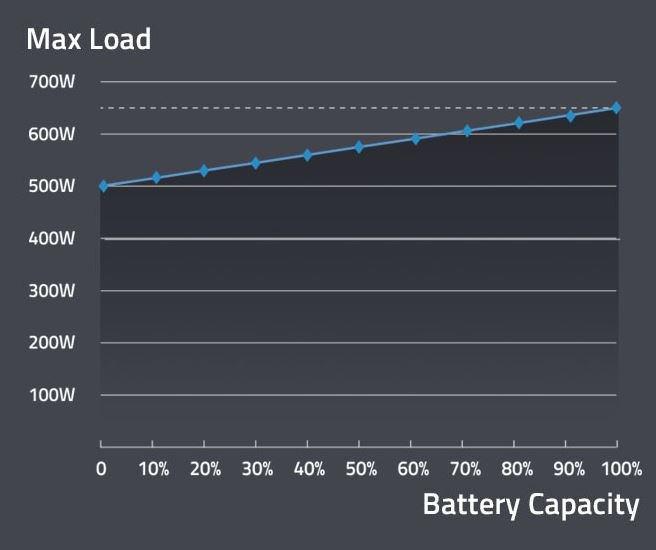

HB-C420S outputs at least 500W high load even at 1% capacity (Peak load up to 650W), to drive high power gears like the cines lights.

48V 750W Power Solution

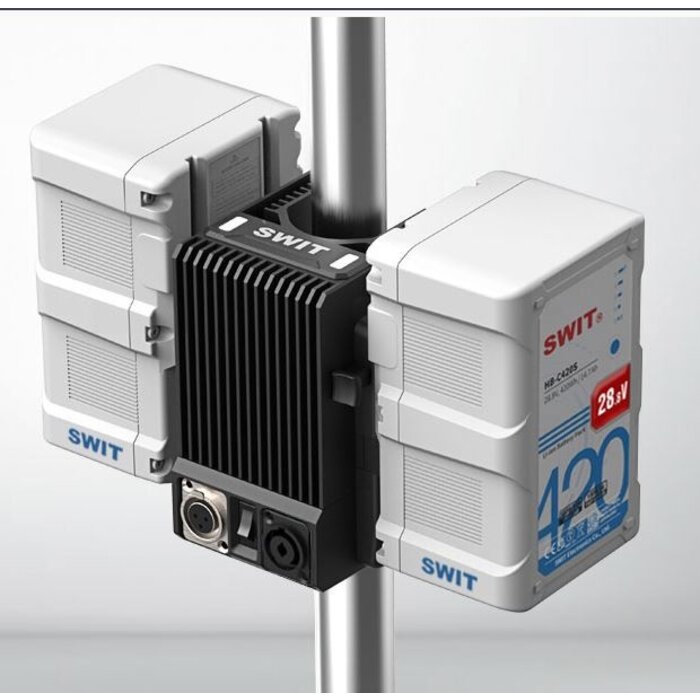

Use SWIT dual batteries light stand adaptor TD-R230S, 2x HB-C420S could output 48V 750W to power cine lights like Skypanel S30/60/120, Orbiter, Creamsource Vortex 4 & Vortex 8, Aputure Nova P300/P600 etc.

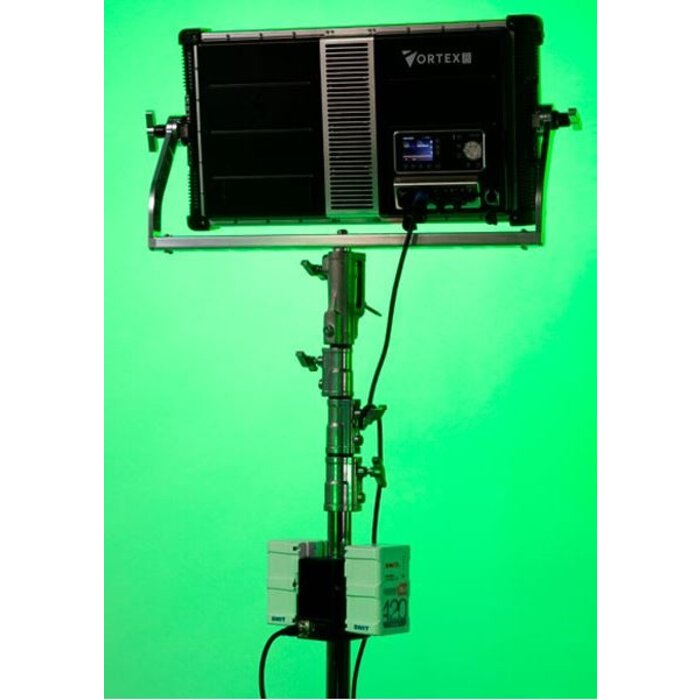

Creamsource Vortex 8 Power

2x HB-C420S and TD-R230S power adaptor could output 48V 750W DC to full power drive Creamsource Vortex 8 light which requires 650W power.
The 2 batteries totally have 840Wh capacity, comparable with a large floor battery but it’s attached on light stand for easy movement, and will power the Vortex 8 for at least 1hr 20min.

100W Fast Charging

HB-C420S supports DC 33.6V 100W fast charging by PC-P461S charger, to save more than 60% charging time. The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours.
