Swit HB-A290B 290Wh 28.8V B-mount Battery

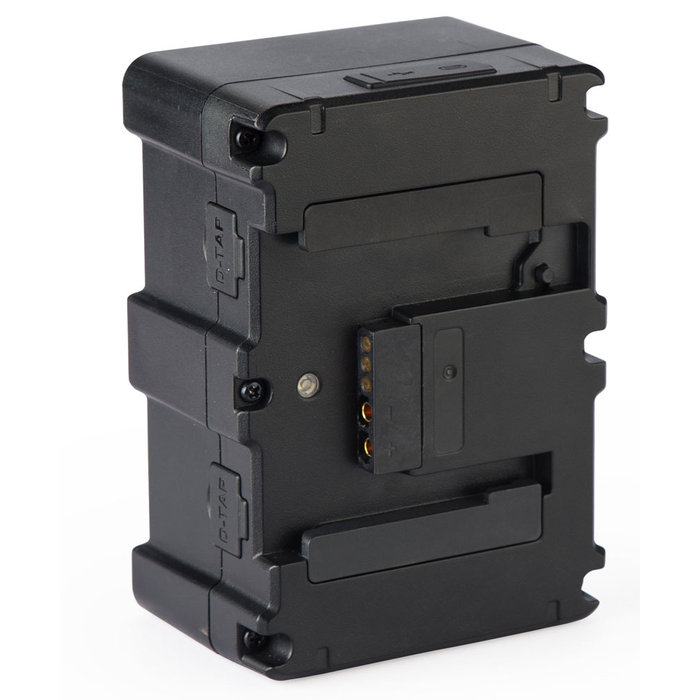

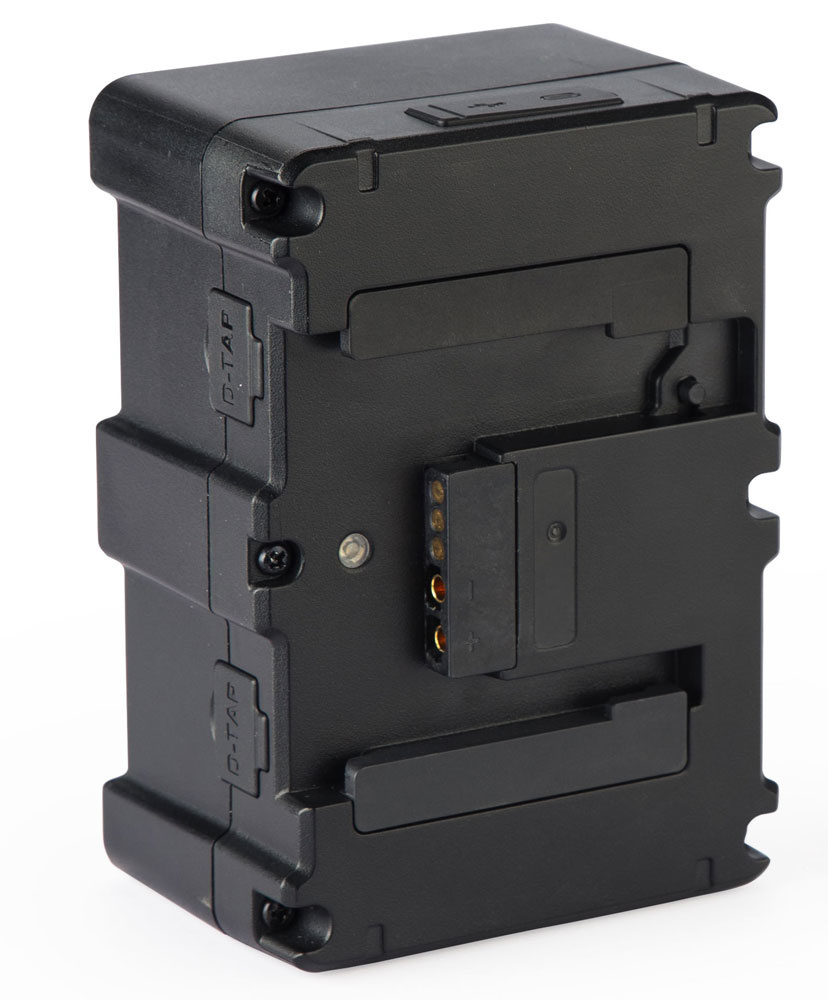

ARRI Standard B-mount Battery
The B-mount battery interface is a new industry standard endorsed by ARRI and the wider industry with high voltage support and reliable lock system.

28.8V for Cinema equipment
The 28.8V (22-33.6V) high voltage matches with all ARRI cameras and lights, and high power cine equipment, it offers a reliable and longer battery life time.

290Wh Large Capacity
The HB-A290B battery has 290Wh / 10.05Ah large capacity, and at least 250W / 10A constant high load for cine cameras and other devices.

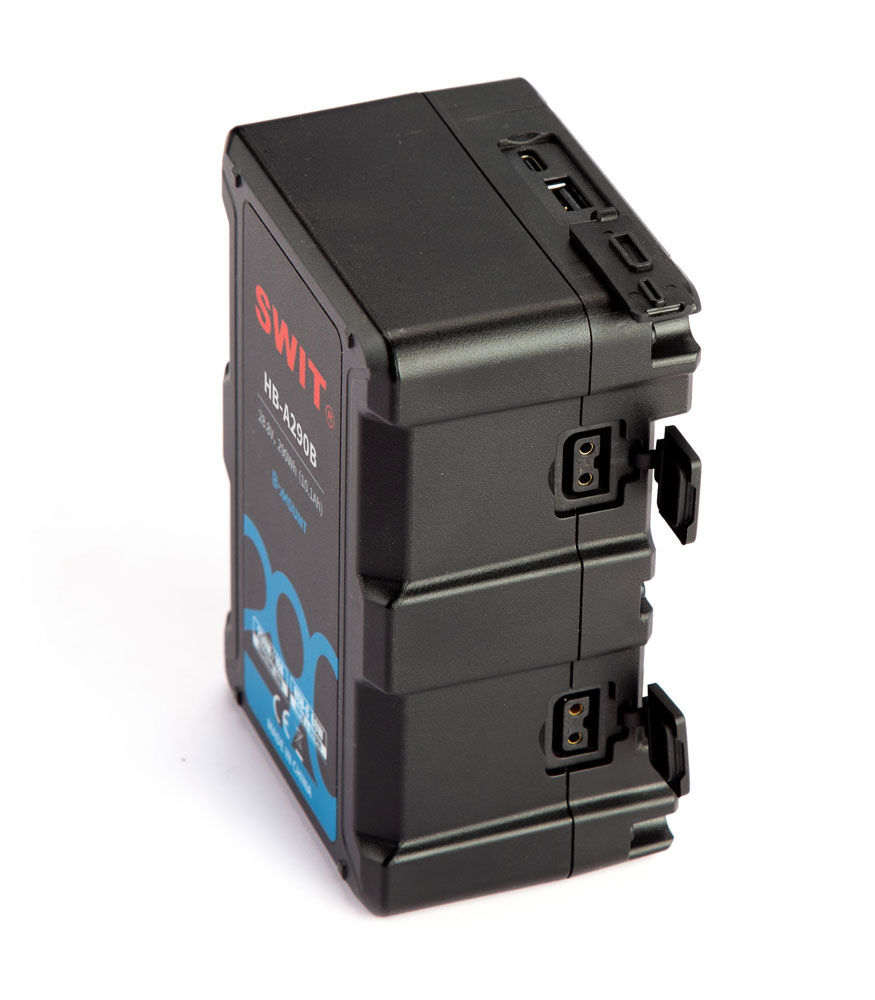

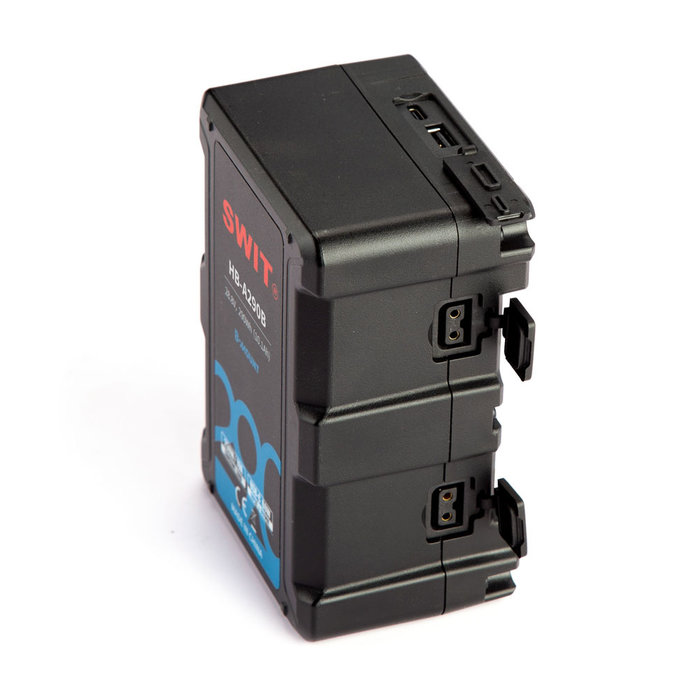

D-tap, USB-A and USB-C
The HB-A290B offers:

2x D-tap of regulated 16V, 60W/3.8A load;

1x USB-A 5V/2A;

1x USB-C 60W input and 60W output.

USB-C 60W Power Output
You can power laptops via USB-C. Supports 5V 3A, 9V 3A, 12V 3A, 15V 3A and Max 20V 3A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports).

USB-C 60W Charging Input
The HB-A290B battery can be charged by USB-C charger, supports PD 15V 3A and 20V 3A, which means you can fully charge the 290Wh battery within 5.5 hours.

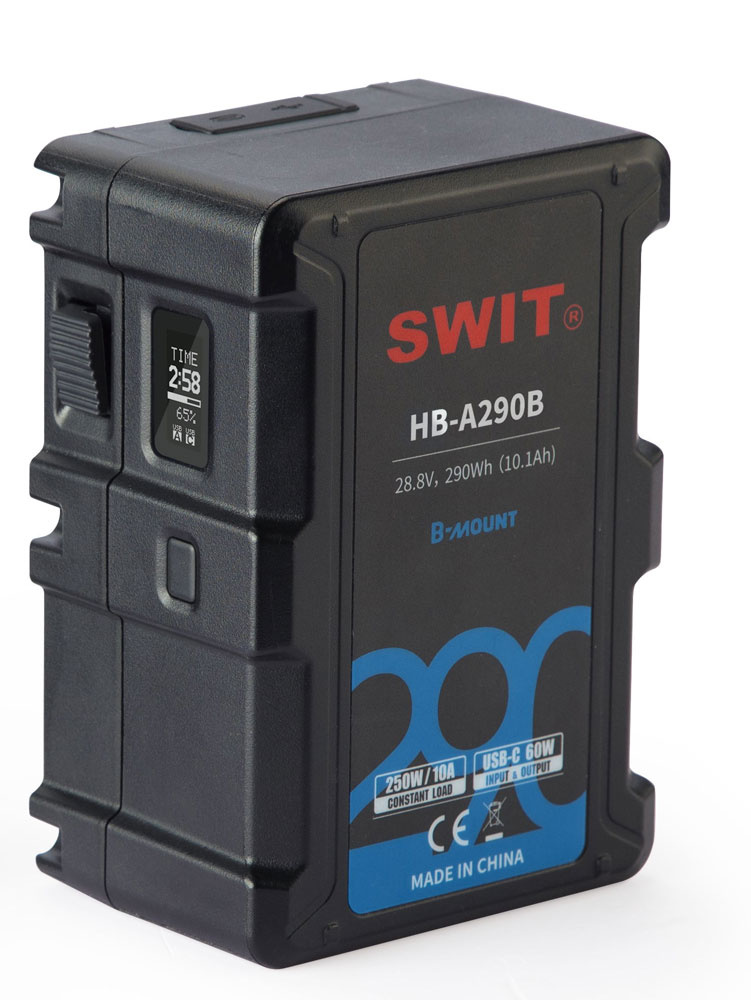

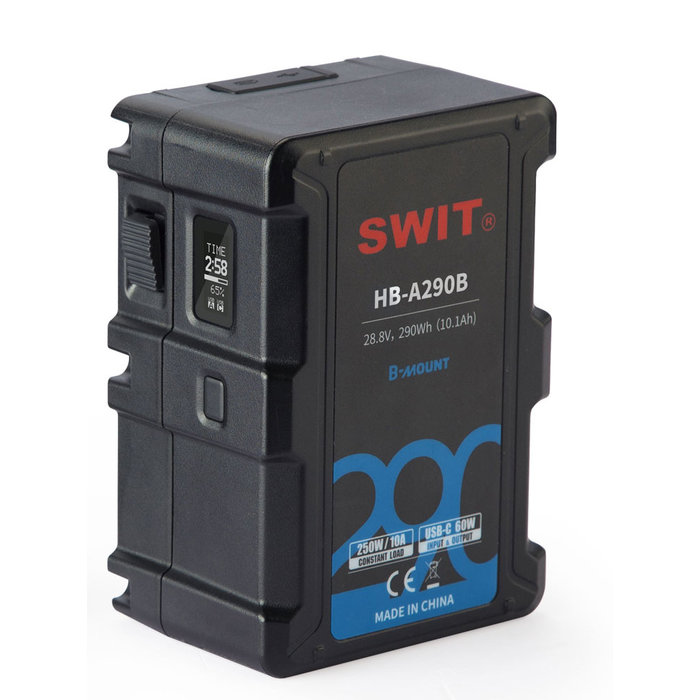

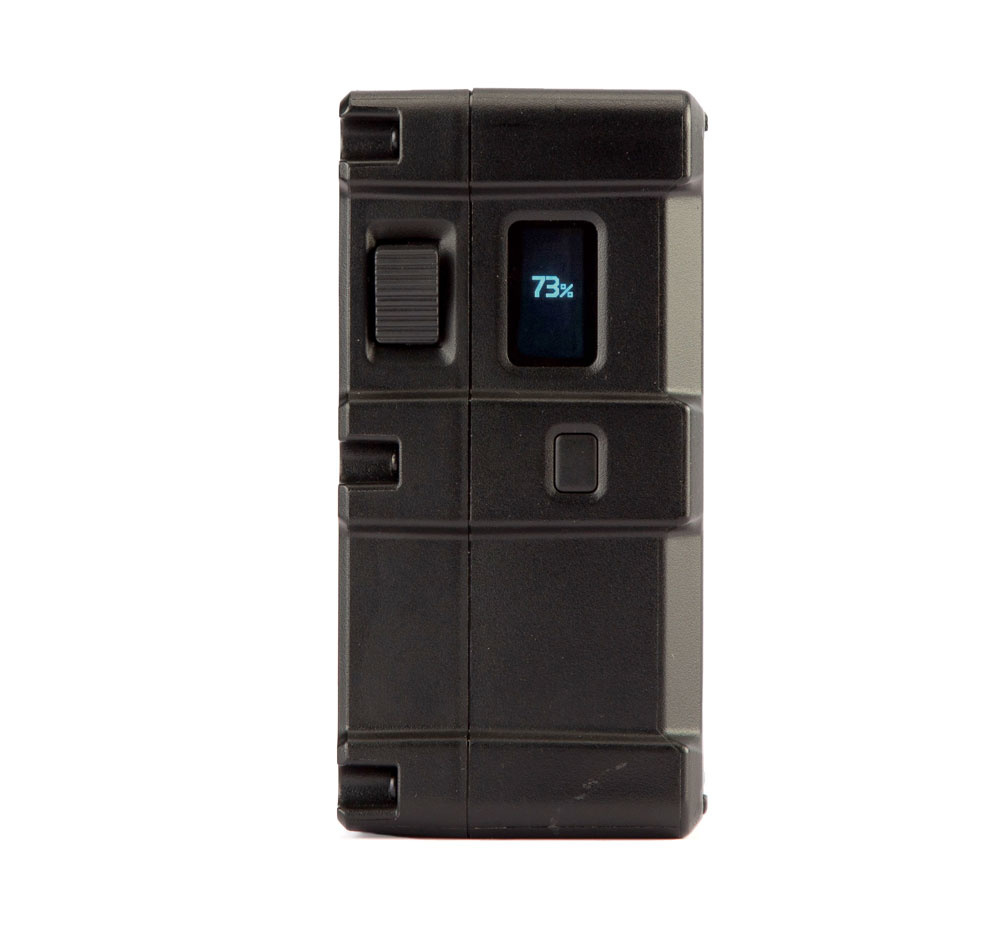

OLED Power Info Display
The HB-A290B battery has an OLED screen to display battery status and power information, includes power percentage, remaining running time, USB-A / USB-C status, and protection warning code if any abnormalities are detected.

100W Super Fast Charging
You can charge 4x HB-A290B simultaneously on the SWIT PC-P461B B-mount charger, at 33.6V 3A, 100W super fast charging. The charger will take approx. 3 hours 50 minutes to fully charge 4x HB-A290B batteries.

LED Flash Light
If you double press the Power Check button it will switch on an LED flash light on the rear side of the battery, to help you to find the B-mount plate in dark environments.
Double press the Power Check button again to switch the light off. It will also automatically switch off after 30 seconds.

1.2 meters Drop-off Proof
The HB-A290B battery can survive a fall from 1.2 meters at any angle.
