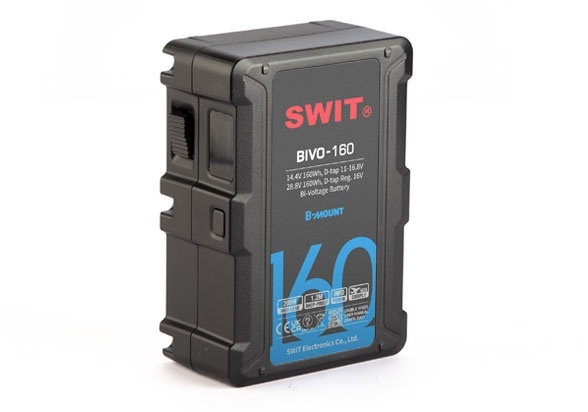

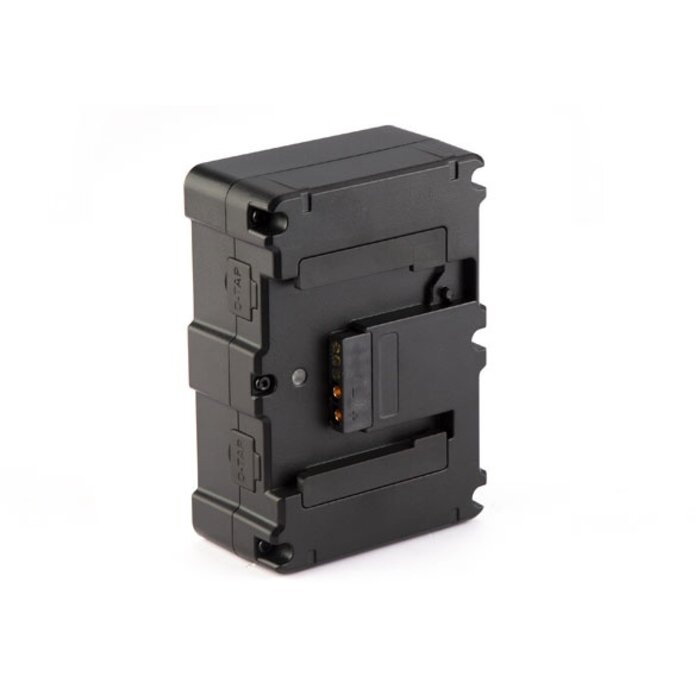

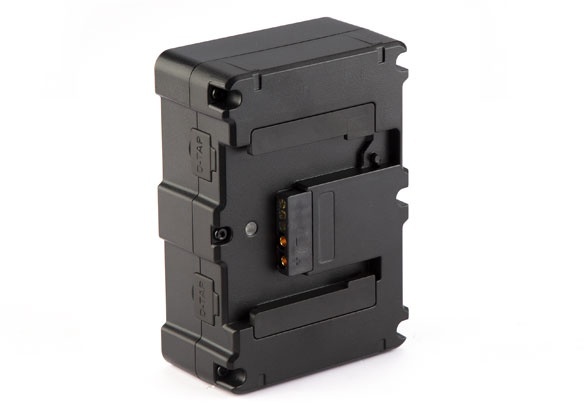

SWIT - BIVO-160 160Wh Bi-voltage B-mount Battery Pack
FEATURES
- 4V/28.8V Bi-voltage B-mount
- 160Wh high capacity
- 200W constant high load
- 6V 100W fast charging
- D-tap 11-16.8V output ×2
- OLED power info display
- Built-in LED torch
- Strong 1.2m drop off proof
- Multiple circuit protections
14.4V/28.8V Bi-Voltage
B-mount Battery
BIVO-160 is a 14.4V(10.8-16.8V) and 28.8V (22-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears. The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.
160Wh Capacity, 200W Load
BIVO-160 battery has 160Wh large capacity, run nearly 2 hours on ARRI ALEXA 35 camera, and each passenger is allowed to carry 2pcs to board airplane. The battery provides at least 200W constant high load for cine cameras and devices.

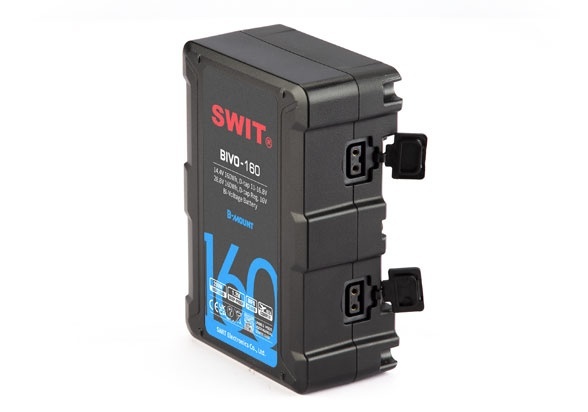

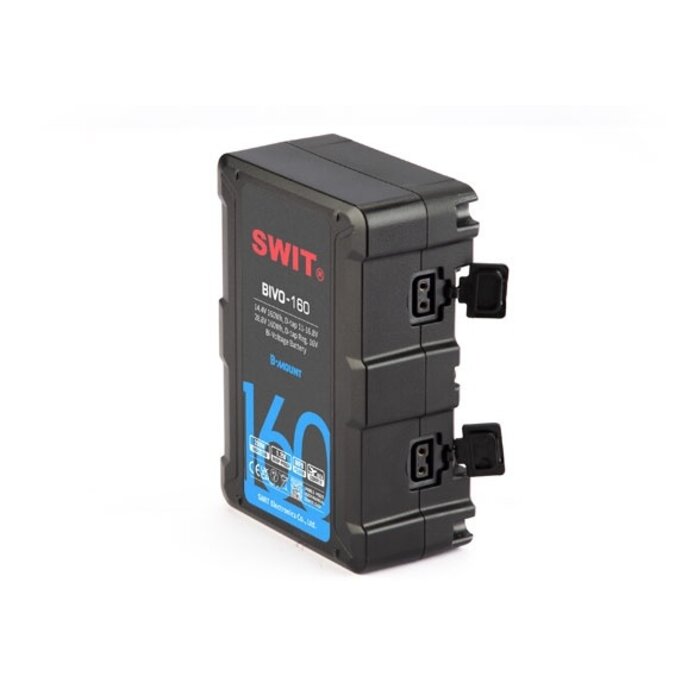

2x D-tap Power Output
BIVO-160 provides with 2x D-tap power sockets.
When the battery works at 14.4V voltage,
the D-tap outputs 11-16.8V;
When the battery works at 28.8V voltage,
the D-tap output regulated 16V,
to power all kinds of camera-top devices.
BIVO Series Family
The BIVO series Bi-voltage B-mount battery famaily has 98Wh, 160Wh, 196Wh, 290Wh, the different sizes and capacities, for stablizer handheld light weight or long time power selection.

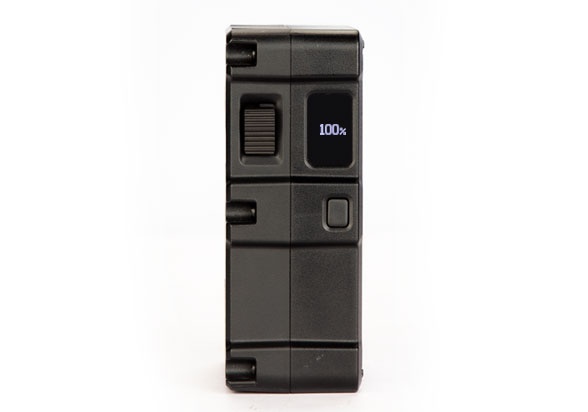

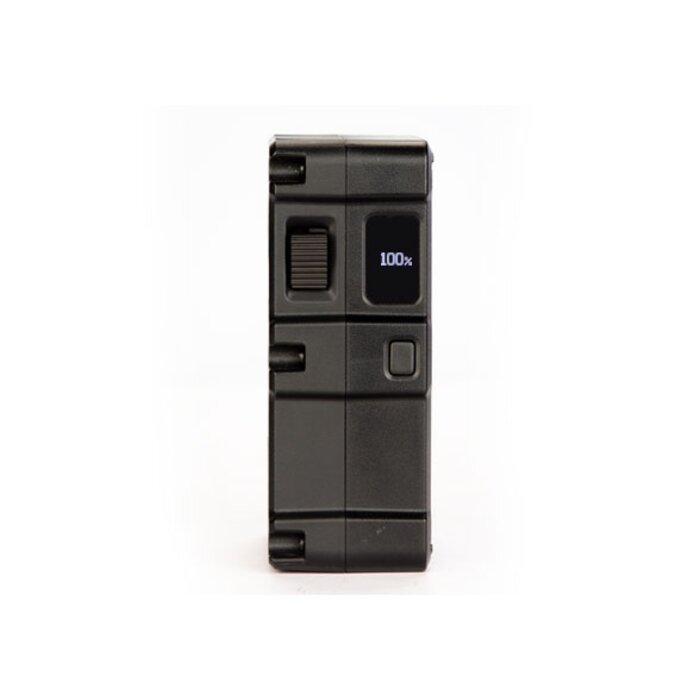

OLED Power Info Display
BIVO-160 battery provides an OLED screen to display battery status and power information, includes output voltage, power percentage, remaining running time, and protection warning code if any abnormal detected.
100W Super Fast Charging
You can charge 4x BIVO-160 simultaneously on SWIT PC-P461B B-mount charger, at 33.6V 3A, 100W super fast charging. The charger will take approx. 2 hours 40 minutes to fully charge 4x BIVO-160 batteries.
ED Torch
You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find B-mount plate in dark production environment.
Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds
1.2 meters Drop-off Proof
BIVO-160 battery can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.
