Swit LB-SU98 - 98Wh voor Sony PXW-FX6 / FX9 / FS7
LB-SU98
Specifications
4.4V nominal voltage Li-ion battery
Compatible with SONY BP-U batteries
Display remaining power info in camera
98Wh / 6.8Ah capacity
Built-in 14.4V D-tap output / Charging input
Built-in 5V/2A USB output
4-level LED power indicator
Multiple circuit protections
SONY BP-U type Battery
LB-SU98 is the replacement battery for Sony BP-U60, compatible with SONY Camcorder PXW-FX9 / FS7 / FS5, PXW-Z280 / Z190 / X280.
98Wh / 6.8Ah High Capacity
With 14.4V nominal voltage, the LB-SU98 has 98Wh / 6.8Ah capacity, and can run approx. 3 hours on SONY PXW-FX9 camera.
Built-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the side of LB-SU98 battery, for DC14.4V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the D-tap socket, and get power simultaneously with camera. The Max power from D-tap is 70W, 6A.
The D-tap socket can also be used as charging input, by SWIT portable charger PC-U130B/B2.

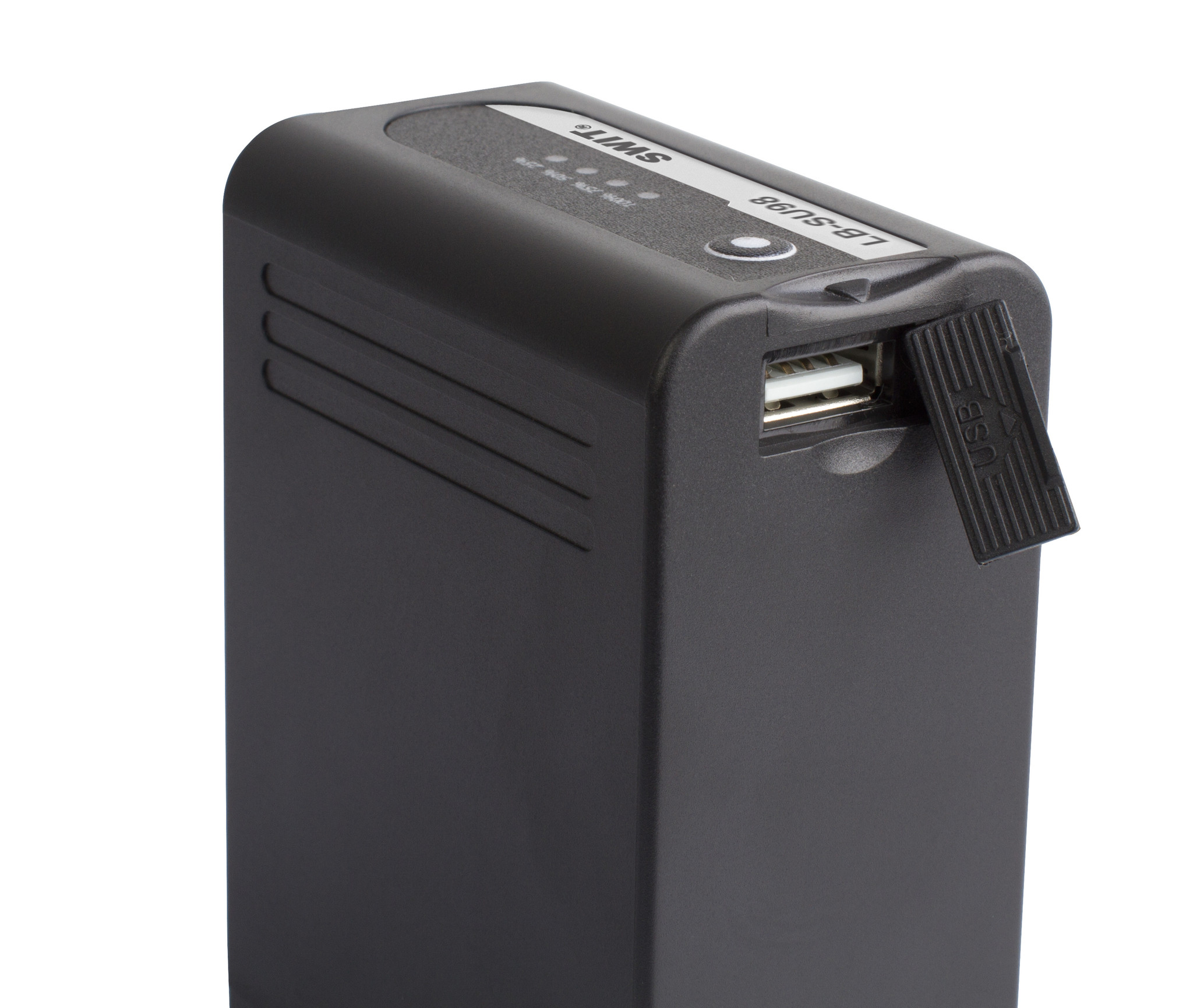

Built-in 5V/2A USB Socket
Connect your USB devices like smart phone or pad to the USB socket of LB-SU98, press the power check button, and then the battery will start to output 5V/2A power to charge your devices.
LED Power Indicator
The LB-SU98 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using. The power check button can also be used to trigger USB charging.
Easy Charging
The LB-SU98 can be charged on SWIT 2-ch charger S-3602U or 4-ch charger LC-D421. And you can also use SWIT PC-U130B/B2 Portable D-tap Charger for LB-SU98.
By S-3602U/LC-D421 will take about 4 hours and 30 minutes to charge from empty to 100%.
By PC-U130B/B2 will take 2 hours and 50 minutes to fully charge.
Nominal Voltage
14.4V
Capacity
98Wh, 6.8Ah
Max output power
Total: 70W, 6A
Pins: 70W, 6A
D-tap: 70W, 6A
USB: 5W, 2A
Compatible cameras
SONY PXW-FX9
SONY PXW-Z280, Z190
SONY PXW-FS5, FS7
SONY PXW-X280
Dimension
70×42×96mm
Net weight
Approx 427g
