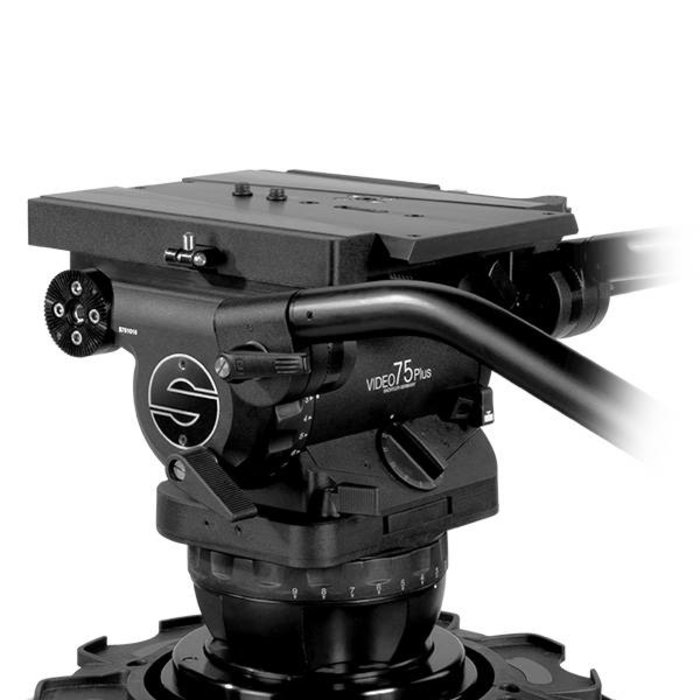

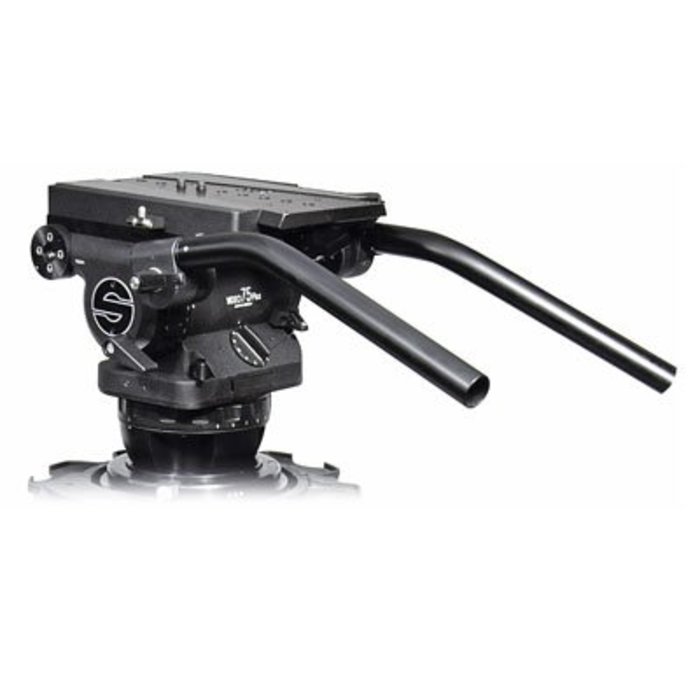

Sachtler Fluid Head Video 75 Plus Studio (7501)
The multi-talent for studio operation.
It comes with a threaded connection for a teleprompter bracket, and a maximum load capacity of 85 kg. It's a real all-round talent for the studio and ENG.
The Video 75 Plus Studio boasts a outstanding payload range of 12 to 85 kg / 25 to 190 lb. Suitable for a variety of camera configurations and flexible applications in both EFP and studio operation, this all-round talent offers users a broad palette of solutions.
The Video 75 Plus Studio displays an 24 step plus Boost Button counterbalance which can be adjusted easily and safely in 12 stages with the well known Sachtler dial. Fine-tuning is achieved via a half step function, which can either be engaged or disengaged. And for even more precise adjustment the balance plate has a sliding range of up to 120mm / 4.7", and up to 145mm / 5.7" for the studio version. This allows you to safely balance the camera at any tilt angle.
The Video 75 Plus Studio fluid head has a modular design, allowing you to change it for different applications. Various configuration options are available like; 150mm Ball Base with the Touch & Go quick release system and camera plate 35 wedge or Flat Base with the V-shaped wedge plate, or you can even mount it on a Mitchell Mount base.
Sachtler Fluid Head Video 75 Plus Studio
Weight: 14.6 kg
Payload: 12 – 85 kg
24 counterbalance steps + boost button
9 horizontal and vertical grades of drag, +0
Tilt range: +80º to -60º
Slide range: 145 mm
Temperature range: -40º – 60ºc
Camera fitting: V Plate
Head fitting: Flat base
Pan bar type / number: 2 pan bar front sections
Level: Illuminated
Adapter viewfinder extension: Optional
