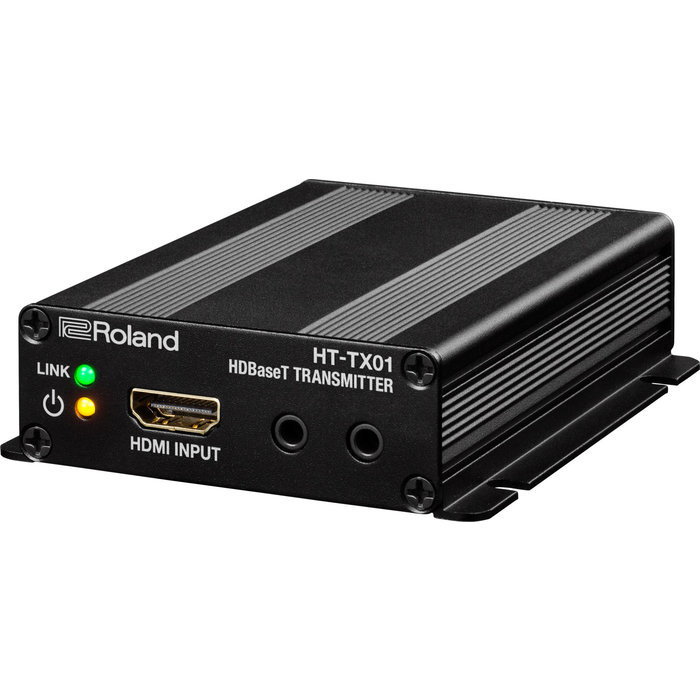

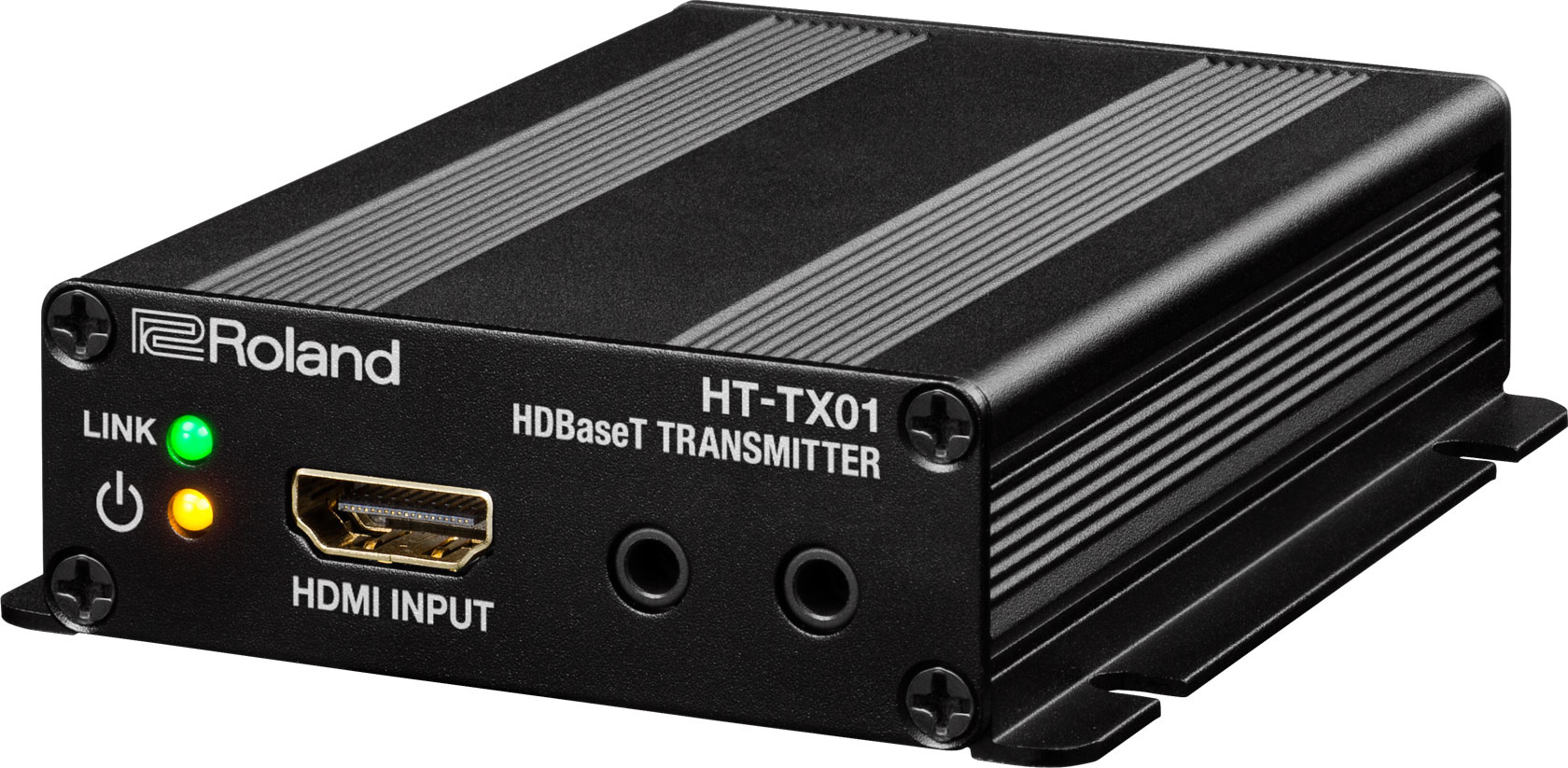

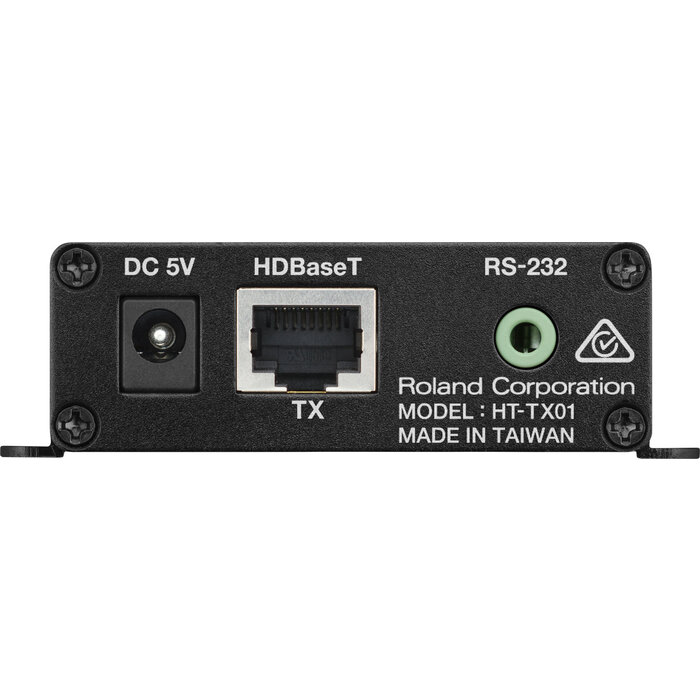

HT-TX01 - HDBaseT Transmitter
HDBaseT-compatible transmitter capable of transmitting HDMI signals up to 100 meters over an Ethernet cable.
FEATURES
- Converts HDMI input to HDBaseT signals
- Maximum 1080/60p and WUXGA support for HDMI
- HDCP compliant
- Capable of RS-232C transmission
Roland HDBaseT Transmitter
Roland HD BaseT solutions empower the sharing of ideas in huddle & meeting rooms and supports AV installations with simplified distribution of the presenter’s computer to a video switcher or a digital projector hundreds of feet away.

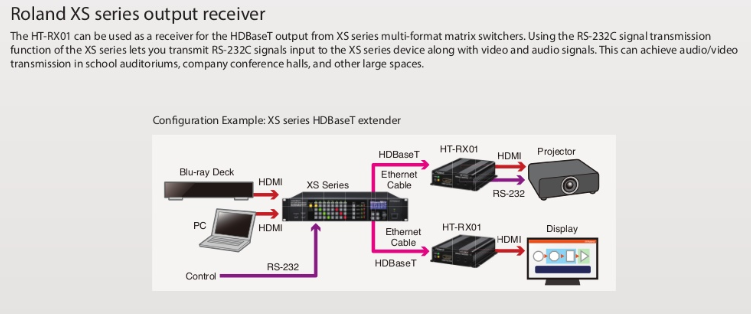

Long-distance HDMI distribution

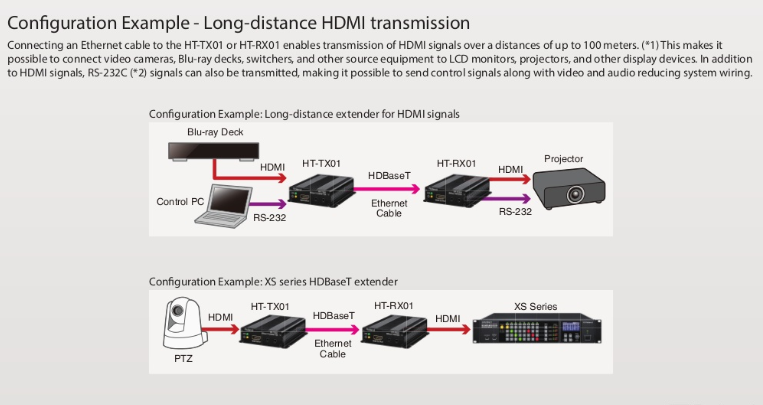

Pair the Roland HT-TX01 Transmitter with the Roland HT-RX01 Receiver to convert and transmit uncompressed High Definition HDMI video, audio and RS-232 control up to 100 meters using industry standard Cat5e cable.
SPECIFICATIONS
Input Formats
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
*RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.
*The maximum refresh rates of RGB is 75 Hz. (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 60Hz)
*1920 x 1200/60Hz : Reduced blanking
Audio Formats
The maximum is PCM 8ch, Dolby Digital, True HD DTS-HD Master Audio
Input Connectors

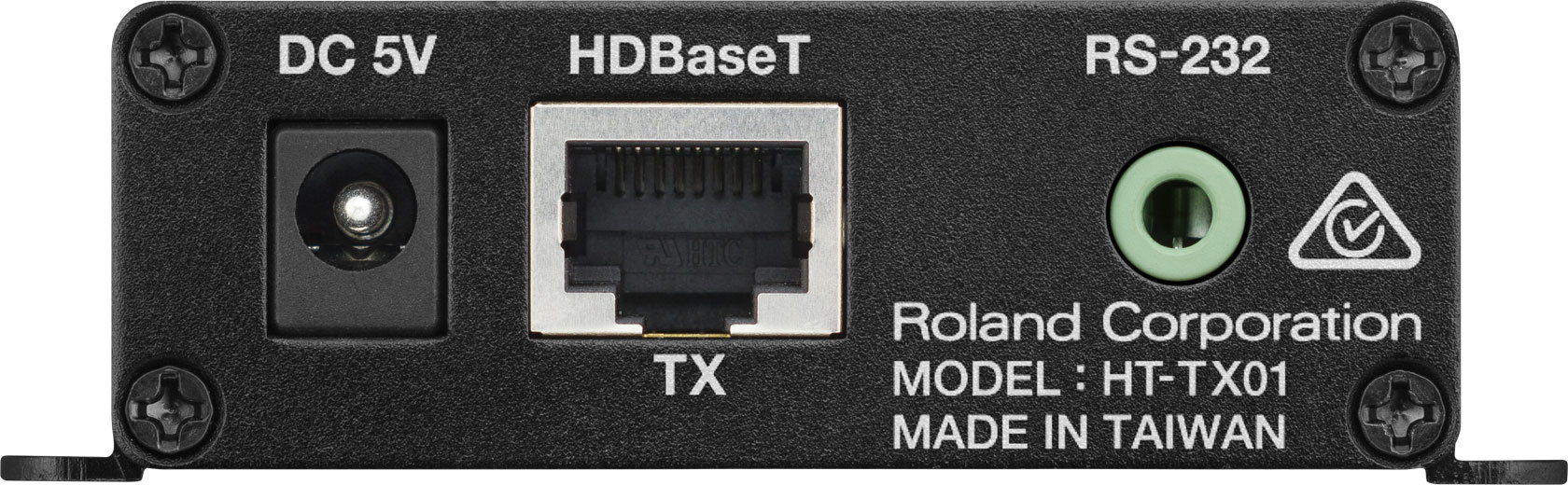

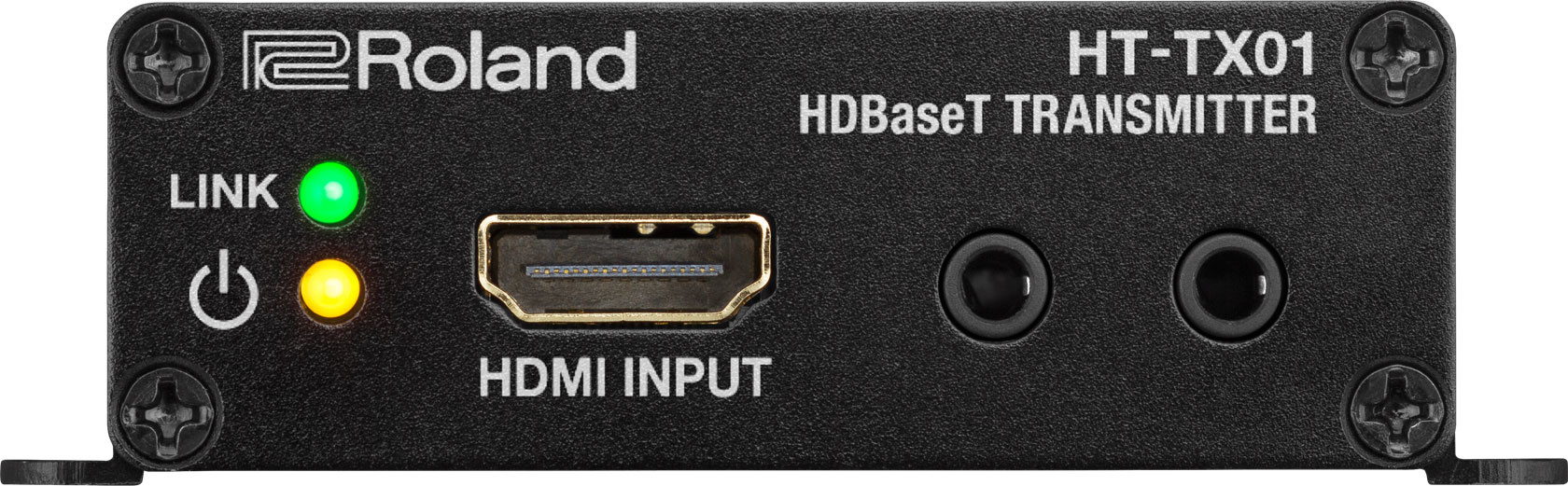

HT-TX01: HDMI x 1 : Type A 19 pins
HT-RX01: RJ45 x 1
Output Connectors

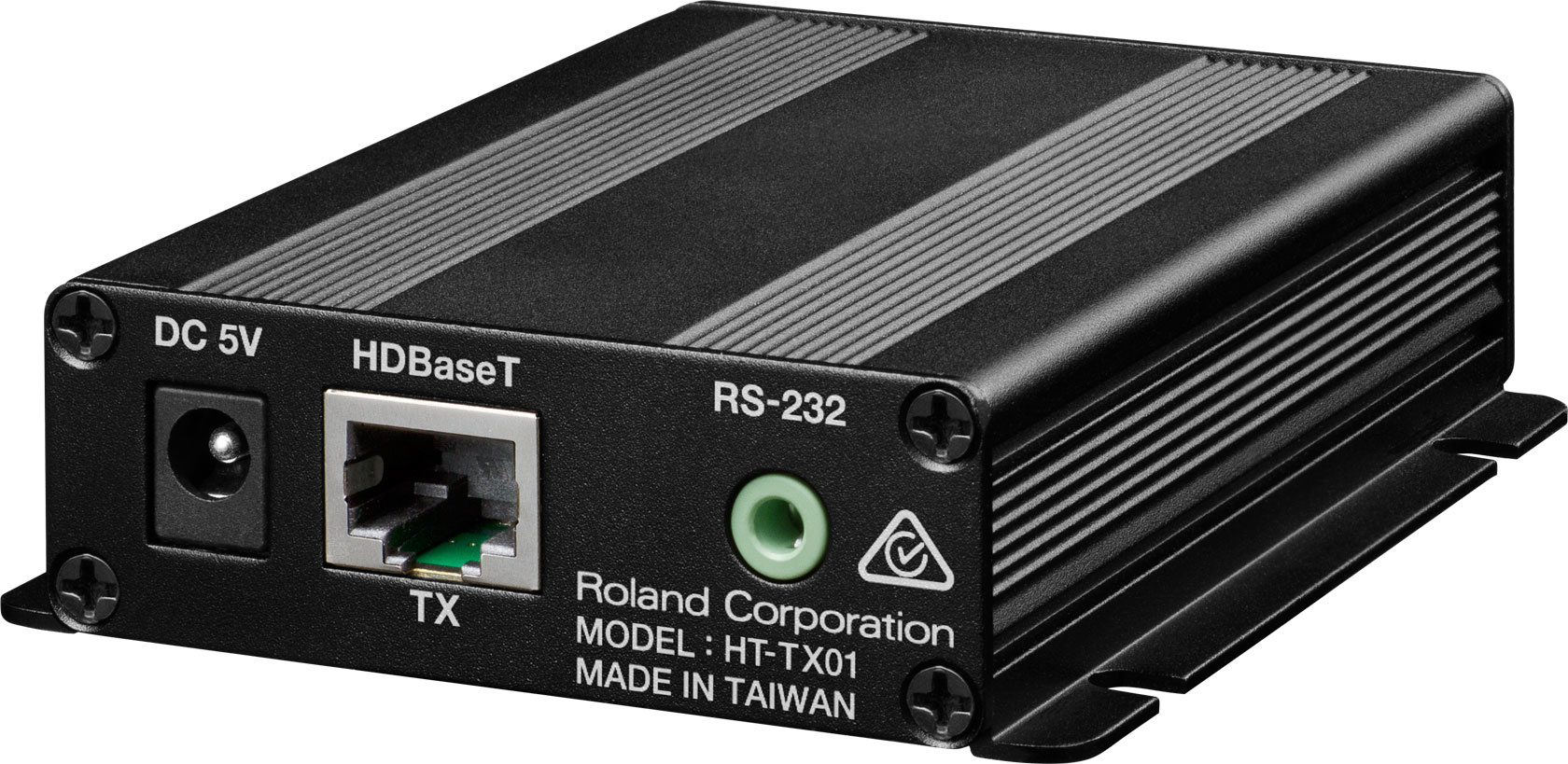

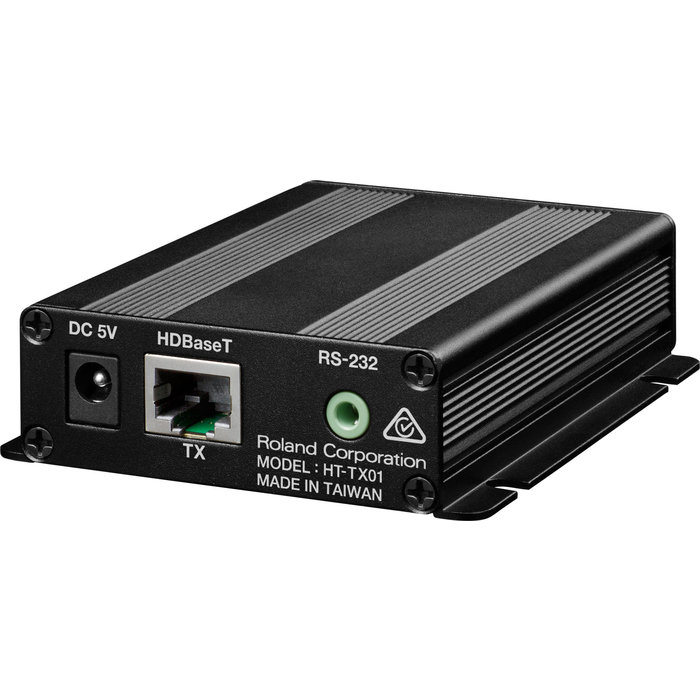

HT-TX01: RJ45 x 1
HT-RX01: HDMI x 1 : Type A 19 pins
Other Connectors
RS-232 x 1 : 9 pins D-sub type
*when using additional RS-232 cable
Transmission distance
The maximum is 100m (328 ft)
*To make connections, use a Cat 5e (Category 5e) or later shielded LAN cable.
*The available distance depends on the quality of the LAN cable.
Operating temperature range
0 to 40 degree C
32 to 104 degrees F
Operating temperature humidity
10 to 85 % (no condensation)
Storage temperature range
20 to 60 degree C
4 to 140 degrees F
Storage temperature humidity
10 to 85 % (no condensation)
Current Draw
2 A
Power Supply
AC Adaptor

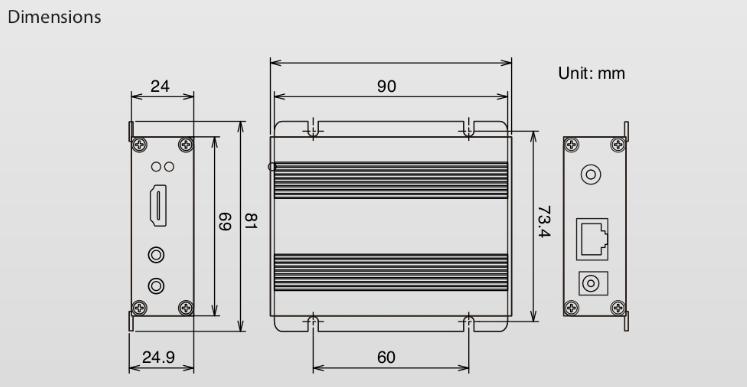

Dimensions
81 (W) x 93 (D) x 24 (H) mm
3-3/16 (W) x 3-11/16 (D) x 1 (H) inches
Weight excl. AC adaptor
300 g
11 oz
Accessories
AC adaptor
AC plugs (3 types)
RS-232 conversion cable (2 m (6 ft 6 inches))
ferrite core x 3
Owner's Manual
SIZE AND WEIGHT
Width
81 mm
3-1/4 inches
Depth
93 mm
3-11/16 inches
Height
24 mm
1 inches
Weight
300 g
0 lbs. 11 oz.
