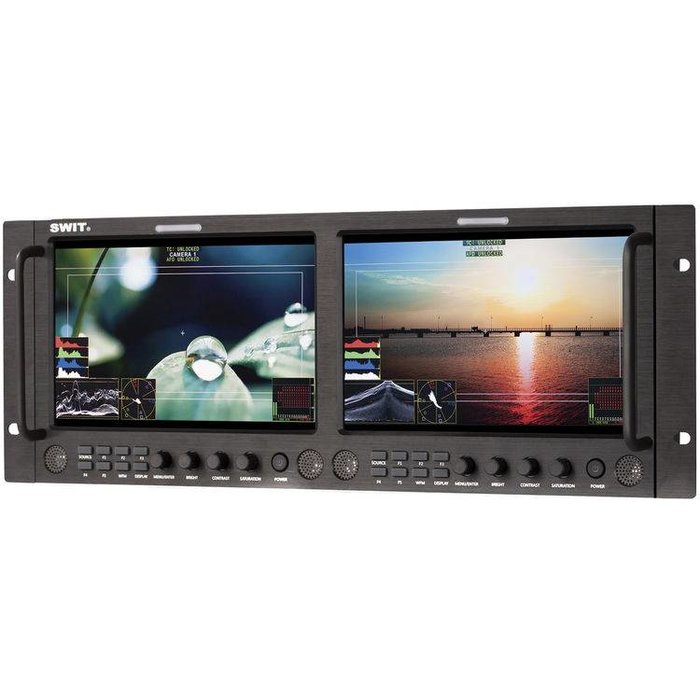

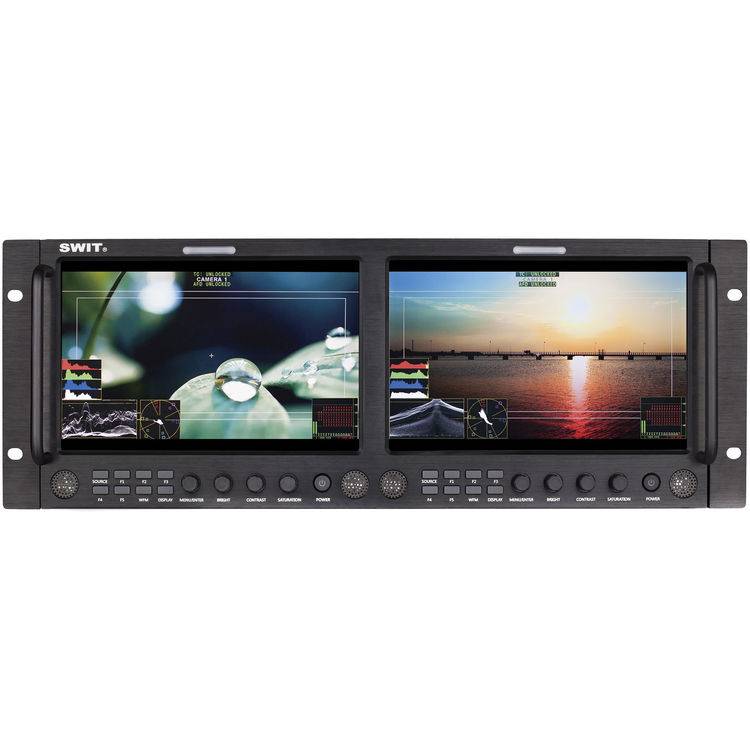

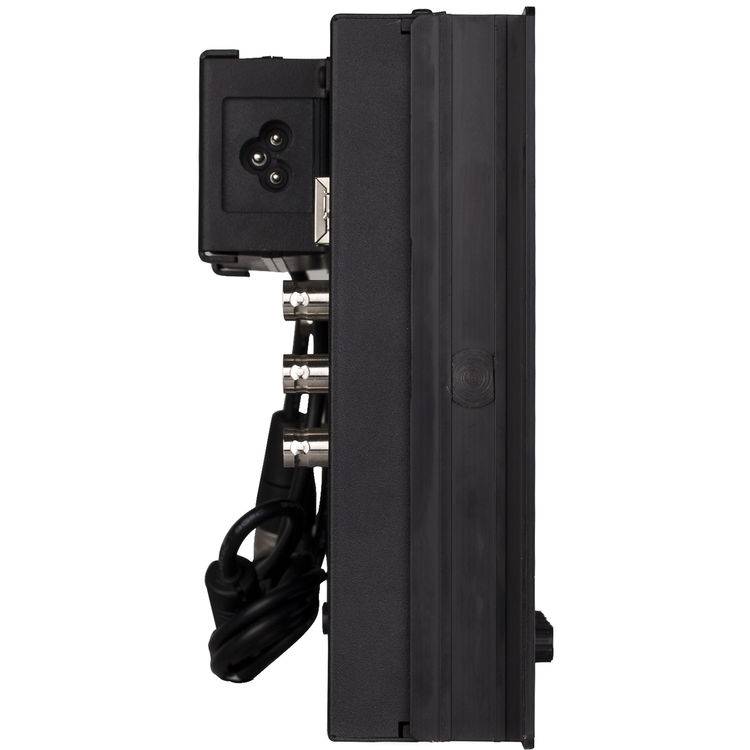

SWIT M-1093F Dual 9-inch Full HD SDI/HDMI Rack LCD Waveform Monitor
The M-1093F Dual 9" FHD Waveform Rack LCD Monitor from SWIT features two 9" IPS (In-Plane Switching) LCD panels, with Full HD 1920 x 1200 resolution, LED backlight, 800:1 contrast, and the viewing angle is 170°/170°. The monitor supports built-in HDMI to SDI conversion and also features an SDI loop output port. It supports 6.5 to 24 VDC input.
Features
Dual 9" IPS LCD panel
1920 x 1200 resolution, 800:1 contrast
19" 4U rack mounting, ±30° rotatable
2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
16-channel embedded audio meters with alert
Select any 2 audio channels to output
Waveform Y/Cb/Cr/R/G/B and single line
Vectorscope, histogram R/G/B/Y
AFD, H/V delay, R/G/B/Mono, false color
TSL UMD and text Tally display
Zebra stripes and peaking focus assist
SDI timecode display
Marker 4:3, 13:9, 15:9, 1.85:1, 2.35:1
Tally light and GPI control
USB firmware upgrade
Specifications

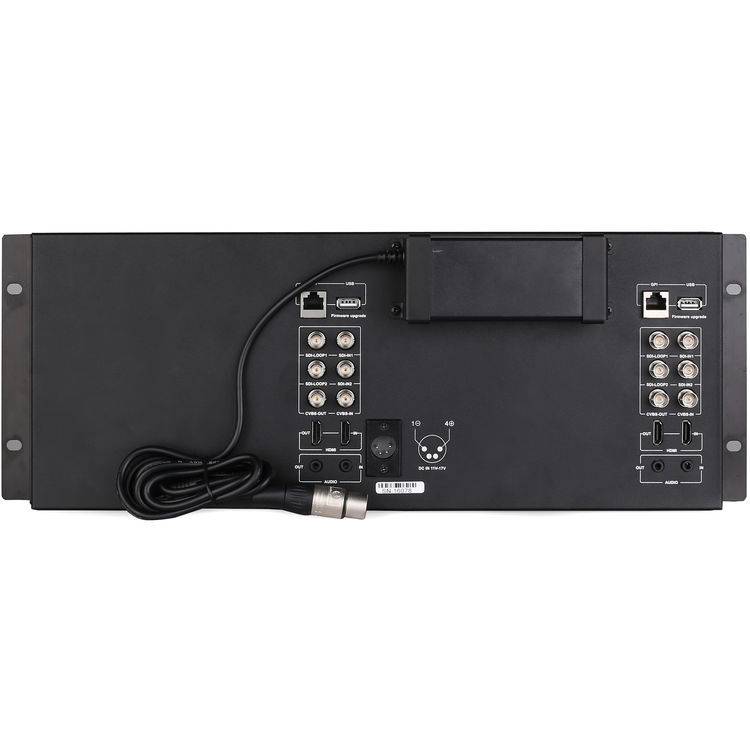

LCD Performance | ||
Size | 9 inches ×2 | |
Display area | 191.52×119.70mm | |
Resolution | 1920×1200 | |
Aspect ratio | 16:9 (4:3 adjustable) | |
Brightness | 450cd/m2 | |
Contrast | 800:1 | |
Color | 16.77 million colors | |
Viewing angle | Horizontal: 170°; Vertical: 170° | |
Input (Each LCD) | ||
BNC ×2 | 2K/3G/HD/SD-SDI input ×2 | |
BNC ×1 | Composite input | |
HDMI ×1 | HDMI input | |
3.5mm ×1 | Analog audio input | |
Output (Each LCD) | ||
BNC ×2 | 2K/3G/HD/SD-SDI loop output | |
BNC ×1 | Composite loop output | |
HDMI ×1 | HDMI loop output | |
3.5mm ×1 | SDI, HDMI, Analog audio output | |
Video Format | ||
CVBS | NTSC∕PAL | |
SDI | SMPTE 2048-2 | 2048×1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60) |
2048×1080i (50 / 59.94 / 60) | ||
SMPTE-425M | 1080p (60 / 59.94 / 50) | |
SMPTE-274M | 1080i (60 / 59.94 / 50) | |
1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
SMPTE-RP211 | 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
SMPTE-296M | 720p (60 / 59.94 / 50) | |
SMPTE-125M | 480i (59.94) | |
ITU-R BT.656 | 576i (50) | |
HDMI | 480i/ 576i / 480p / 576p | |
1080i (60 / 59.94 / 50) | ||
720p (60 / 59.94 / 50) | ||
1080psf (30 / 29.97 / 25 / 24 / 23.98) | ||
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | ||
General | ||
Working voltage | DC / battery 6.5V-24V | |
Power consumption | ≤36W | |
Working temperature | 0°C～+40°C | |
Working humidity | 10%～90% | |
Storage temperature | -15°C～+60°C | |
Storage humidity | 10%～90% | |
Dimensions | 484×177×112.8mm | |
Net weight (main body) | 2.8kg | |
