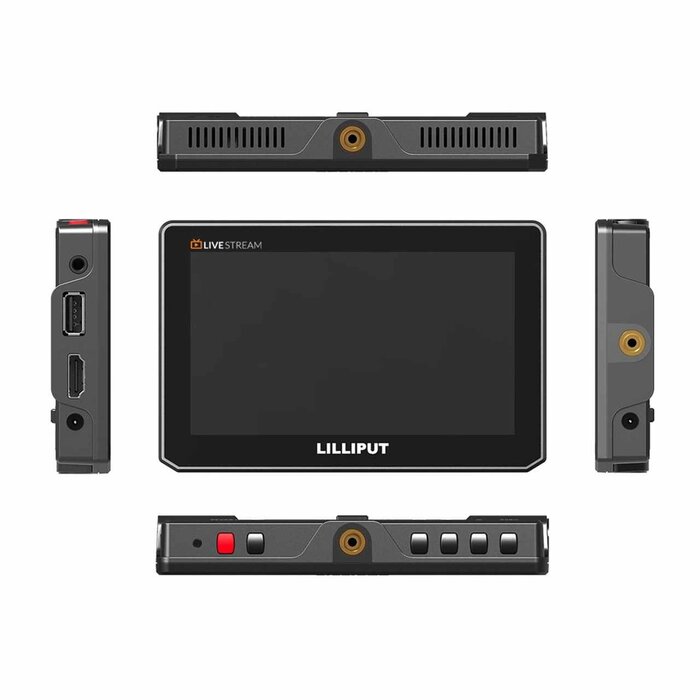

Lilliput T5U 5" Livestreaming On-Camera Touchscreen Monitor

Livestream your next production while simultaneously monitoring it with the T5U 5" Livestreaming On-Camera Touchscreen Monitor from Lilliput, a compact 5" IPS 1920 x 1080 display packed with features, including the ability to livestream without the need for other devices. The HDMI 2.0 input supports up to DCI 4K60, and the monitor automatically displays in Full HD with a brightness of 400 nits and a 1000:1 contrast ratio on its user-friendly capacitive touchscreen. A USB port allows you to send a live feed up to 1080p to a computer, as well as load LUTs and perform firmware updates.

When the monitor is connected to a computer, your livestreaming software will recognize it as it would with a webcam, giving you the flexibility to stream to any desired platform, such as Skype, Facebook, YouTube, Twitch, Periscope, Zoom, and many more. The wide color space support includes 98% DCI-P3 and 131% Rec.709, with 17 default 3D-LUT modes available onboard and up to six user LUTs that can be loaded into the unit via USB. A dual-purpose mounting plate handles both Canon LP-E6 and Sony-type NP-F series batteries, and a sun hood and shoe mount adapter are included.

Two-Finger Zoom

The touchscreen function supports two-finger zoom-in and zoom-out of the image.

Multiple False Color Modes

Default, Spectrum, ARRI, and RED modes are supported.

Interchangeable Battery Plates

L-Series and LP-E6 type battery plates are included.

Mounting Options

A 1/4"-20 mounting thread accommodates the included ball shoe mount.

Monitoring Tools

Analyze the incoming video signal with built-in video monitoring tools to achieve correct exposure, focus, and color balance. Built-in functions include:

• Timecode display
• Pixel zoom
• Pixel-to-pixel
• Audio level meters
• Check exposure
• Check field
• Focus peaking
• False color
• Histogram
• Zebra
• Color bars
• Image flip
