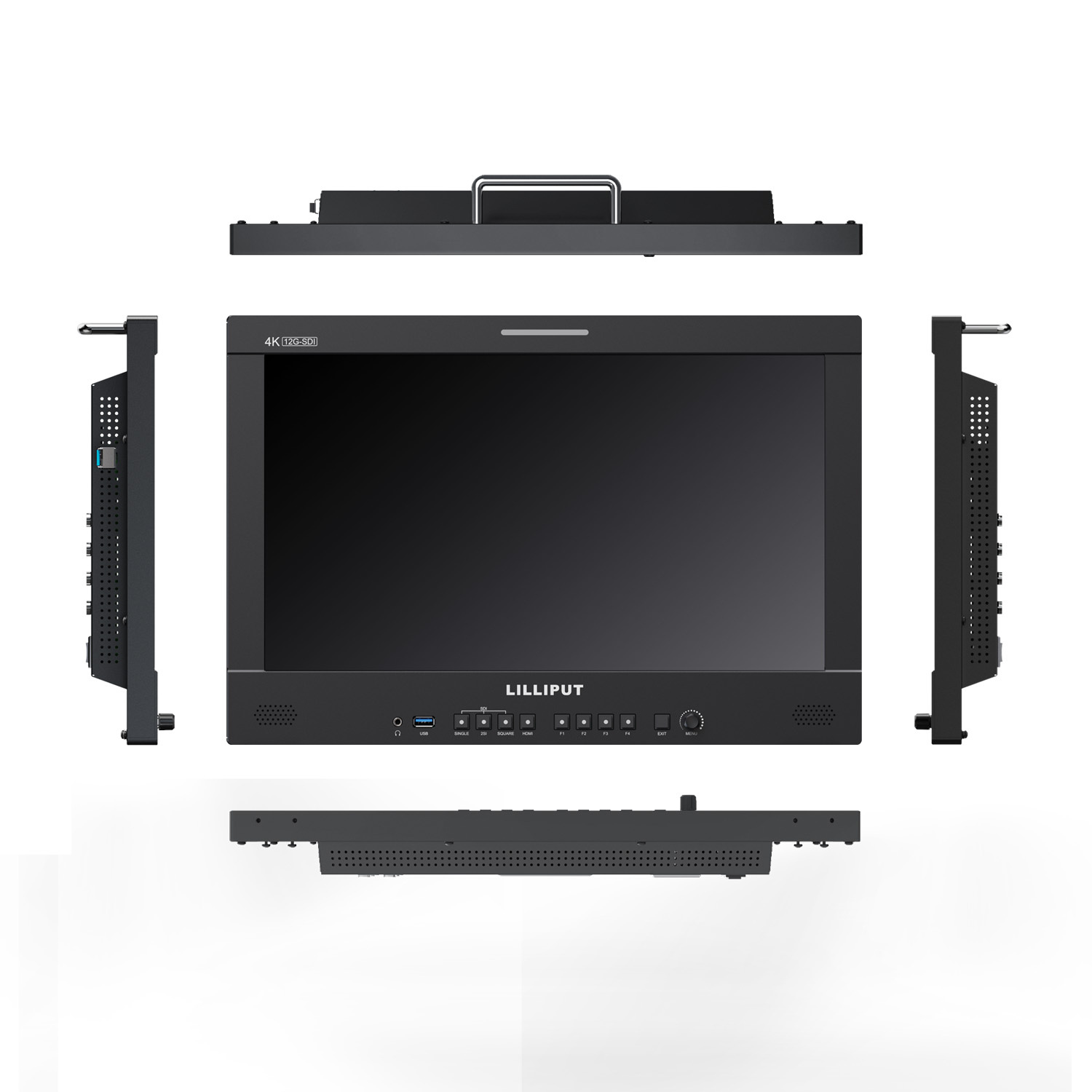

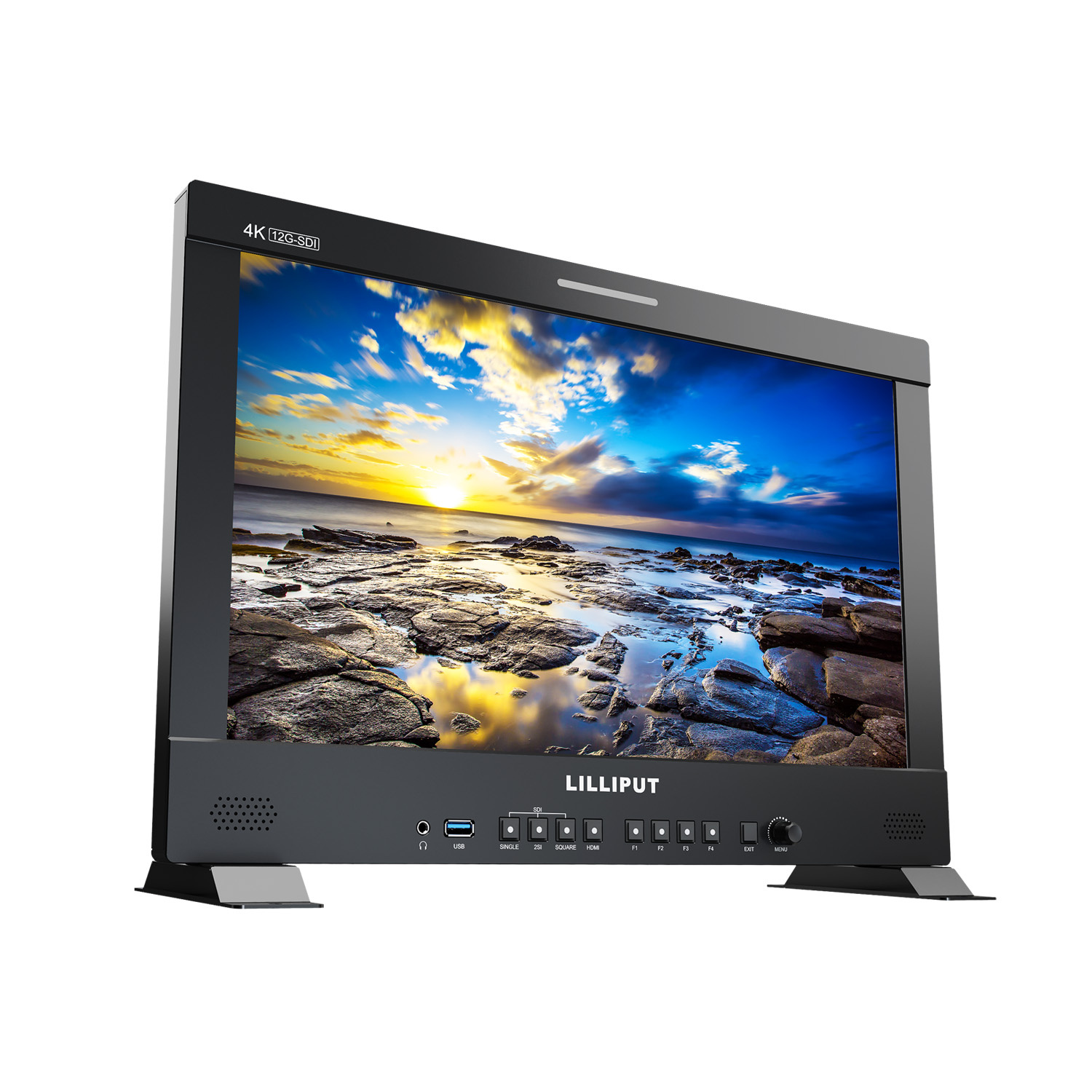

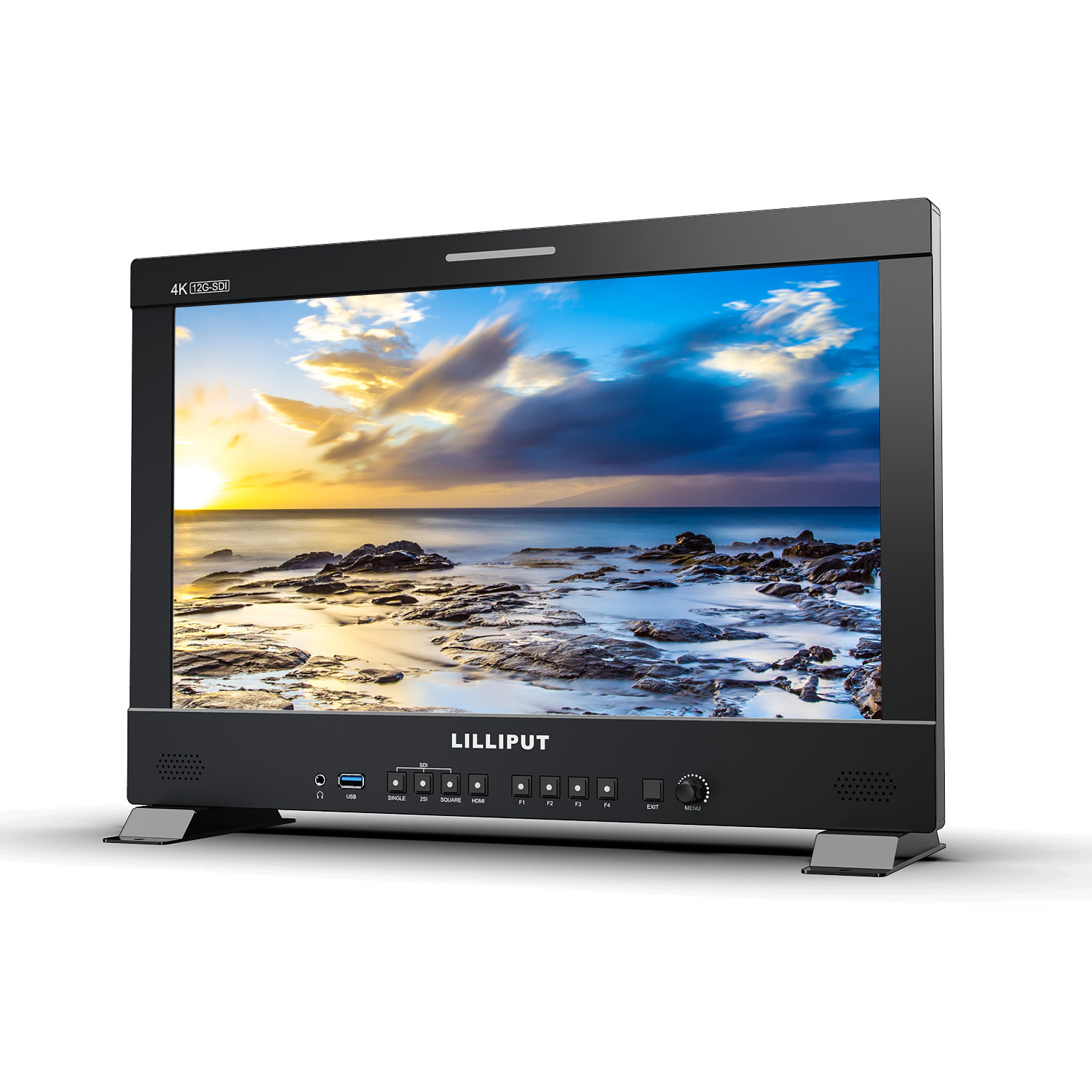

Lilliput Q18 17.3 inch 12G-SDI 4K monitor

Key Features

• 17.3" 3840 x 2160 Resolution Monitor
• Supports up to DCI 4K Input
• HDR Support, Load Custom 3D LUTs
• 170° H/V Viewing Angle
• 400 cd/m² Brightness
• 1200:1 Contrast Ratio

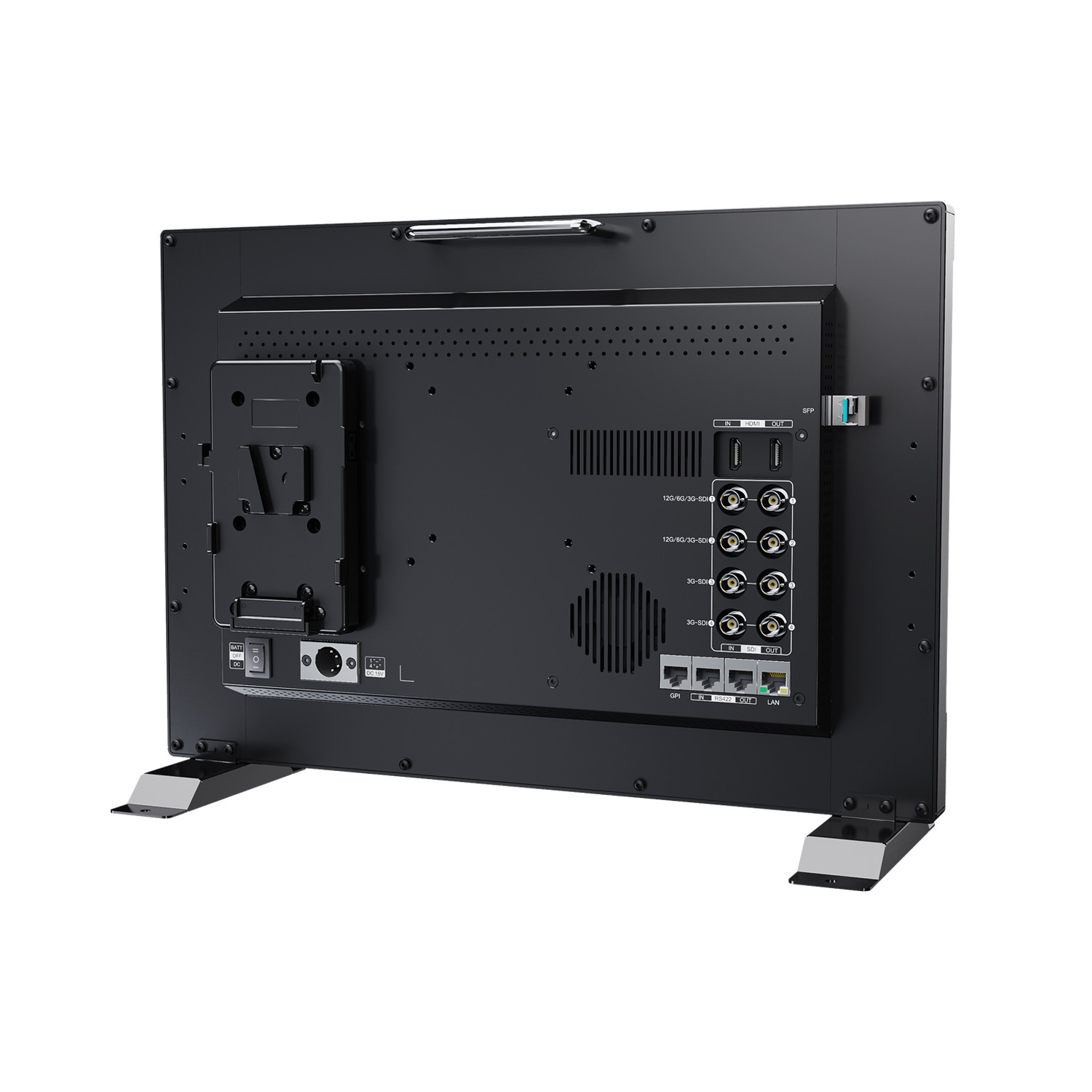

• V-Mount Battery Plate

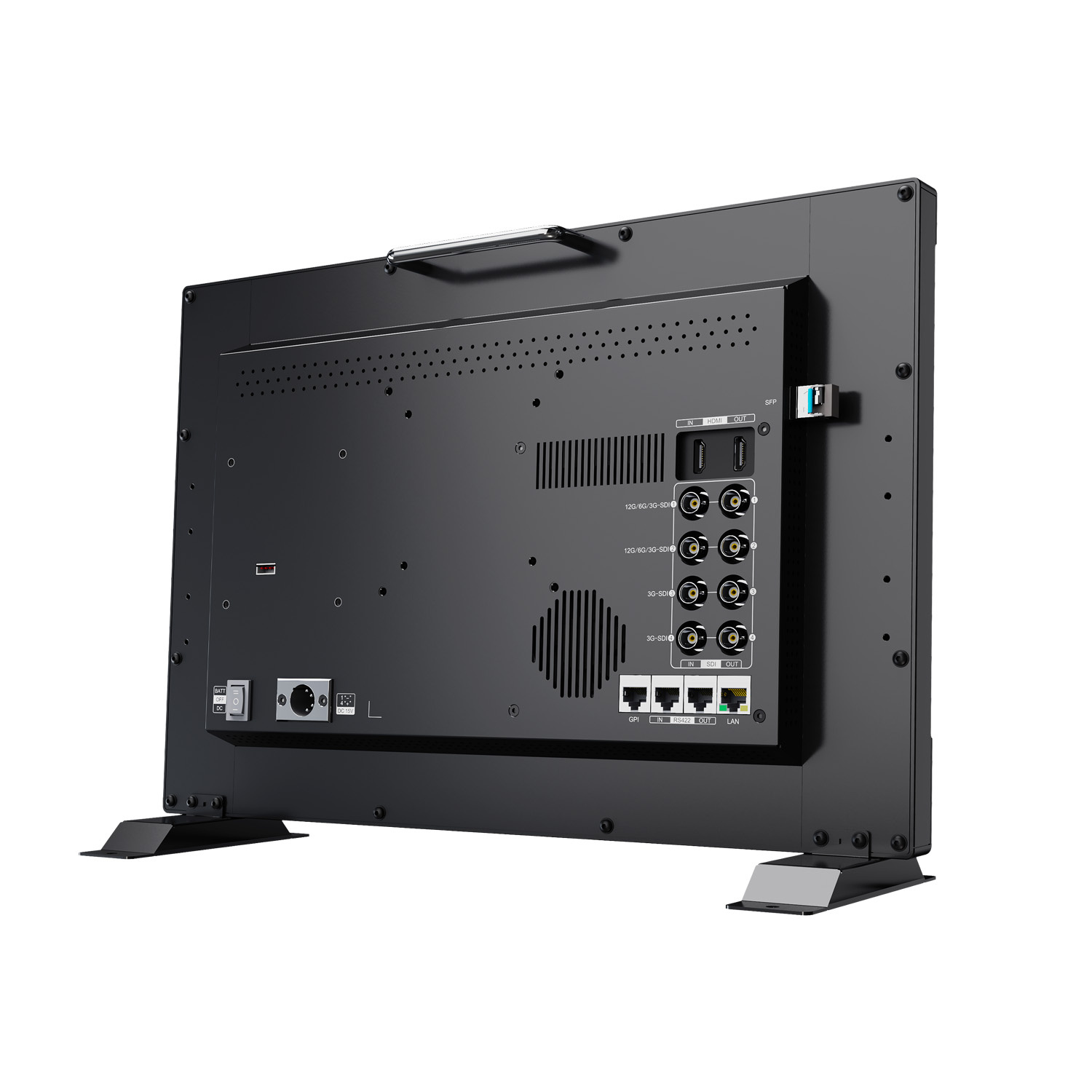

The Q18 17.3" 12G-SDI/HDMI Broadcast Studio Monitor from Lilliput is a 17.3" broadcast studio and field monitor with a V-mount battery plate and a native resolution of 3840 x 2160. It has the capability of supporting up to DCI 4K60 and automatically scales all incoming video signals to properly display these on its UHD screen, which boasts a 1200:1 contrast ratio, a viewing angle of 170°, and 400 cd/m² brightness. The Q18 features an HDMI 2.0 input and HDMI loop-through output, as well as two 12G-SDI and two 3G-SDI inputs with respective12G-SDI and 3G-SDI outputs.

The monitor supports HDR color spaces and the optional PRO/LTE ColourSpace CMS for critical color correction workflows. You can also load custom 3D LUTs for quick access to a variety of color reference options. A 12 VDC power supply is included for powering the monitor from an AC outlet when working within a studio environment, or you may also power the unit with a V-mount battery using the included battery plate.

HDR and 3D LUTs

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front panel USB port.

Supported Log Formats

SLog2. SLog3, CLog, NLog, ARRILiog, JLog, and User.

Supported HDR

ST2084 300/1000/10000/HLG.

Audio

The monitor can display the Lissajous shape, most useful when used in audio post-production work for detecting phase variance.

Assignable Buttons

Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.

Remote Control

The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications, as well as link multiple monitors together.

Calibration

The monitor supports color calibration using an optional PRO/LTE version of ColourSpace CMS to ensure your monitor is displaying your image accurately.

Fiber

An integrated slot accepts an optional SFP+ module, should you require an SFP+ fiber connection.
