Lilliput Q17FC 12G-SDI 4K Production monitor with flightcase

The Lilliput Q17 is a cheap 17-inch 4K monitor with HD resolution (1920 x 1080 pixels) professional 10-bit IPS panel for the best picture quality with 300 cd brightness.

With a screen diagonal of more than 71 cm, 12G-SDI, 6G-SDI, 3G-SDI and HD-SDI, DVI and 4 x HDMI IN.

Operation with V-Mount rechargeable batteries or with the supplied power pack.

Including flight case, protective screen, rack mount, glare protection.

Large field monitor with professional connections. Exactly the right device for all those for whom 7-10 inch monitors are simply too small. The Lilliput Q17 offers a large display diagonal of 43.18 cm (17 inches) with a very sharp native resolution of 3840x2160 pixels. Thanks to the IPS technology, the display not only shows the colors well, but also has stable viewing angles.

The properties at a glance

• Professional HDR video monitor for direction, editing, studio or field use
• Bright and sharp display with 43.18cm screen diagonal
• Real resolution of 1920 x 1080 pixels enables native preview of 4K
• IPS technology ensures good Contrasts and colors that are displayed correctly regardless of the viewing angle
• Precise calibration optional calibration tools
• Video inputs for 1 x HDMI 2.0 ( 1 x 4K ) 4 x 12G/6G/3G-SDI/SDI In/Out such as 12G SFP+ ( optional ) • HDMI input with HDMI 2.0 are 4K to
• 50/60 HZ possible
• SDI input with 12G-SDI 4K, 2 x 6G SDI and 3 x 3G-SDI
• Consistent 10-bit color processing (manufacturer information)
• SDI can be looped through (passthrough)
• Aspect ratio of the image can be set in the device ( eg for equalization in anamorphic cinemascope productions)
• Connection for headphones via 3.5mm jack
• VESA 100x100 holes for wall mounting on the back
• Operation from the socket or via batteries (Sony V-Mount)
• Tally connection via RJ45
• LAN/RS422 for control via software
• Both SDI and HDMI support the full 4K resolution and frame rate

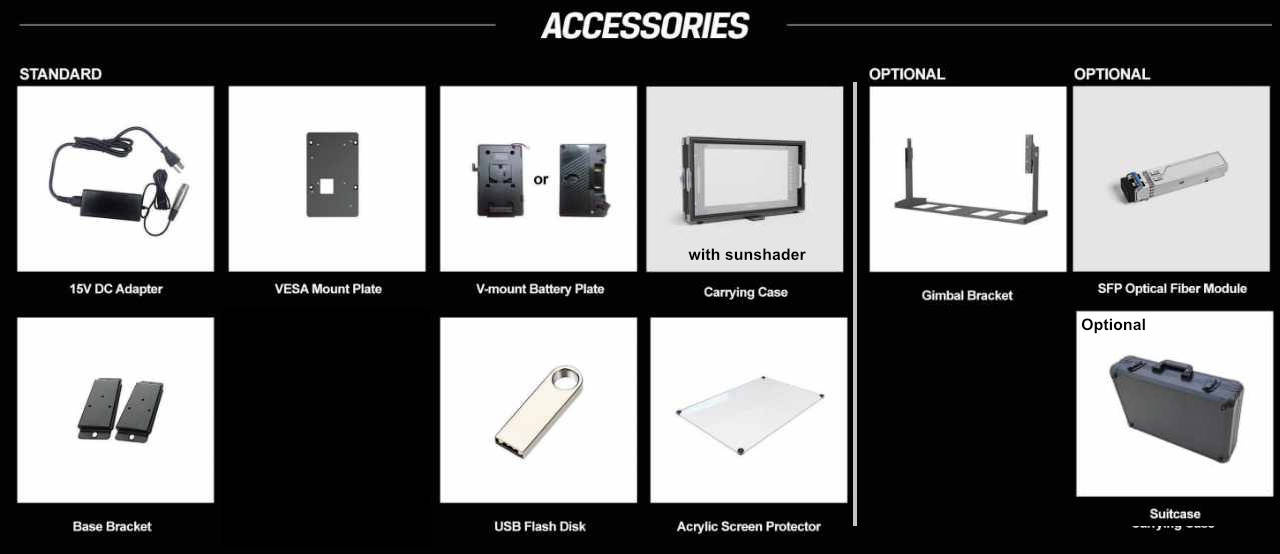

Scope of delivery:

• Monitor
• Case
• Protective screen
• VMount battery holder
• USB stick
• Power supply unit and power cable
• Swivel bracket for table
• Compact table feet

optional

• Fiber module
