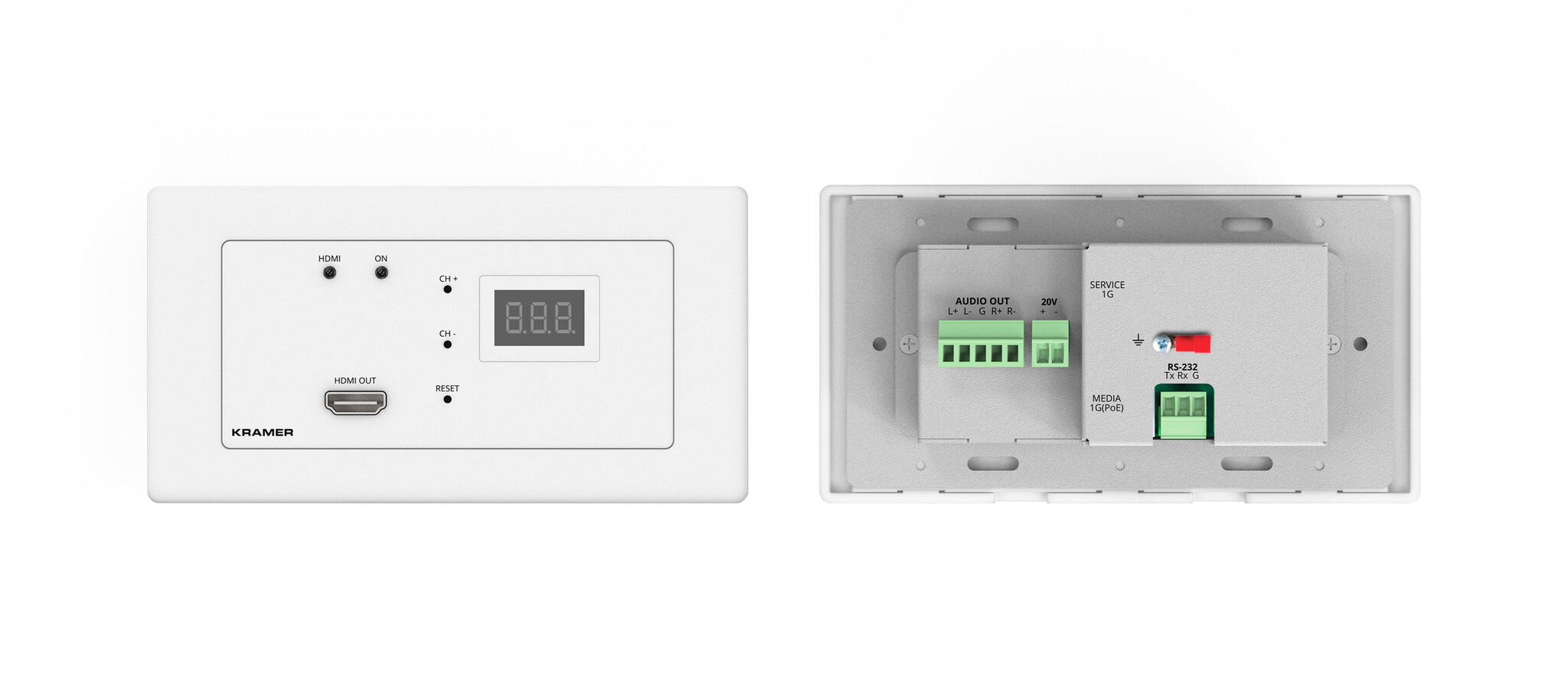

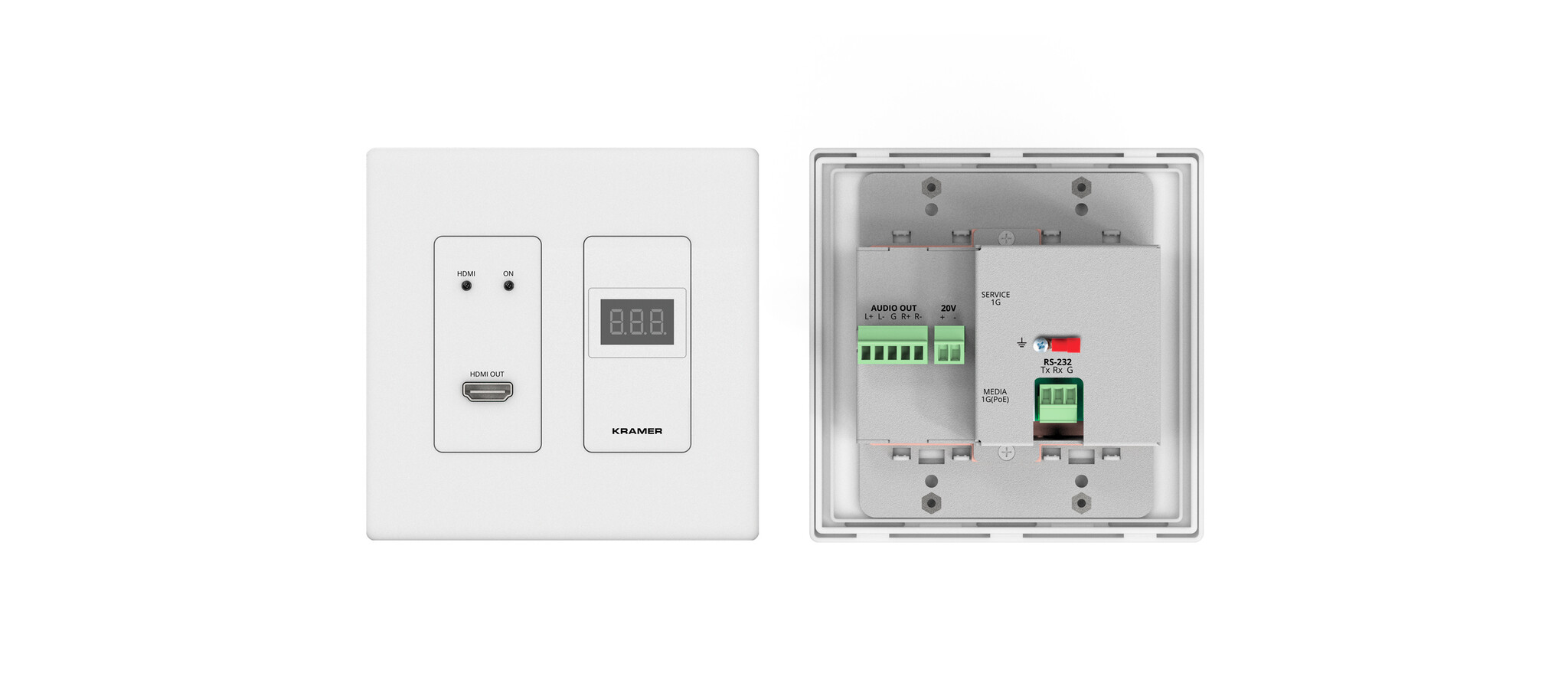

Kramer WP-DEC7 AVoIP Wall Plate Decoder for 4K over 1G network
Toon alle:
Kramer Electronics,Audio Over IP
Op werkdagen voor 17.00 besteld, zelfde dag verzonden! Mits voorradig
Gratis verzending vanaf € 75,-
085 130 5392
Scherpe offertes
Meedenkers en Oplossers
Maatwerk en Service
Beschrijving
WP−DEC7 is an advanced decoder for streaming 4K video signals via Ethernet over copper cable.
- Video Streaming Receiver — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface.
- Streaming Support — Unicast and multicast.
- Analog Audio De–Embedding Output — Extract the HDMI audio or LAN streaming audio and output it as balanced analog audio.
- Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet or front panel LCD and buttons.
- Control Gateway — Through P3K or special TCP connection, user could control/communicate with RS232 and CEC to the connected devices.
- Video Wall — Up to 16x16 size.
- PoE Support — Option to power with PoE connection from a PoE switch
Top of Form
APPLICATIONS
- For real–time essential installations such as command and control rooms
- For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
- AV distribution systems with one or more sources and many displays in schools, universities, and public venues
- For AV installations where low latency KM/KVM capabilities are required
Technische specificaties
- 1 HDMI: On a female HDMI connector
- 2 Ethernet: On RJ–45 connectors
- 1 Balanced Audio: On a 5–pin terminal block connector
- 1 RS-232: On a 3–pin terminal block connector
- Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2
- Unicast: Through RTSP (Real Time Streaming Protocol)
- Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
- Compression Standard: JPEG based, private stream
- Max Resolution: 4K@30Hz 4:4:4
- Compression Standard: JPEG2K based, proprietary stream
- Max Input Resolution: 4K@60hz (4:2:0)
- Max Output Resolution: 4K@30hz (4:4:4)
- Max End-to-End Resolution: 4K@30hz (4:4:4)
- Scaler: Yes
- End-to-End Latency: 33msec
- Switching Time: 1sec
- 4096x2160@60Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz,
- 3840x2160@60Hz, 1600x900@60Hz, 1280x800@60Hz, 800x600@60Hz,
- 1920x1200@50Hz, 1440x900@60Hz, 1280x768@60Hz, 720x576@60Hz,
- 1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz,
- 1856x1392@60Hz, 1366x768@60Hz, 1224x768@70Hz, 640x480@60Hz,
- 1792x1344@60Hz, 1360x768@60Hz, 1152x864@70Hz, 640x400@85Hz,
- 1680x1050@60Hz, 1024x768@60Hz, 640x350@85Hz
- Supported Formats: LPCM, Dolby and DTS
- LPCM: LPCM upto 7.1/24–bit/192kHz
- Dolby: Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
- DTS: DTS–HD Master AudioTM, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1
- HTTPS, 802.1x, OWASP–10, AES–128 encryption of AV streaming with changeable key
- Indicators: HDMI and ON LEDs, front panel LCD Display
- Recessed Buttons: CH+/CH — and factory reset
- Controls: Embedded web pages, P3K API commands via Ethernet
- PoE (Power over Ethernet): 37V to 57V, maximum power consumption 12W
- Optional power supply: 20V DC, 6A Max
- Operating Temperature: 0° to +45°C (32° to 113°F)
- Storage Temperature: –20° to +70°C (–4° to 158°F)
- Humidity: 10% to 90%, RHL non–condensing
- Safety: CE, FCC
- Environmental: RoHs, WEEE
- Size: 2–gang
- Type: Metal (SGCC)
- Cooling: Convection ventilation

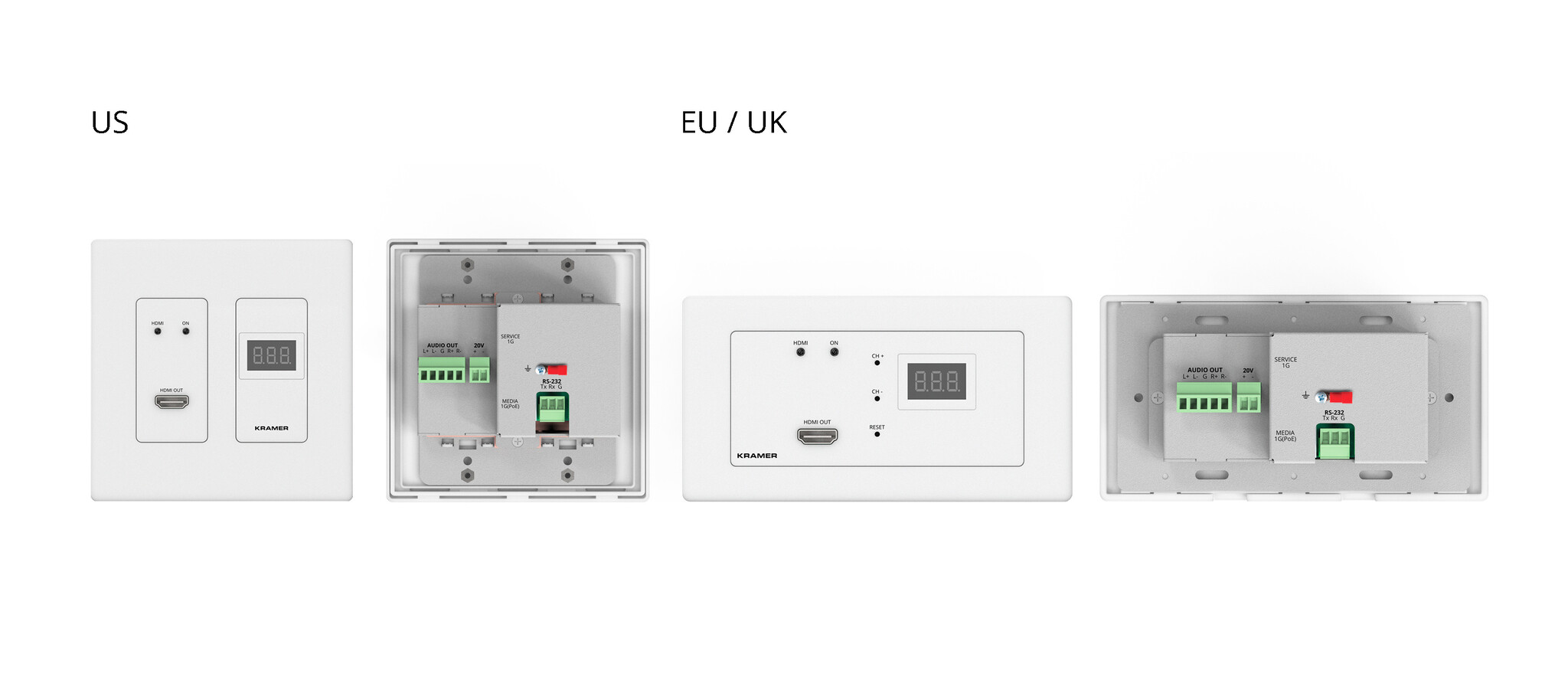

- US: 12.10cm x 4.56cm x 12.10cm (4.76" x 1.80" x 4.76" ) W, D, H
- UK: 15.10cm x 4.00cm x 8.60cm (5.94" x 1.57" x 3.39" ) W, D, H
- US: 0.4kg (0.9lbs) approx.
- UK: 0.4kg (0.9lbs) approx.
- US: 20.00cm x 13.70cm x 7.50cm (7.87" x 5.39" x 2.95" ) W, D, H
- UK: 23.80cm x 13.70cm x 7.50cm (9.37" x 5.39" x 2.95" ) W, D, H
- US: 0.6kg (1.3lbs) approx.
- UK: 0.7kg (1.4lbs) approx.
OUTPUTS
PORTS
NETWORK
VIDEO
VIDEO STREAMING
RESOLUTION
AUDIO
SECURITY
USER INTERFACE
POWER
ENVIRONMENTAL CONDITIONS
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
ENCLOSURE
PRODUCT DIMENSIONS
PRODUCT WEIGHT
SHIPPING DIMENSIONS
SHIPPING WEIGHT
