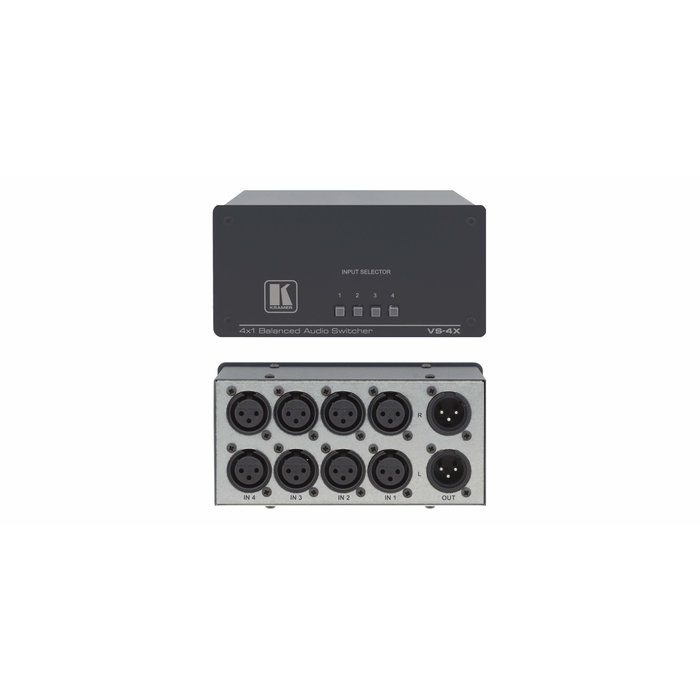

Kramer VS-4X4x1 Balanced Stereo Audio Mechanical Switcher
Toon alle:
Switchers
Op werkdagen voor 17.00 besteld, zelfde dag verzonden! Mits voorradig
Gratis verzending vanaf € 75,-
085 130 5392
Scherpe offertes
Meedenkers en Oplossers
Maatwerk en Service
Beschrijving
The VS−4X is a high−performance switcher for balanced stereo audio signals on XLR connectors. It switches any one of four stereo signals to a single stereo output.
- Mechanical (Passive) Switching — No power required.
APPLICATIONS
- Audio editing, monitoring and production systems.
- Security, CCTV, home theater and presentation applications.
- Mic switching in field or studio applications.
TECHNICAL SPECIFICATIONS
- INPUTS: 4 balanced stereo audio, +4dBu typical, on XLR connectors
- OUTPUT: 1 balanced stereo audio, +4dBu typical, on an XLR connector
- SWITCHING
- SYSTEM:
- Mechanical, break−before−make
- BANDWIDTH (-3dB): Audio: 100kHz (–3dB)
- CROSSPOINTS: 4 x 2 for audio stereo
- SIGNAL LEVELS: Up to +30dBu
- Product Dimensions 15.30cm x 7.60cm x 7.20cm (6.02" x 2.99" x 2.83" ) W, D, H
- Product Weight 0.6kg (1.2lbs) approx
- Shipping Dimensions 25.60cm x 11.80cm x 11.40cm (10.08" x 4.65" x 4.49" ) W, D, H
- Shipping Weight 0.8kg (1.8lbs) approx.
Cables
BALANCED (1)
AUDIO–ANALOG–BALANCEDMONO–STEREO–XLR
- CABLE - C-XLQM/XLQF
- INPUTS -1- XLR (M)
- OUTPUTS - 1 - XLR (F)
- AUDIO - B
- FEATURES - Lengths − 1−150ft (0.3−45.7m) Quad Style
