KRAMER - VS-42UHD 4x2 4K60 4:2:0 HDMI Automatic Matrix Switcher

PRODUCT OVERVIEW

VS-42UHD

4x2 4K60 4:2:0 HDMI Automatic Matrix Switcher

• Resolutions up to UXGA and 4K x 2K
• HDCP compliant
• Automatic switching (last connected/priority
• Video clock detection

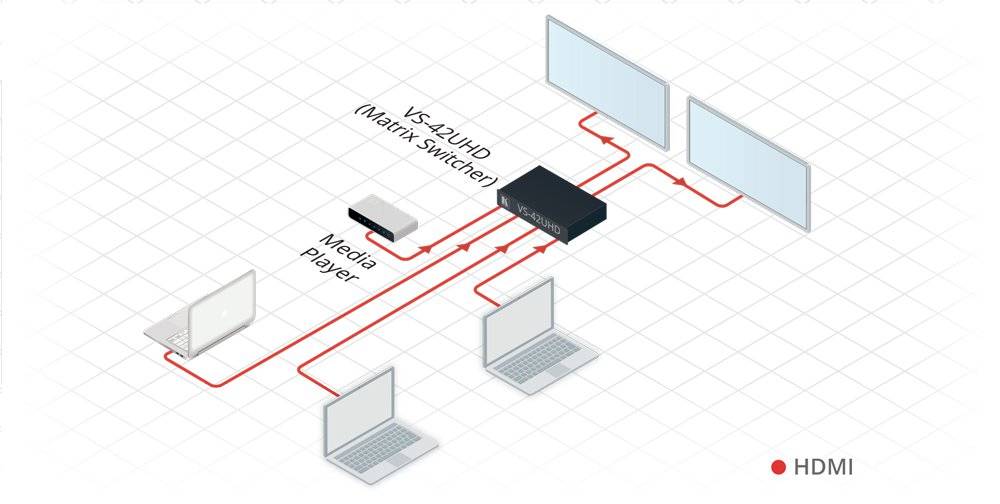

VS−42UHD is a high−quality, 4x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously.

•  Max. Data Rate — 8.91Gbps (2.97Gbps per graphics channel).
•  Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
•  HDCP Compliant
•  True Video Clock Detection.
•  Automatic Switching Modes — Last connected and priority switching.
•  HDMI Support — 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 PCM.
•  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
•  Programmable Step–in Functionality — When used with compatible step–in devices, such as the SID–X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
•  Non–Volatile EDID Storage.
•  Kramer reKlocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.
•  Static or Dynamic DHCP IP Addressing.
•  Embedded Web Pages — Provide remote configuration and operation.
•  Lock Button — Prevents tampering with the front panel buttons.
•  Kramer Protocol 3000.
•  Versatile Control Options — RS–232, Ethernet, infrared remote control, optional remote IR receiver.

APPLICATIONS

•  Conference rooms
•  Education
•  Hospitality

SPECIFICATIONS

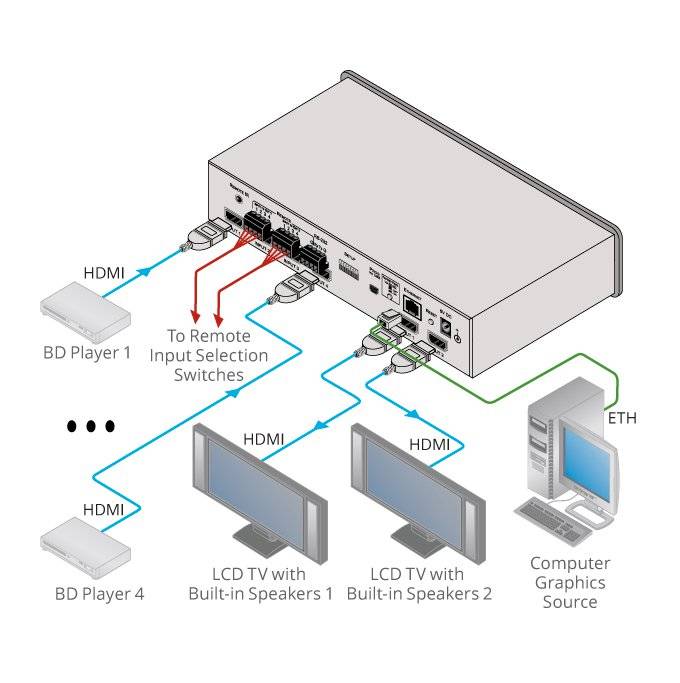

INPUTS

• 4 HDMI connectors

OUTPUTS

• 2 HDMI connectors

PORTS

• 1 Ethernet on an RJ–45 connector
• 1 IR on a 3.5mm mini jack
• 12 remote selection contact–closure switches on 13 terminal block pins
• 1 serial port on a 3–pin terminal block
• 1 program port on a mini USB

BANDWIDTH

• Up to 8.91Gbps data rate (2.97Gbps per graphic channel)

COMPLIANCE WITH HDMI STANDARD

• HDMI and HDCP

RESOLUTION

• Up to UXGA
• 4K x 2K

SUPPORTED BAUD RATES

• 9600, 115200bps

SUPPORTED WEB BROWSERS

• The following operating systems and Web browsers are supported:
• Windows 7: Google Chrome v25, FireFox v15, Opera v12, Microsoft Internet Explorer v9
• Windows XP: Google Chrome v25, FireFox v15
• Apple Mac: Google Chrome v25, FireFox v20, Opera v12.14, Safari v6

POWER CONSUMPTION

• 5V DC, 880mA
• 100–240V AC, 65VA max

CONTROLS

• Front panel buttons, infrared remote control transmitter, RS–232, Ethernet, remote input selection switches

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power supply, RC–IR3 remote control

PRODUCT DIMENSION

• 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H

PRODUCT WEIGHT

• 0.9kg (2.1lbs) approx.

SHIPPING DIMENSION

• 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H

SHIPPING WEIGHT

• 1.8kg (3.9lbs) approx.
