Name: Kramer KRAMER - VS-211H2 2x1 4K HDR HDCP 2.2 HDMI Auto Switcher
Brand: Kramer
SKU: VS-211H2
Price: 424.00 EUR
Availability: InStock

Beschrijving

PRODUCT OVERVIEW

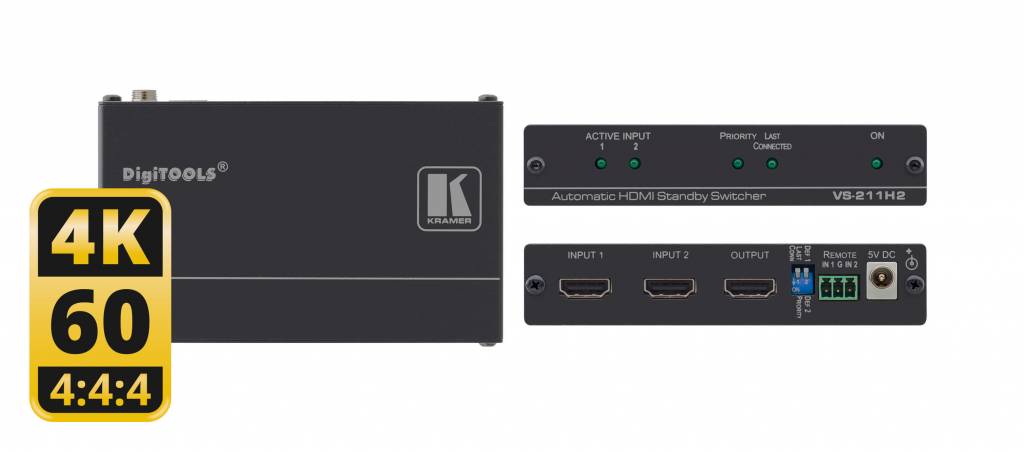

VS-211H2

2x1 4K HDR HDCP 2.2 HDMI Auto Switcher

Max. Data Rate — 17.82Gbps
4K@60Hz (4:4:4) resolution support
HDR support
HDMI 2.0 & HDCP 2.2 compliant

VS−211H2 is a high−performance automatic switcher for 4K HDR, HDCP 2.2, HDMI 2.0 video signals. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.

Max. Data Rate — 17.82Gbps (5.94Gbps per data channel).
Max. Resolution — 4K@60Hz (4:4:4).
Kramer Equalization and re–Klocking Technology.
HDR Support.
HDTV Compatible.
HDMI 2.0 & HDCP 2.2 Compliant.
3D Pass–Though.

APPLICATIONS

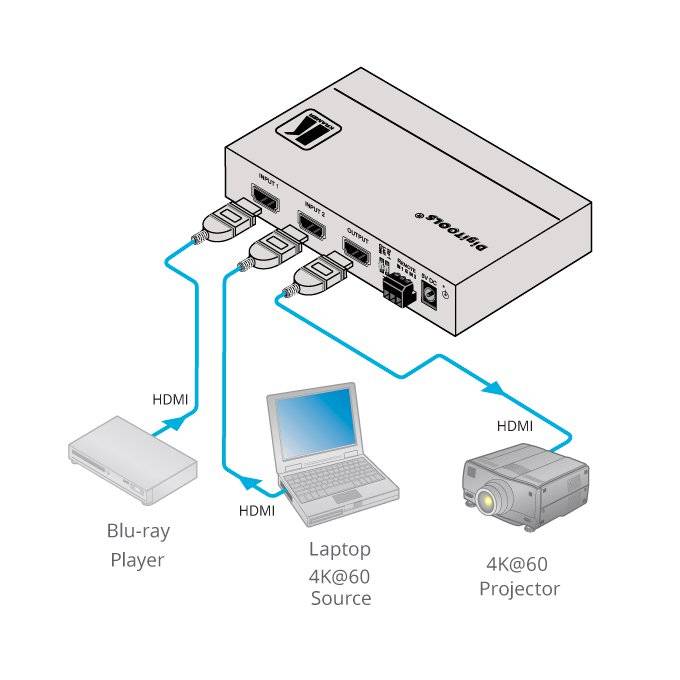

Presentation systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging

Technische specificaties

INPUTS

2 HDMI connectors

OUTPUTS

1 HDMI connector

MAX. DATA RATE

17.82GBPS (5.94Gbps per graphic channel)

MAX. RESOLUTION

4K@60Hz (4:4:4)

STANDARDS COMPLIANCE

HDR10, HDCP 2.2 (does not support conversion to HDCP 1.4), HDMI 2.0

CONTROLS

Status/priority DIP–switches, contact closure remote control

REGULATORY CERTIFICATION

EMC EN 55032
IEC 60950–1(ed.2)
IEC 60950–1(ed.2)am1
IEC 60950–1(ed.2)am2

OPERATING TEMPERATURE

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

–40° to +70°C (–40° to 158°F)

HUMIDITY

10% to 90%, RHL non–condensing

POWER CONSUMPTION

5V DC, 400mA

INCLUDED ACCESSORIES

Power supply 5.2V DC/4A desktop

PRODUCT DIMENSION

12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

PRODUCT WEIGHT

0.2kg (0.4lbs) approx.

SHIPPING DIMENSION

15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H

SHIPPING WEIGHT

0.6kg (1.4lbs) approx.
