KRAMER - VP-427H2 4K60 4:4:4 HDMI HDCP 2.2 Receiver/Scaler over Extended–Reach HDBaseT

PRODUCT OVERVIEW

VP-427H2

4K60 4:4:4 HDMI HDCP 2.2 Receiver/Scaler over Extended–Reach HDBaseT

• HDMI 2.0
• HDCP1.4 & HDCP2.2
• Up to 4K@60 (4:4:4)
• Ethernet Tunneling

VP‑427H2 is a high−performance receiver/scaler for extended−reach HDBaseT twisted pair, HDMI™, bidirectional RS−232 and IR signals. The unit receives an HDBaseT signal that it converts to HDMI and passes Ethernet, IR and RS−232 signals. It also de−embeds and outputs an unbalanced stereo audio signal, and up− or down−scales the picture to match the resolution of the HDMI monitor.

•  Max. Output Resolution (HDMI) — Up — and down–scales to any resolution up to 4K@60Hz (4:4:4).
•  Max. Input Resolution (HDBaseT) — HDBaseT input resolution up to 4K@60Hz (4:2:0).
•  Supports HDMI 2.0 and HDCP 1.4 / 2.2
•  Audio Support — Embedded and analog (supporting LPCM 2CH) for the output.
•  HDBaseT Data Tunneling — Supports Ethernet tunneling, as well as bidirectional tunneling for RS–232 and IR control.
•  On–Screen Display (OSD) — For easy setup and adjustment, accessible via the front–panel buttons.
•  Constant Sync — Maintains sync on the output, even if the input video signal is lost or interrupted.
•  System Range — Up to 100m (328ft) at 4K.

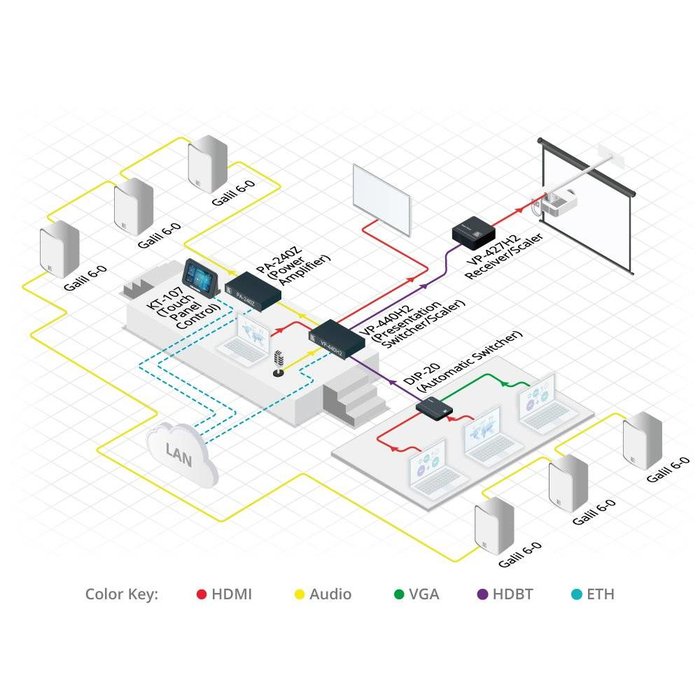

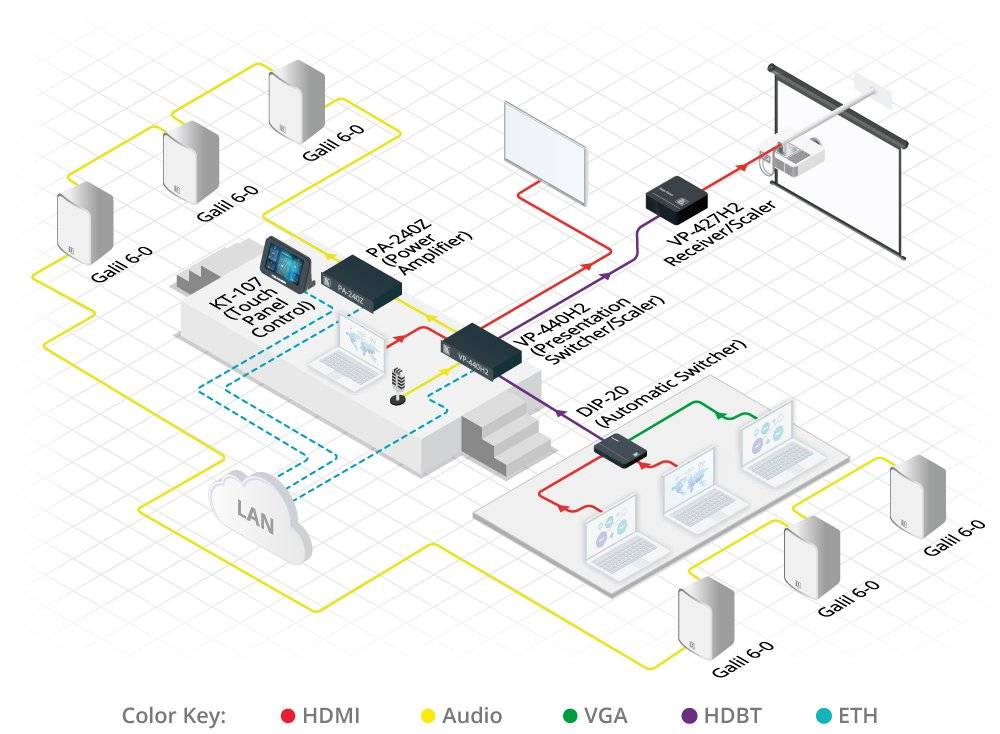

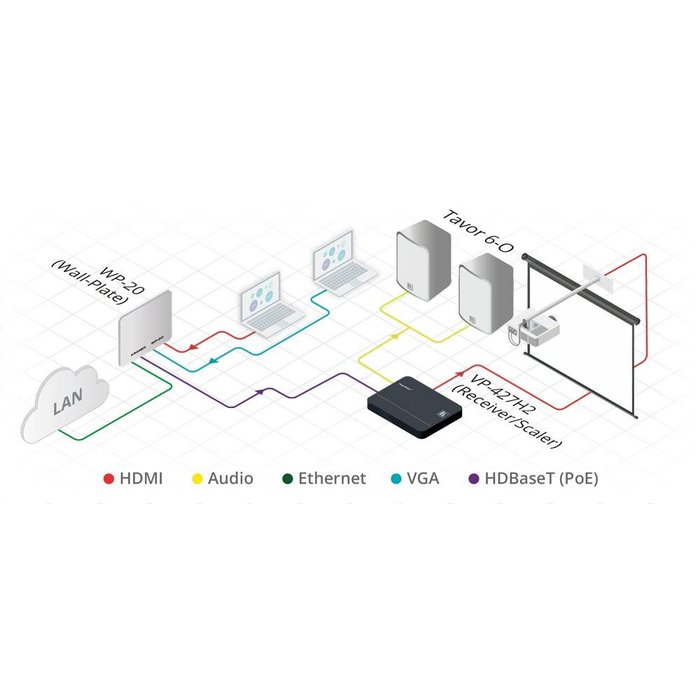

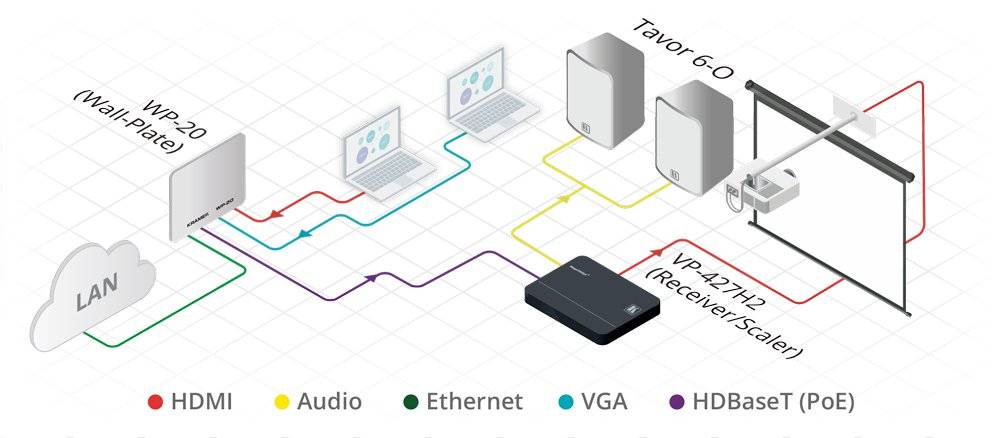

APPLICATIONS

•  Home theater
•  Presentation and multimedia
•  Rental and staging

SPECIFICATIONS

INPUTS

• 1 HDBaseT twisted pair on an RJ–45 connector, 1 IR on a 3.5mm mini jack

OUTPUTS

• 1 HDMI connector, 1 IR on a 3.5mm mini jack, 1 unbalanced stereo audio (1.2Vrms nominal, 100Ω) on a 3.5mm mini jack

PORTS

• 1 bidirectional RS–232 port on a 9–pin D–sub connector, 1 Ethernet on an RJ–45 connector, 1 USB (A) for upgrading

COMPLIANCE WITH HDMI STANDARD

• Supports up to HDMI 2.0, and HDCP 2.2

OUTPUT RESOLUTIONS

• 640x480@60Hz, 800x600@60Hz 1024x768@60Hz, 1280x768@60Hz, 1360x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1920x1200@60Hz 480P@60Hz, 576P@50Hz, 720P@50/60Hz, 1080P@24/25/30Hz, 4k2k@24/25/30Hz, 4k2k (4:2:0)@50/60Hz, 4k2k (4:4:4)@50/60Hz, Native

MAX. INPUT RESOLUTION

• (HDBaseT) 4K@60Hz (4:2:0)

MAX. RANGE

• 100m (328ft) at 4K

OUTPUT REFRESH RATE

• 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions

AUDIO SAMPLING RATE

• 48kHz for analog audio output

VIDEO LATENCY

• Progressive input — 30ms (approx.)
• interlaced input — 50ms (approx.)

EMBEDDED AUDIO

• HDMI and HDBT support multi–channel audio

RS-232 BAUD RATE

• 115200bps max

CONTROLS

• Front panel buttons, OSD menu

INDICATORS

• ON LED (green)

POWER CONSUMPTION

• 5V DC, 2.5A

POWER SOURCE

• 5.2V/4A

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power supply

PRODUCT DIMENSION

• 18.75cm x 14.50cm x 2.54cm (7.38" x 5.71" x 1.00" ) W, D, H

PRODUCT WEIGHT

• 0.6kg (1.2lbs) approx.

SHIPPING DIMENSION

• 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H

SHIPPING WEIGHT

• 1.1kg (2.4lbs) approx.
