Beschrijving

SDIA−IN2−F16/F34 is a two−channel SDI input card with optional analog audio embedding for the VS−1616 or VS−34FD Series Modular Multi−Format Digital Matrix Switchers. SDIA−IN2−F16/F34 inputs two SDI with optional unbalanced stereo audio signals into the chassis and converts each SDI signal separately into HDMI format for routing within the matrix switcher.

Max. Data Rate — 3Gbps.
Multi–Standard Operation — SDI, HD–SDI, 3G HD–SDI.
Stereo Audio Embedding.

Technische specificaties

PORTS

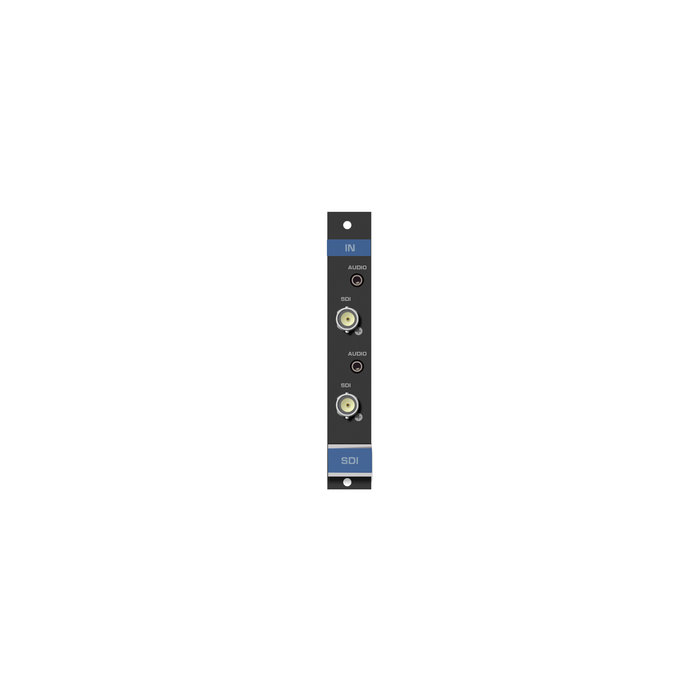

2 unbalanced analog audio on 3.5mm mini jack connectors, 2 SDI, 75Ω on BNC connectors

TOTAL BANDWIDTH

3Gbps

MAXIMUM RANGE

300m (980ft) — SD, 200m (655ft) — HD 1080p, 90m (295ft) — 3G 1080p

3D PASS THROUGH

Not supported

POWER CONSUMPTION

OPERATING TEMPERATURE

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

–40° to +70°C (–40° to 158°F)

HUMIDITY

10% to 90%, RHL non–condensing

SAFETY REGULATORY COMPLIANCE

ENVIRONMENTAL REGULATORY COMPLIANCE

Complies with appropriate requirements of RoHs and WEEE

PRODUCT DIMENSIONS

25.20cm x 13.00cm x 2.00cm (9.92" x 5.12" x 0.79" ) W, D, H

PRODUCT WEIGHT

0.3kg (0.7lbs) approx.

SHIPPING DIMENSIONS

30.00cm x 16.50cm x 6.00cm (11.81" x 6.50" x 2.36" ) W, D, H

SHIPPING WEIGHT

0.5kg (1.0lbs) approx.

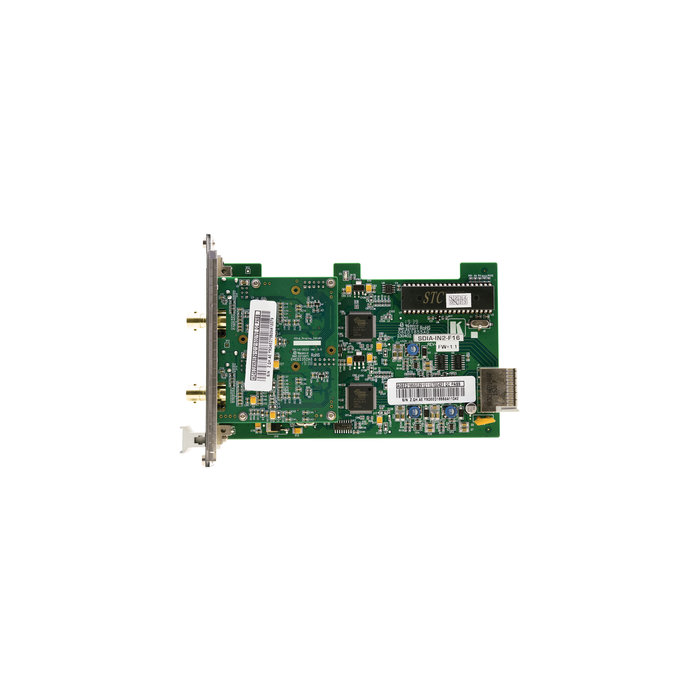

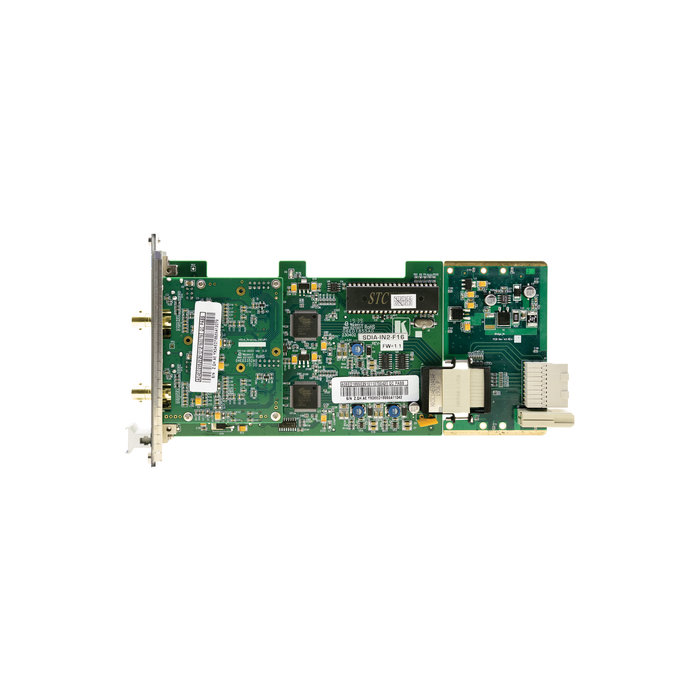

Kramer SDIA-IN2-F16/F34 - 2–Channel SDI with Analog Audio Input Card
