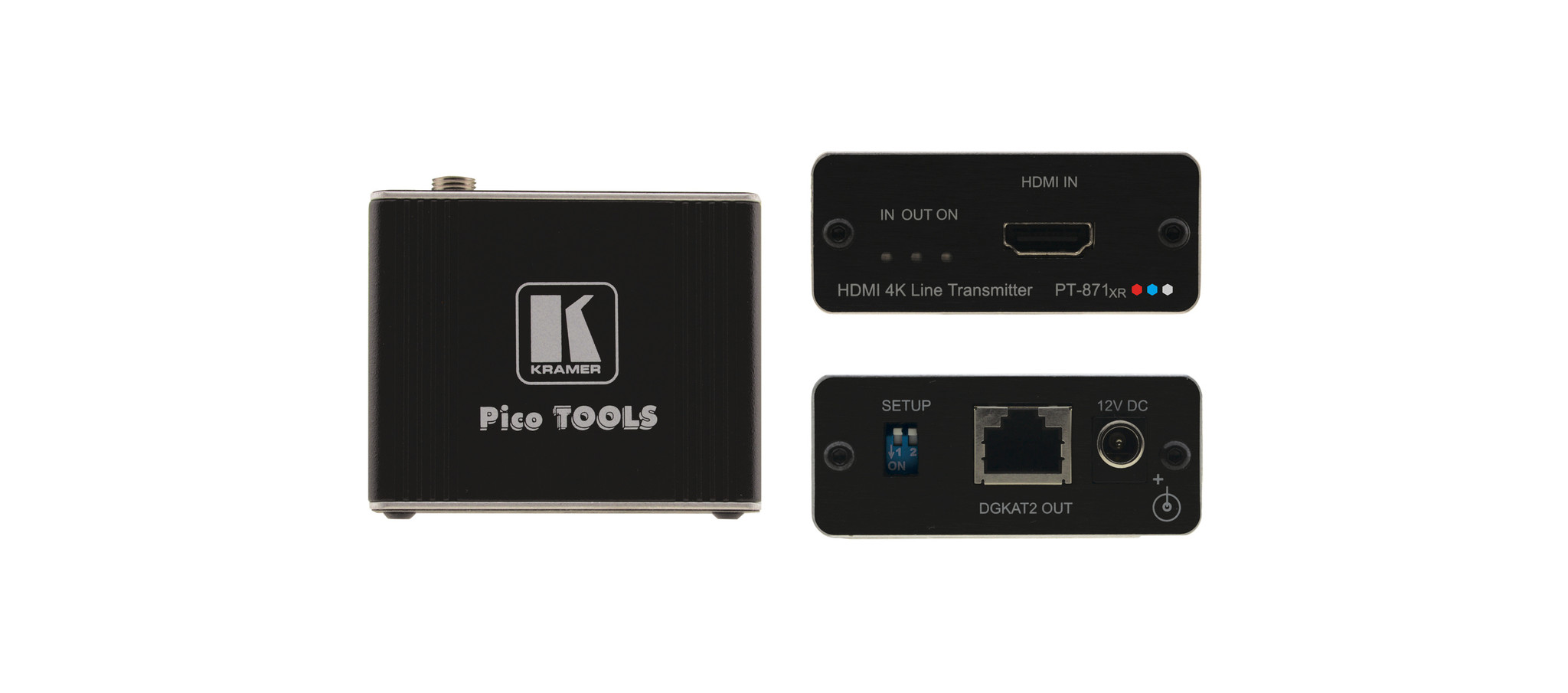

KRAMER - PT-871xr 4K HDR HDMI Compact PoC Transmitter over Long–Reach DGKat 2.0
Op werkdagen voor 17.00 besteld, zelfde dag verzonden! Mits voorradig
Gratis verzending vanaf € 75,-
085 130 5392
Scherpe offertes
Meedenkers en Oplossers
Maatwerk en Service
Beschrijving

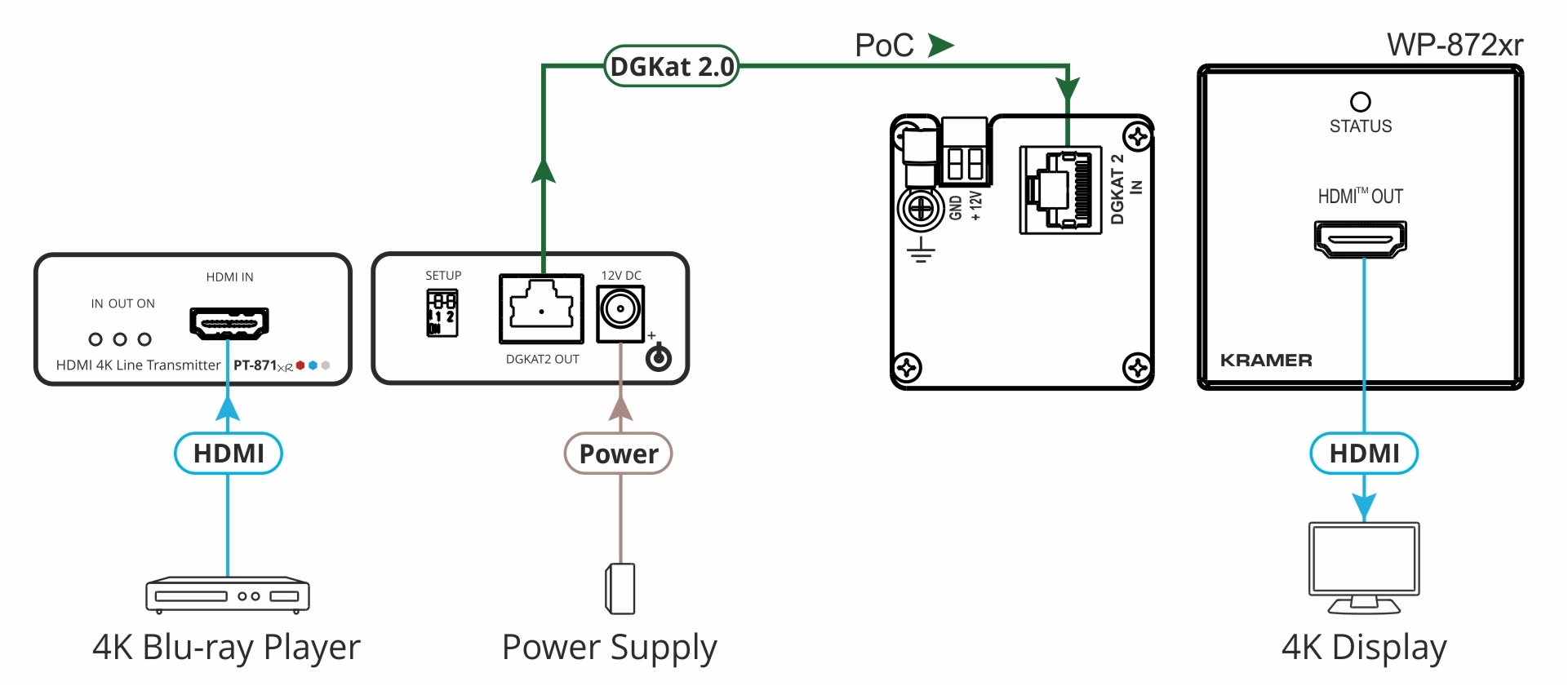

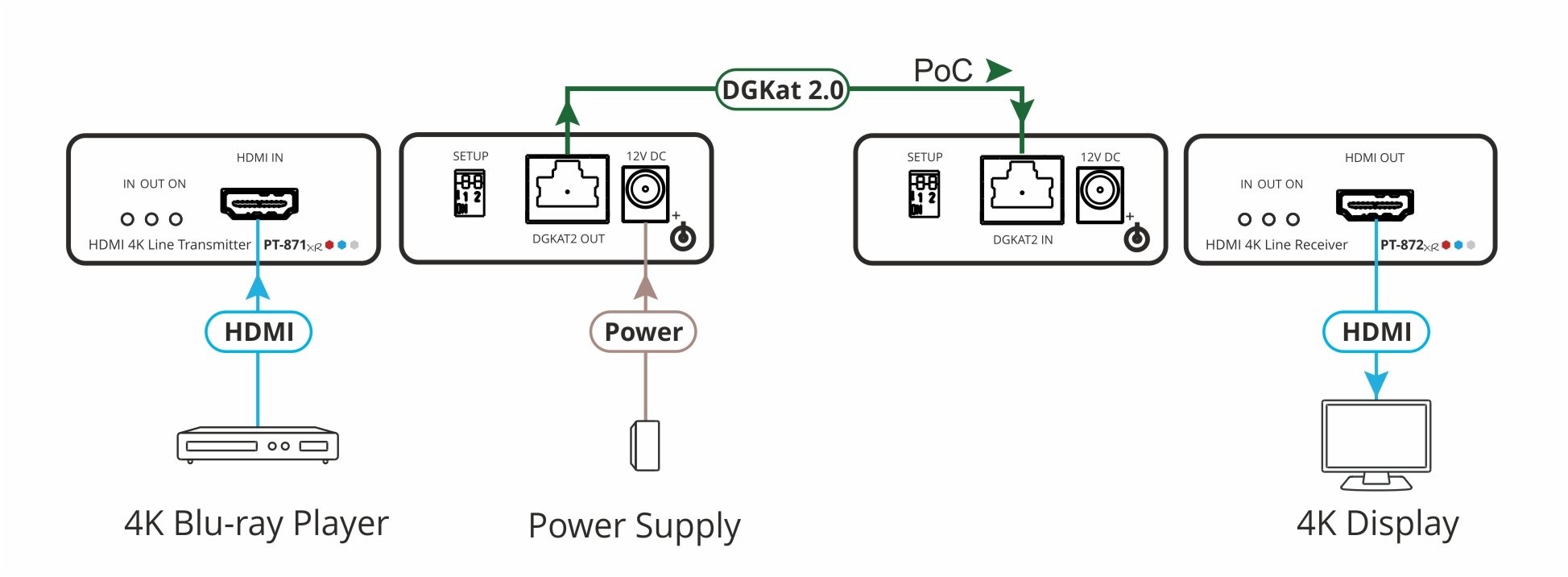

PT−871xr is a high−performance, long−reach DGKat™ 2.0 transmitter for 4K@60Hz (4:4:4) HDR, HDMI, HDCP 2.2 signals and 2−way PoC powering over twisted pair. It converts the HDMI signal into the transmitted DGKat™ 2.0 signal. PT−871xr extends the signal to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.
- High Performance Extender — Professional DGKat™ 2.0 transmitter for providing long–reach signals and 2–way power over twisted pair copper infrastructures. PT–871xr employs low–level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near–zero latency.
- HDMI Signal Extension — Supports HDR, HDCP 2.2, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Cost–effective Maintenance — Status LED indicators for HDMI and DGKat™ 2.0 ports facilitate easy local maintenance and troubleshooting.
- Easy Installation — Single twisted–pair cable for signal and power wiring. Compact PicoTOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 4 units in a 1U rack space with the optional, compatible Kramer rack adapter.
APPLICATIONS
- Long–distance AV signal extension for large room connectivity
- AV extension in meeting rooms, boardrooms, hotels and corporate facilities
Technische specificaties
- 1 HDMI: On an HDMI female connector
- 1 DGKat: On an RJ–45 female connector for extension line
- Transmitted Data Bandwidth: Up to 18Gbps (6Gbps per graphic channel)
- Max Resolution at High Compression Level: 3840x2160@60Hz (4:4:4) 24bpp
- Max Resolution at Standard Compression Level: 4096x2160@60Hz (4:4:4) 24bpp
- Standards Compliance: HDR10, HDCP 2.2
- Using Shielded UNIKAT Cables: Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
- Using Plenum HDKat Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)
- Using Shielded UNIKAT Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
- Signal Compression: Standard or high compression level applied to >1080p signals
- Compliance: DGKat 2.0
- Indicators: IN, OUT, and ON LEDs
- Controls: Dip–switches to define compression level
- Source: 12V DC, 2A
- Consumption: 600mA
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non–condensing
- Size: PicoTOOLS®
- Type: Aluminum
- Cooling: Convection ventilation
- Included: 1 power adapter with cord, 1 bracket set
- Safety: CE, UL
- Environmental: RoHs, WEEE
- 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
- 0.1kg (0.2lbs) approx.
- 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
- 0.4kg (0.8lbs) approx.
