KRAMER - PT-580T 4K60 4:2:0 HDMI HDCP 2.2 Compact Transmitter over Long–Reach HDBaseT

PRODUCT OVERVIEW

PT-580T

4K60 4:2:0 HDMI HDCP 2.2 Compact Transmitter over Long–Reach HDBaseT

• HDBaseT 1.0 transmitter
• Long–reach — Up to 40m (130ft) at 4K@60Hz (4:2:0)
• Video resolution — Up to 4K@60Hz (4:2:0) 24bpp

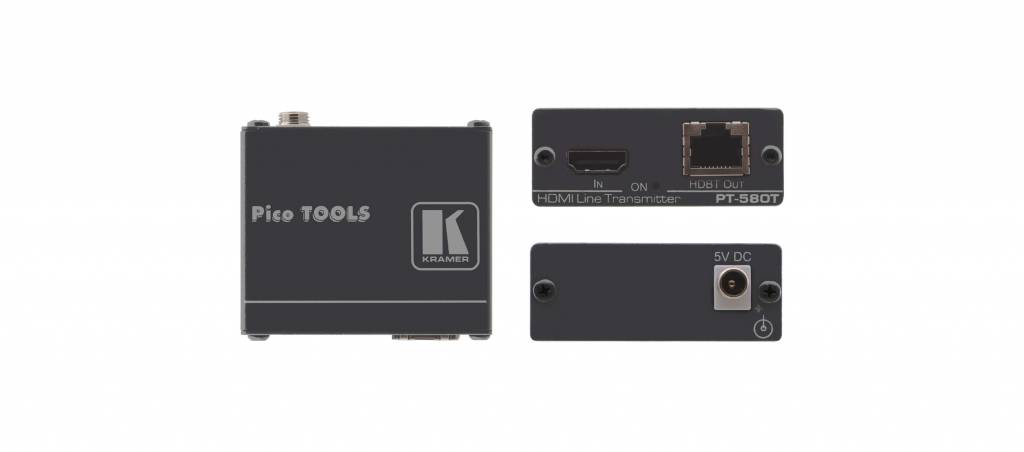

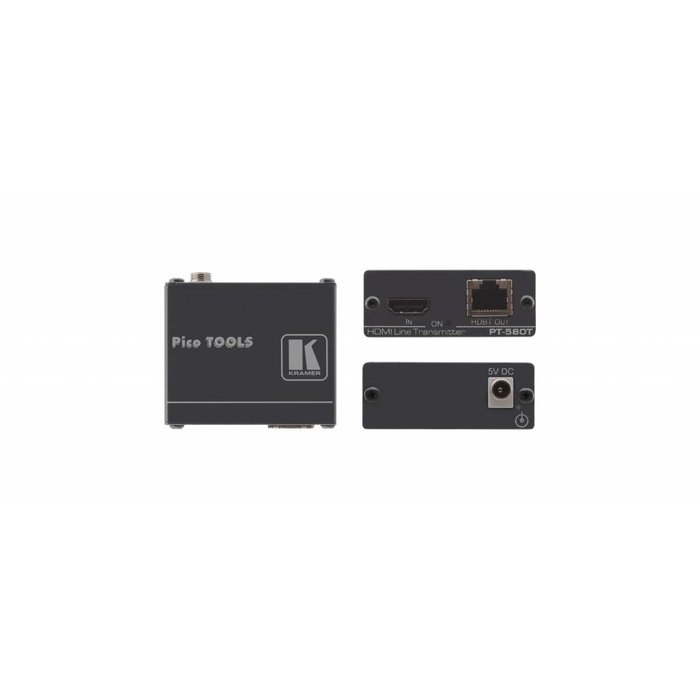

PT−580T is a compact high−performance, long−reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI signal over twisted pair. PT−580T converts the input signal into the transmitted HDBaseT signal. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

•  High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. PT–580T is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
•  HDMI Signal Extension — HDMI 2.0 and HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D. EDID and CEC signals are passed through from the source to the display.
•  I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
•  Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
•  Cost–effective Maintenance — Status LED indicator facilitates easy local maintenance and troubleshooting.
•  Easy Installation — Compact Pico TOOLS™ fan–less enclosure for dropped–ceiling or discreet mounting, or side–by–side mounting of 4 units in a 1U rack space with the recommended rack adapter.

APPLICATIONS

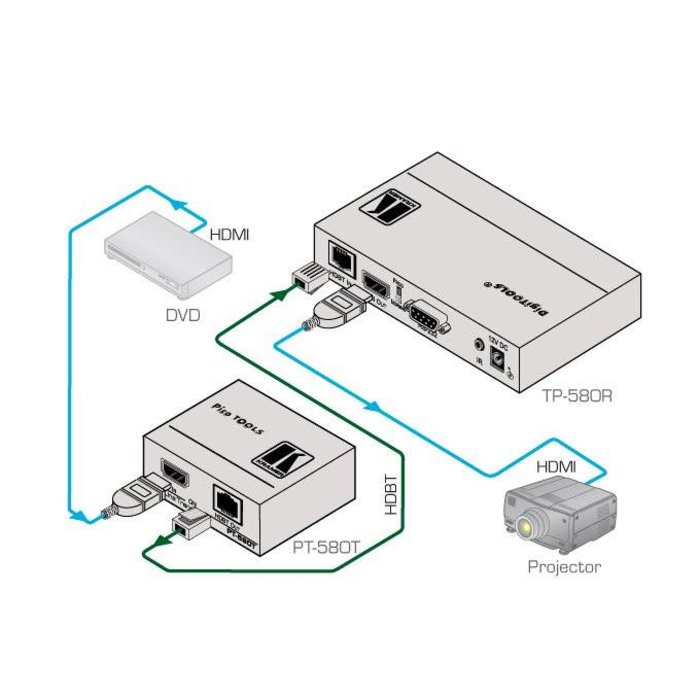

•  Long–distance AV signal extension for multi–room, large dividable auditoriums and lecture hall connectivity
•  AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities

SPECIFICATIONS

INPUT

• 1 HDMI on an HDMI connector

OUTPUT

• 1 HDBT on an RJ–45 female connector

EXTENSION LINE

• HDBaseT 1.0 compliant
• Up to 40m (130ft) at 4K @60Hz (4:2:0)
• Up to 70m (230ft) at full HD (1080p @60Hz 36bpp)
• Note: When using Kramer HDBaseT cables

VIDEO

• Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
• Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
• HDMI 2.0 and HDCP 2.2 signal compliance

POWER SOURCE

• 5V DC, 2A

POWER CONSUMPTION

• 5V DC, 570mA

ENCLOSURE

• Pico Tools size, aluminum type

COOLING

• Convection ventilation

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power supply unit

PRODUCT DIMENSION

• 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H

PRODUCT WEIGHT

• 0.1kg (0.2lbs) approx.

SHIPPING DIMENSION

• 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H

SHIPPING WEIGHT

• 0.4kg (0.9lbs) approx.
