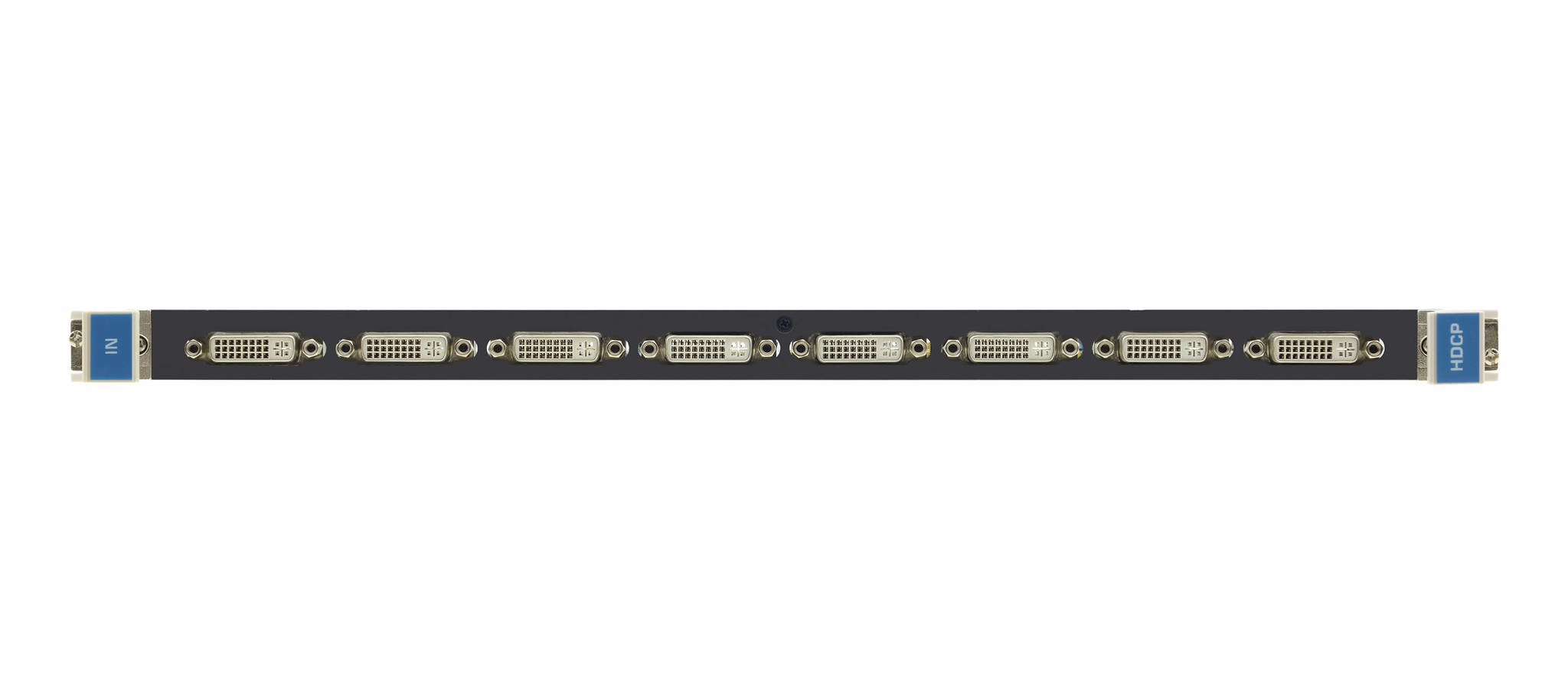

HDCP−IN8−F64 is an eight−channel HDMI over DVI (HDCP) input card for the VS−6464 Series Modular Multi−Format Digital Matrix Switchers. The HDCP−IN8−F64 inputs eight HDMI/HDCP signals into the chassis.

Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
HDCP Compliant.
HDMI Support.
3D Pass–Through.
DVI Connectors.

Top of Form

APPLICATIONS

Conference rooms
Rental and staging

Technische specificaties

INPUTS

8 DVI–D on DVI Molex 24–pin (F) connectors

BANDWIDTH PER CHANNEL

2.25Gbps

TOTAL BANDWIDTH

6.75Gbps

POWER CONSUMPTION

20.5W

3D PASS THROUGH

Supported

OPERATING TEMPERATURE

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

–40° to +70°C (–40° to 158°F)

HUMIDITY

10% to 90%, RHL non–condensing

STANDARD COMPLIANCE

HDCP, HDMI

SAFETY REGULATORY COMPLIANCE

CE, FCC

ENVIRONMENTAL REGULATORY COMPLIANCE

Complies with appropriate requirements of RoHs and WEEE

PRODUCT DIMENSIONS

39.50cm x 18.00cm x 2.00cm (15.55" x 7.09" x 0.79" ) W, D, H

PRODUCT WEIGHT

0.7kg (1.5lbs) approx.

SHIPPING DIMENSIONS

47.70cm x 23.50cm x 4.80cm (18.78" x 9.25" x 1.89" ) W, D, H

SHIPPING WEIGHT

1.0kg (2.1lbs) approx.

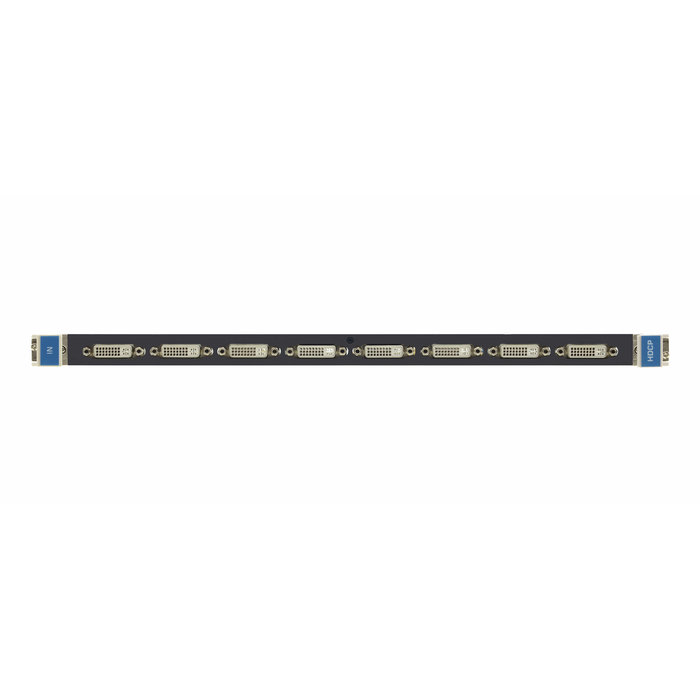

Kramer HDCP-IN8-F64 - 8–Channel DVI (HDCP) Input Card
