Beschrijving

H2A−IN2−F34 is a two−channel 4K@60Hz (4:4:4) HDMI input card with configurable analog audio features for compatible Kramer Modular Multi−Format Digital Matrix Switchers. H2A−IN2−F34 inputs two 4K HDMI signals with selectable ARC (on the upper port), embedded, or de−embedded unbalanced stereo audio.

Max. Data Rate — 18Gbps (6Gbps per graphics channel).
Max. Resolution — 4K@60Hz (4:4:4).
HDMI Support — 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 multi–channel audio.
Analog Audio Embedding/De–embedding — On the same jack and ARC.
HDCP 2.2/1.4 Compliant.
3D Pass–Through.
EDID Capture — Copies and stores the EDID from a display device.
Kramer Equalization and re–Klocking Technology.

Technische specificaties

INPUTS

2 HDMI: On female HDMI connectors

PORTS

2 Analog Audio: On 3.5mm mini jacks

VIDEO

Max Data Rate: 18Gbps (6Gbps per graphics channel)
Max Resolution: 4K@60Hz (4:4:4)
HDMI Support: 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 multi–channel audio
Content Protection: HDCP 2.2/1.4 compliant

EXTENSION LINE

Range at 4K60 (4:2:0) or 4K30 (4:4:4) Resolution: 10m (32ft)
Range at 1080p 12 bit (deep color) Resolution: 15m (49ft)

POWER

Consumption: 5W

ENVIRONMENTAL CONDITIONS

Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

Safety: CE

PRODUCT DIMENSIONS

12.90cm x 24.90cm x 2.00cm (5.08" x 9.80" x 0.79" ) W, D, H

PRODUCT WEIGHT

0.2kg (0.5lbs) approx.

SHIPPING DIMENSIONS

16.50cm x 34.50cm x 5.90cm (6.50" x 13.58" x 2.32" ) W, D, H

SHIPPING WEIGHT

0.4kg (0.9lbs) approx.

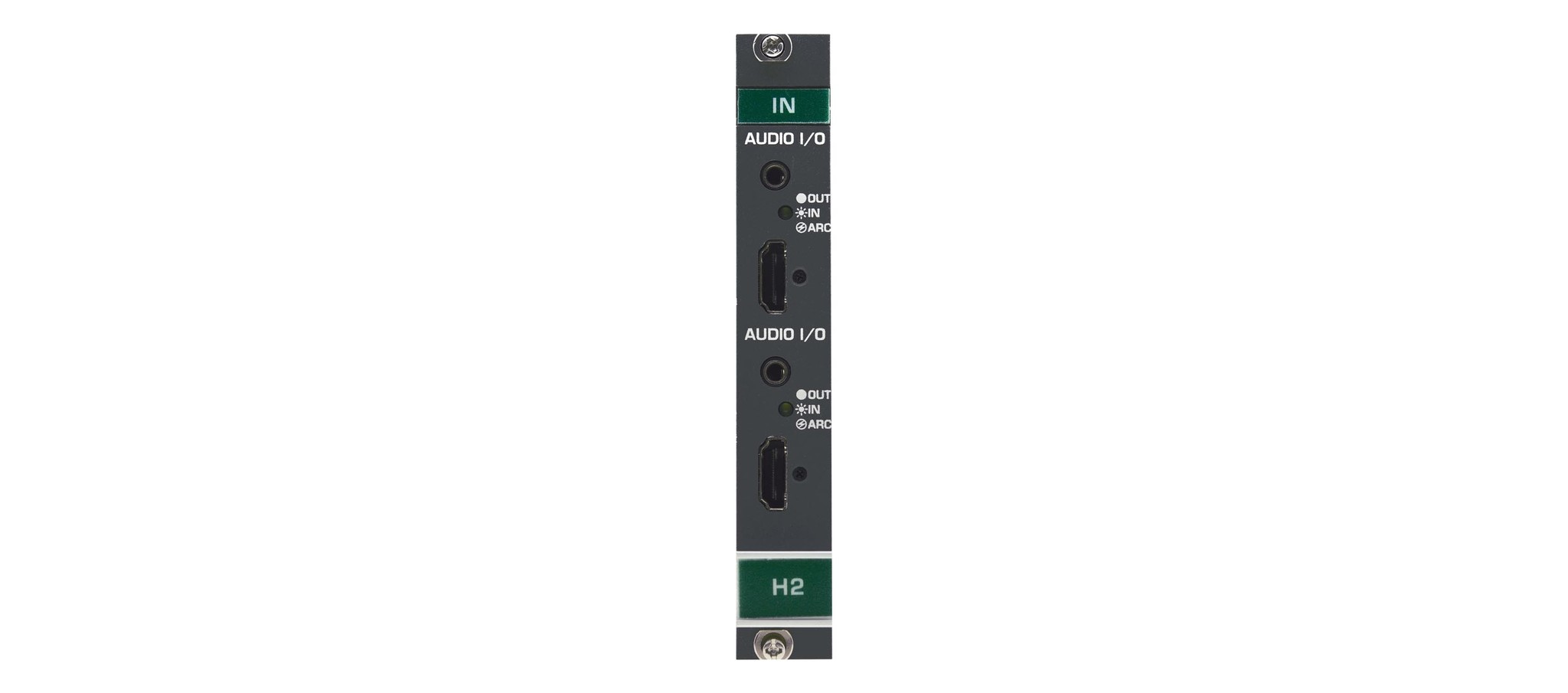

Kramer H2A-IN2-F34 - 2–Channel 4K HDR HDMI Input Card with Analog Audio
