DTAxrD2−IN2−F34 is a 2−channel, 4K@60Hz (4:4:4), DSC, HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair receiver card for compatible Kramer Modular Multi−Format Digital Matrix Switchers. DTAxrD2−IN2−F34 inputs two extended−reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, Ethernet, and IR from the line to the chassis.

Max. Data Rate — 18Gbps (6Gbps per graphics channel), 10Gbps DSC over CAT cable.
Max. Resolution — 4K@60Hz (4:4:4).
Analog Audio Embedding/De–embedding — On the same jack.
HDBaseT Technology — HDTV compatible, HDCP 2.2/1.4 compliant.
System Range — Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
3D Pass–Through.

Technische specificaties

INPUTS

2 HDBaseT: On RJ–45 connectors

PORTS

2 Unbalanced Audio: On a 6–pin terminal block connector
2 RS-232: On a 6–pin terminal block connector
2 IR: On a 4–pin terminal block
1 Ethernet: On an RJ–45 connector

EXTENSION LINE

Compression: Low–level standard DSC compression for signals above 4K@60 (4:2:0)
4K@60 (4:4:4) Range with Compression: Up to 100m (330ft)
4K@60 (4:2:0) Range with No Compression: Up to 100m (330ft)
Full HD (1080p@60Hz) Range with No Compression: Up to 130m (430ft),
Full HD (1080p@60Hz) Range in Ultra−Long Mode: Up to 180m (590ft)
Compliance: HDBaseT 2.0
Note: Use Kramer shielded cables to achieve optimum extension ranges

VIDEO

Max Bandwidth with Compression: 17.95Gbps (5.98Gbps per graphic channel)
Max Bandwidth with No Compression: 10.2Gbps (3.4Gbps per graphic channel)
Max Resolution with Compression: 3840x2160@60Hz 4:4:4 24bpp
Max Resolution with No Compression: 4096x2160@60Hz 4:2:0 24bpp
Compliance: HDCP 2.2, HDR 10

EXTENDED ETHERNET

Bandwidth: Up to 100Mbps

EXTENDED RS-232

Baud Rate: 300 to 115200

POWER

Consumption: 21.5W

ENVIRONMENTAL CONDITIONS

Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

Safety: CE
Environmental: Complies with appropriate requirements of RoHs and WEEE

PRODUCT DIMENSIONS

25.00cm x 13.00cm x 2.00cm (9.84" x 5.12" x 0.79" ) W, D, H

PRODUCT WEIGHT

0.2kg (0.5lbs) approx.

SHIPPING DIMENSIONS

29.30cm x 16.50cm x 5.90cm (11.54" x 6.50" x 2.32" ) W, D, H

SHIPPING WEIGHT

0.4kg (0.9lbs) approx.

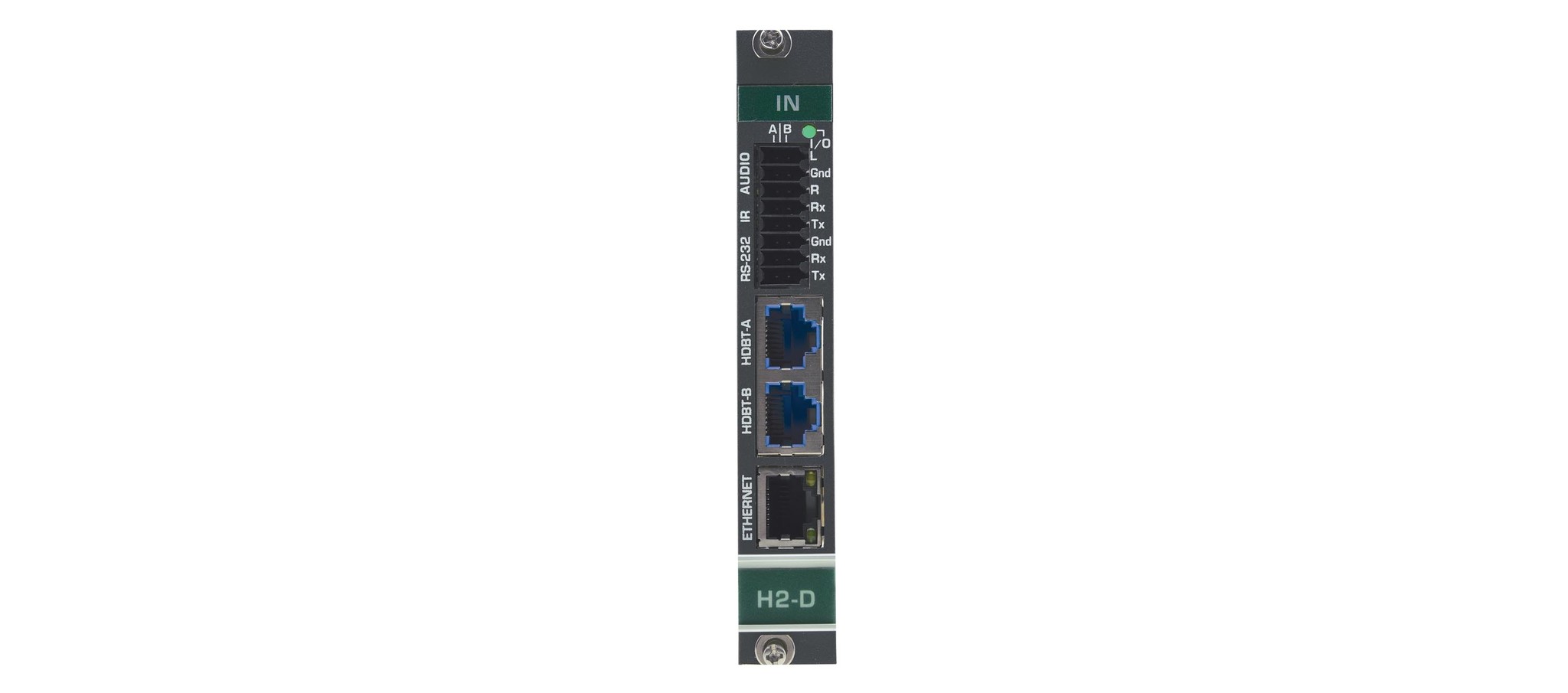

Kramer DTAxrD2-IN2-F34 - 2–Channel 4K HDR HDMI over HDBaseT 2.0 DSC Input Card with Analog Audio
