DTAxrC2−IN2−F34 is a 2−channel, 4K@60Hz (4:4:4), CSC, HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair receiver card for compatible Kramer Modular Multi−Format Digital Matrix Switchers. DTAxrC2−IN2−F34 inputs two extended−reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, Ethernet, and IR from the line to the chassis.

Max. Data Rate — 18Gbps (6Gbps per graphics channel), 10Gbps CSC over CAT cable.
Max. Resolution — 4K@60Hz (4:4:4).
Analog Audio Embedding/De–embedding or ARC — On the same jack.
HDBaseT Technology — HDTV compatible, HDCP 2.2/1.4 compliant.
System Range — Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
3D Pass–Through.
PoE (Power over Ethernet) Enabled — Provides PoE power to a connected device with the Kramer PoE Power Supply Add–On PS–4812 (sold separately).

Technische specificaties

INPUTS

2 HDBaseT: On RJ–45 connectors

PORTS

2 Unbalanced Audio: On a 6–pin terminal block connector
2 RS-232: On a 6–pin terminal block connector
2 IR: On a 4–pin terminal block
1 Ethernet: On an RJ–45 connector

EXTENSION LINE

Standard Compression: Up to 100m (330ft) at 4K@60Hz (4:4:4), 4K@60Hz (4:2:0) or 4K@30Hz (4:4:4)
Up to 180m (590ft) at full HD (1080p @60Hz 24bpp)
High Compression: Up to 100m (330ft) at 4K@60Hz (4:4:4), or 4K@60Hz (4:2:0)
Up to 180m (590ft) at 4K@30Hz (4:4:4)
Up to 200m (650ft) at full HD (1080p @60Hz 24bpp)
No Compression: Up to 100m (330ft) at 4K@60Hz (4:2:0)
Up to 180m (590ft) at full HD (1080p @60Hz 24bpp)
Standards Compliance: HDBaseT 1.0
Note: When using recommended Kramer cables

VIDEO

Max Data Rate: Up to 18Gbps (6Gbps per graphic channel), 10Gbps CSC over CAT cable
Standard Compression Max Resolution: 4096x2160@60Hz (4:4:4) 24bpp
High Compression Max Resolution: 3840x2160@60Hz (4:4:4) 24bpp
No-Compression Max Resolution: 4096x2160@60Hz (4:2:0) 24bpp
Compliance: HDCP 2.2, HDR 10
HDMI Support: Deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0

EXTENDED ETHERNET

Bandwidth: Up to 100Mbps

EXTENDED RS-232

Baud Rate: 300 to 115200

POWER

Consumption: 21.5W

ENVIRONMENTAL CONDITIONS

Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

Safety: CE
Environmental: Complies with appropriate requirements of RoHs and WEEE

PRODUCT DIMENSIONS

25.00cm x 13.00cm x 2.00cm (9.84" x 5.12" x 0.79" ) W, D, H

PRODUCT WEIGHT

0.3kg (0.7lbs) approx.

SHIPPING DIMENSIONS

16.50cm x 34.50cm x 5.90cm (6.50" x 13.58" x 2.32" ) W, D, H

SHIPPING WEIGHT

0.5kg (1.1lbs) approx.

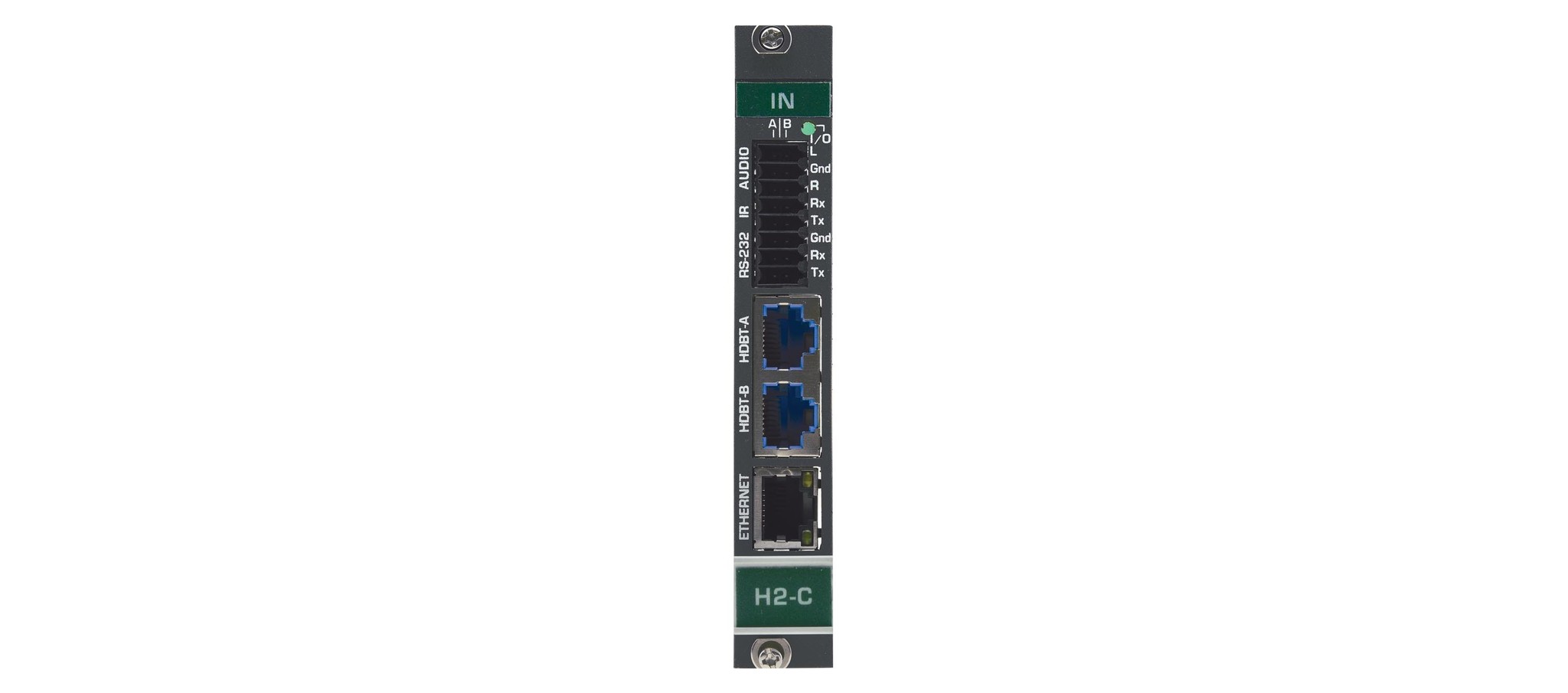

Kramer DTAxrC2-IN2-F34 - 2–Channel 4K HDR HDMI over HDBaseT Input Card with Analog Audio & PoE Provider
