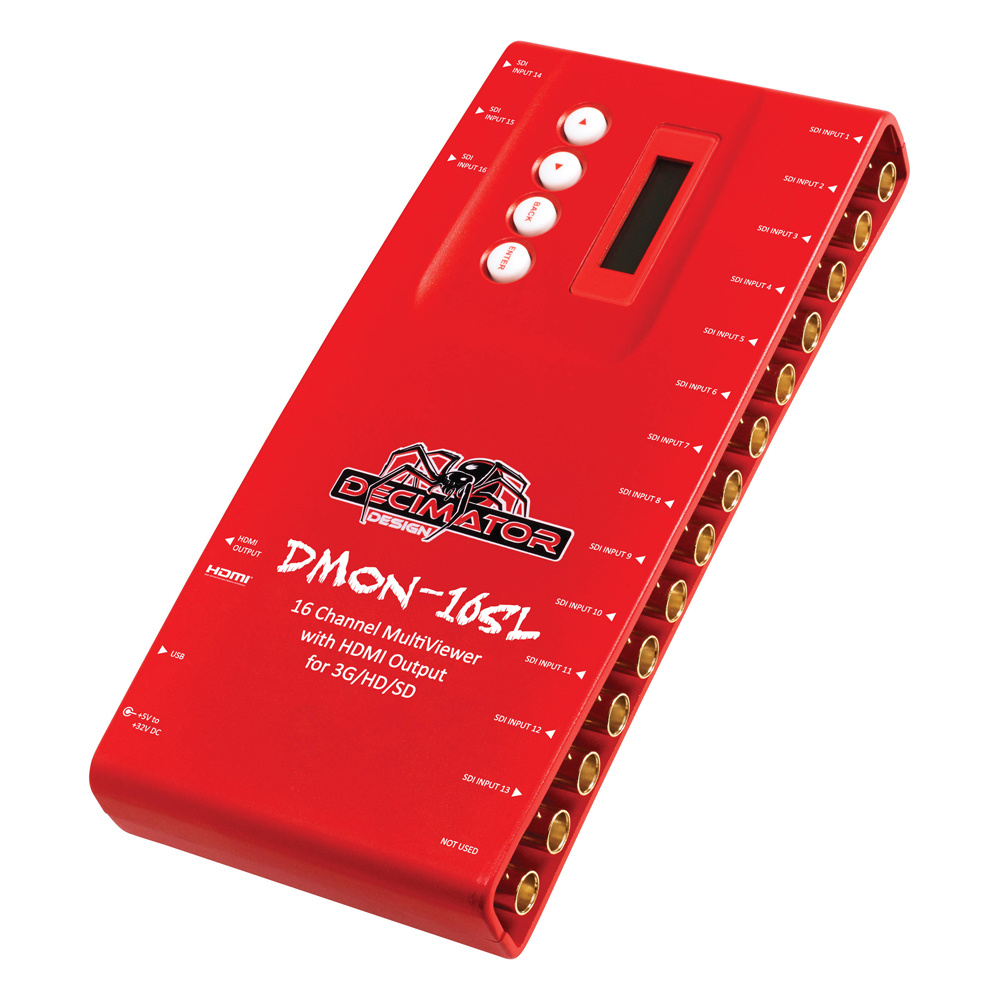

Decimator Design DMON-16SL - 1 to 16 Channel MultiViewer with HDMI Output

This multi-viewer is used to display up to 16 3G-/HD-/SD-SDI input signals on a single screen. All important settings can be made with the buttons on the top and checked on the LC display. There are many ways to enable resp. disable overlays and customize the view to your needs.

• Support for 3G level A and level B on the inputs

• Deployable as 3G-/HD-/SD-SDI 1 to 16 channel Multi-Viewer

• Customizable layouts with various standard layouts

• 16 Character UMD (Under Monitor Display) overlay per window (enable/disable, custom positioning and size)

• Audio ID overlay

• Load and restore custom layouts

• Fast switching between inputs using full-screen scaling

• Selectable output format in both full-screen and multi-viewer mode

• Low latency buffering for each input allowing non-synchronous inputs

• Support for 26 video formats with automatic detection of input signals

• Each window is independent of the others, allowing any 3G-/HD-/SD-SDI signal format of any frame rate to be displayed simultaneously

• Variable aspect ratios per window

• Pass-Through mode allowing any of the 16 inputs to be selected and routed to the HDMI output

• USB port for control and firmware updates

• Most settings can be made using the buttons on the top and checked on the LC display
