Beschrijving

The HRS-30 is a portable recorder with an integrated 10.1" monitor that can be used as a field recorder and also a playback system.

The HRS-30 records from both HD and SD video equipment via HD/SD-SDI and supports 1080i, 720p, 576i, 480i video formats, providing a choice of recording formats in MEPG-II Long-GOP or intra-frame (i-frame) with 4:2:2 colour sampling.

The recorded MXF/OP1A file format is compatible with a wide range of NLE and play out systems.

Recorded files are stored to a removable caddy which is compatible with 2.5" HDD & SSD drives.Removable hard drive

Technische specificaties

Support NTFS format, no 2GB/4GB file limitation
HD/SD SDI input, output and loop thru with embedded audio
HDMI output with embedded audio
Video resolutions:
- 1920x1080 23.97p/24p
- 1920x1080 50i/59.94i/60i
- 1280x720 50P/59.94P/60P
- 720x576i or 720x480i
SD mode recording:
- Selectable 8,15,30 or 50 Mbps Long GOP 4:2:0 or 4:2:2
- 100/125Mbps i-frame 8-bit 4:2:2
Recording file formats: MXF/OP1A, MOV quick time*

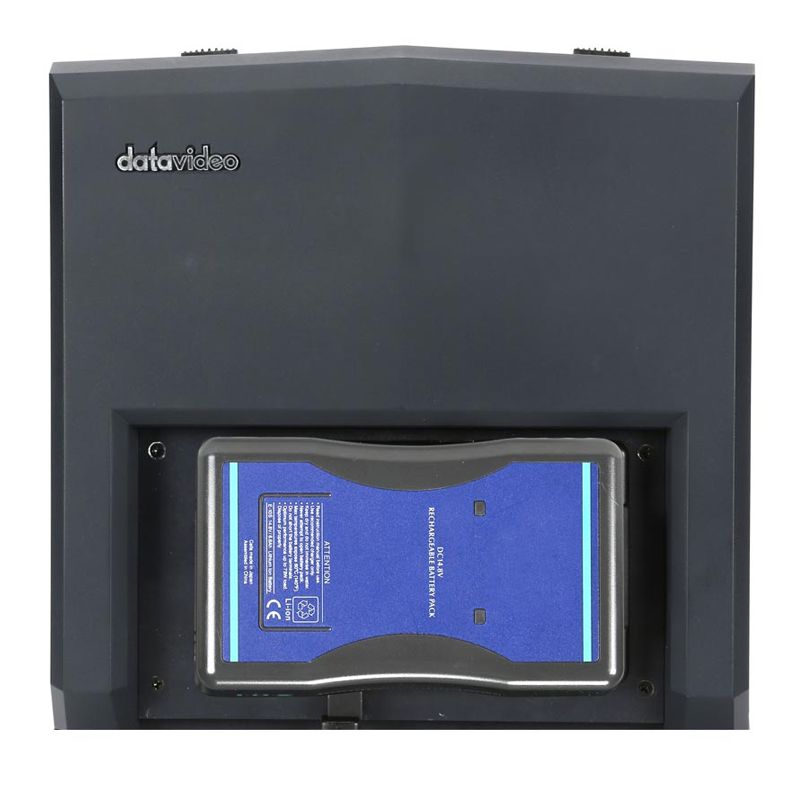

V mount Battery and Anton Bauer battery support.
Wide view angle colour TFT LCD display for OSD operation
10.1" 16:9 monitor resolution : 1280 x 800 dots.
10.1" Dot pitch : 0.0565（W）× 0.1695（H）mm

10.1" monitor features

Internal colour bar
Blue only
Audio indicator
Safe area
Time code display
Colour temperature adjustment
NTSC/PAL auto switching

N.B. HRS-30 cannot charge the V-mount battery.

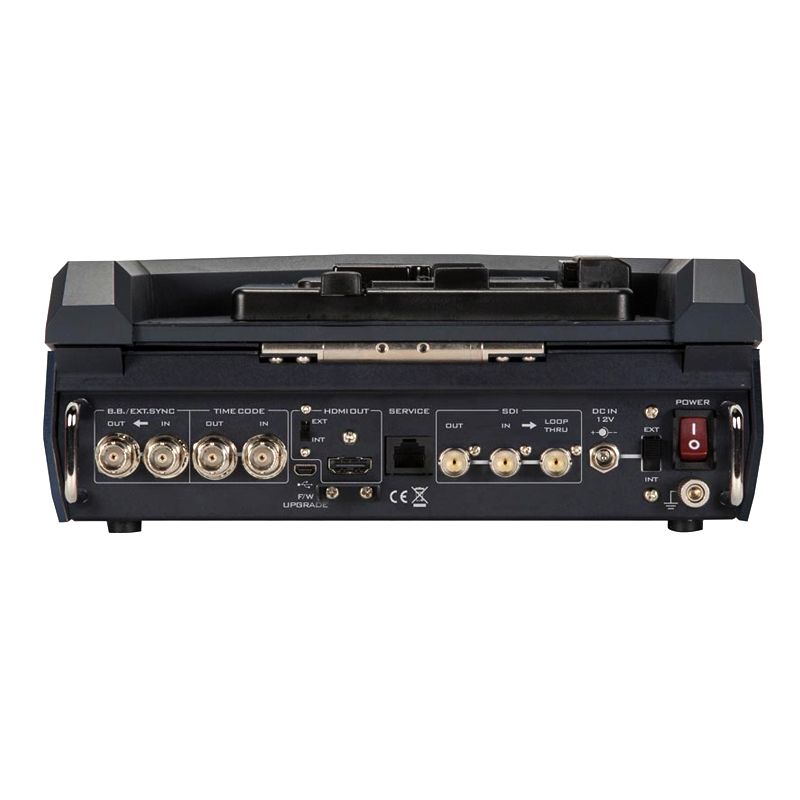

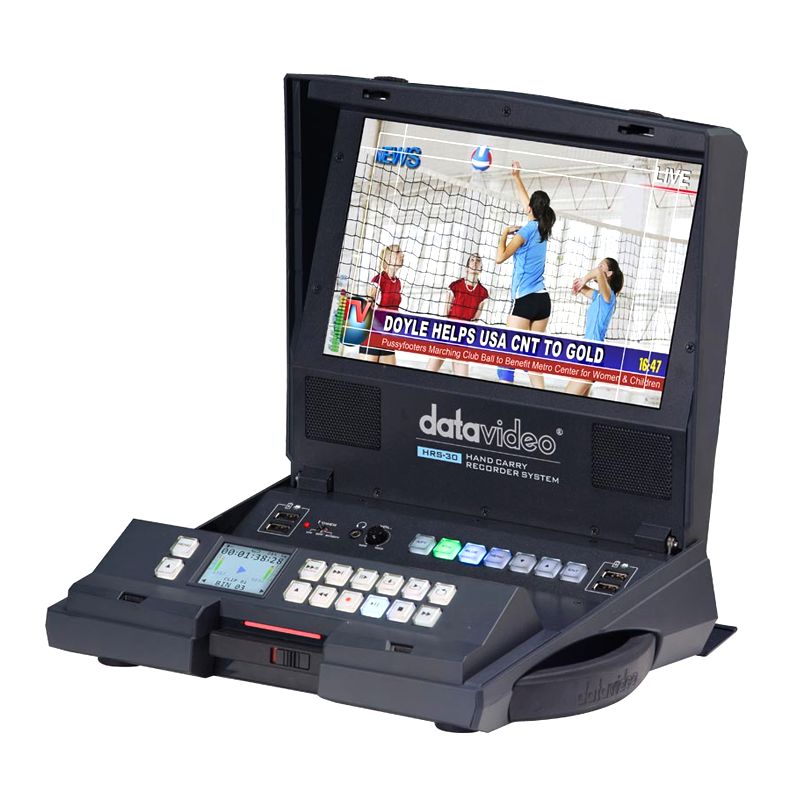

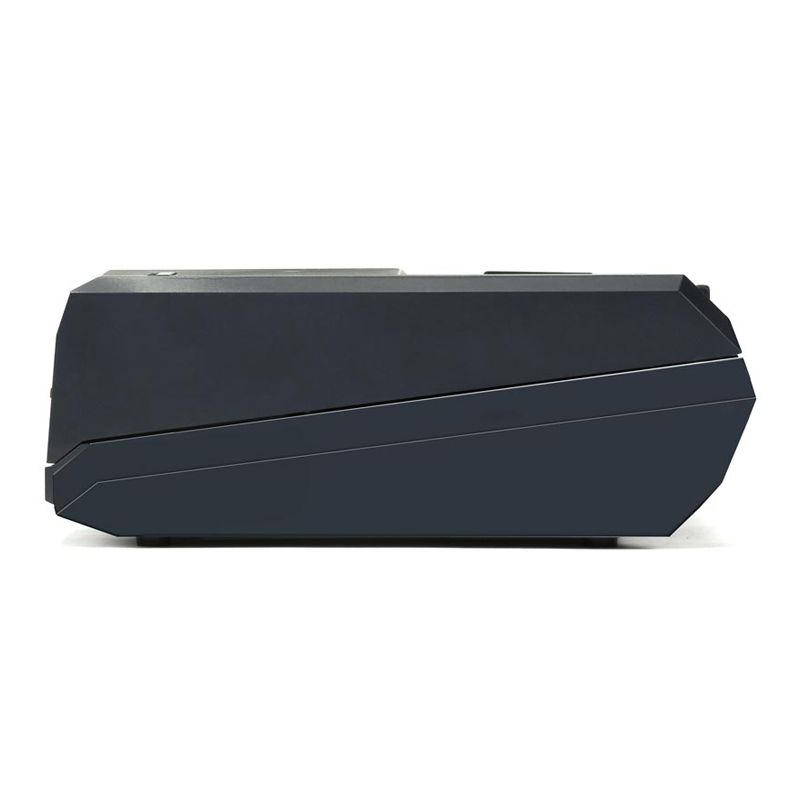

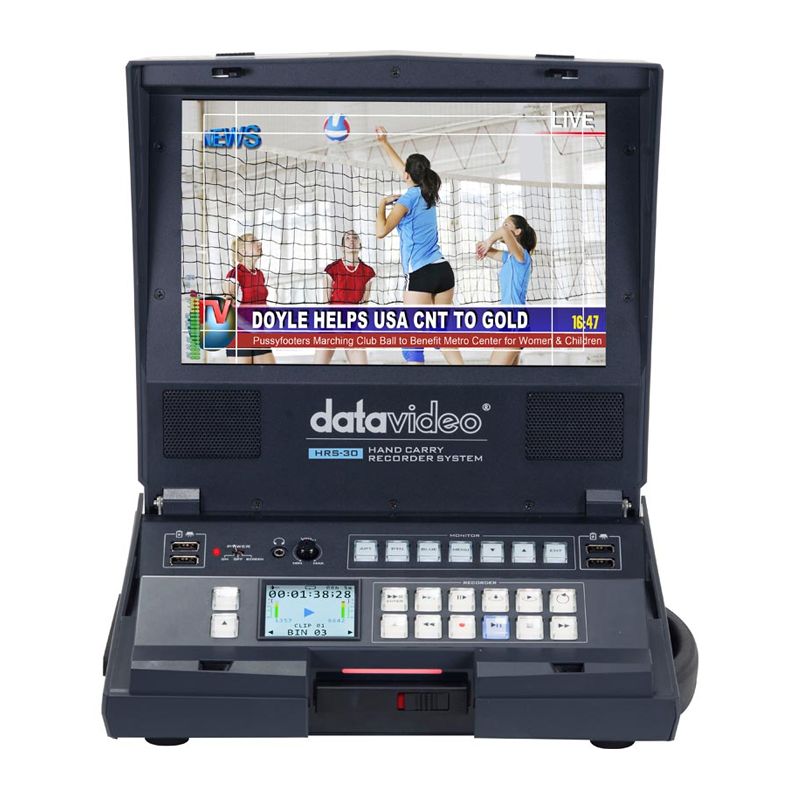

Datavideo HRS-30 HD recorder and monitor in one
