With 10G Ethernet on Blackmagic Studio Converter and Blackmagic Studio Camera 4K Pro, you can connect all camera signals using one Ethernet IP link connection. That means the camera feed, return program feed, timecode, reference, tally, talkback and control are all sent down the single cable. That's the same benefits of SMPTE fiber, but the standard 10G copper Ethernet cable is much lower cost. The Blackmagic Studio Converter allows breakout of all the video, audio and talkback connections at the studio end. It also includes a massive power supply that powers the camera down the Ethernet cable, so you don't even need a power source near the camera!

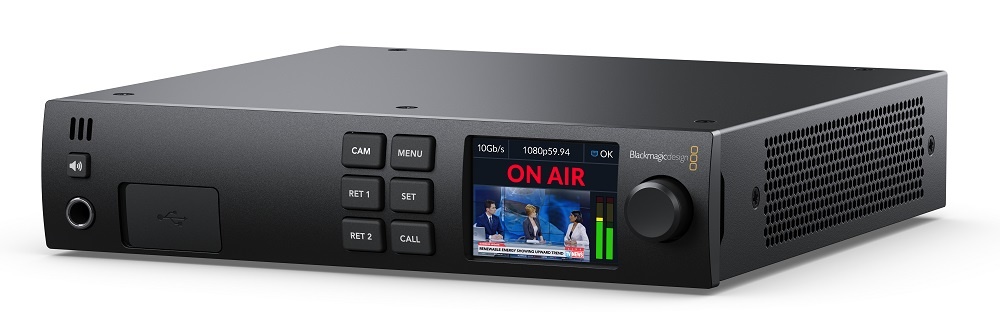

Blackmagic Studio Converter

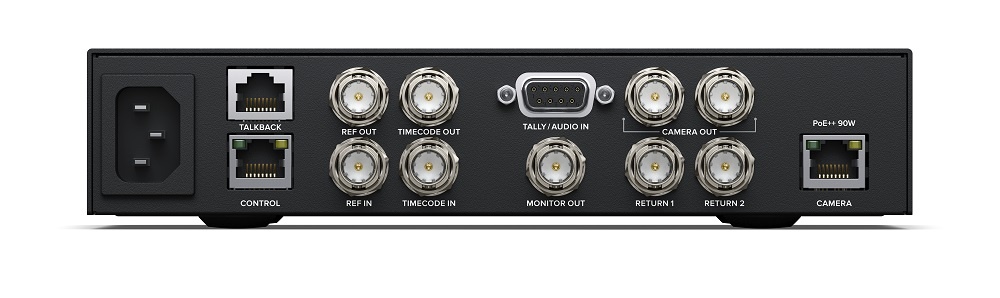

Connections
SDI Video Inputs
2
SDI Video Outputs
2
SDI Monitor Outputs
1
SDI Rates
1.5G, 3G, 6G, 12G.
Built in Speaker
Mono
Analog Audio Inputs
2 channel analog Program audio in supported via 9‑pin connector.
Analog Audio Outputs
1 x 6.35 mm headphone jack.
SDI Audio Input
Return 1 with 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI.
4 talkback channels on 13, 14, 15 and 16.
Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI.
SDI Audio Output
2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI.
4 talkback channels on 13, 14, 15 and 16.
Timecode Connections
1 x BNC In, 1 x BNC Out.
Reference Connections
1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
Talkback Audio
SDI channels 13 and 14 for Engineering talkback.
SDI channels 15 and 16 for Production talkback.
RJ-45 Talkback connector for analog external talkback systems.
Screen
2.2 inch LCD
Ethernet
1 x 10Gb/s PoE RJ‑45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable.
1 x 1Gb/s for external control and software updates.
Computer Interface
1 x USB-C.
Standards
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p50, 1080p59.94, 1080p60,
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97,
2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 292M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Audio Sampling
Television standard sample rate of 48kHz and 24‑bit.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 709, REC 2020.
Multiple Rate Support
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
Control
Built in Control Panel
7 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
External Control
RJ-45 1Gb/s Ethernet.
Software
Software Included
Camera Utility for firmware update.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Power Requirements
Power Supply
100 - 240V AC input.
Power Supply
1 x Internal 100 - 240V AC 50/60Hz.
Power Usage
40 W max plus camera power usage.
Optional Accessories
Blackmagic Universal Rack Shelf
Blackmagic Studio Camera 4K Pro
Environmental Specifications
Operating Temperature
0° to 45° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
