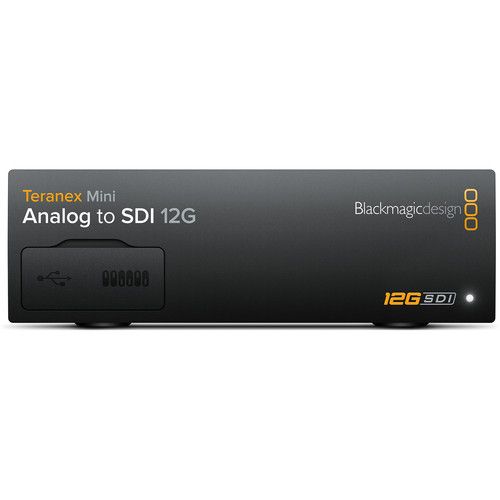

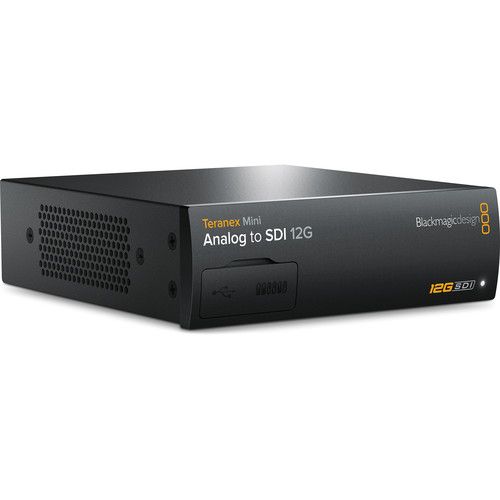

Blackmagic Design Teranex Mini - Analog to SDI 12G
Convert from 12G-SDI to Analog. Use SD, HD, 6G and 12G-SDI rates and convert to analog video output. Built in down converter lets you connect Ultra HD sources to component video equipment in SD or HD. Allows you to connect analog equipment including Betacam SP, VHS, and video monitors.
Teranex Mini - Analog to SDI 12G
SD card with software and manual

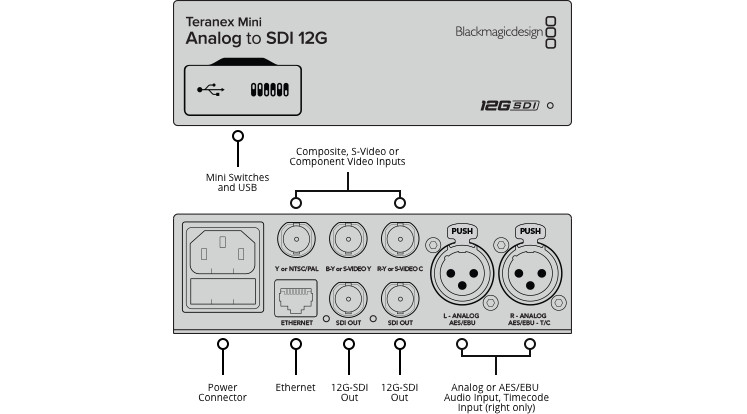

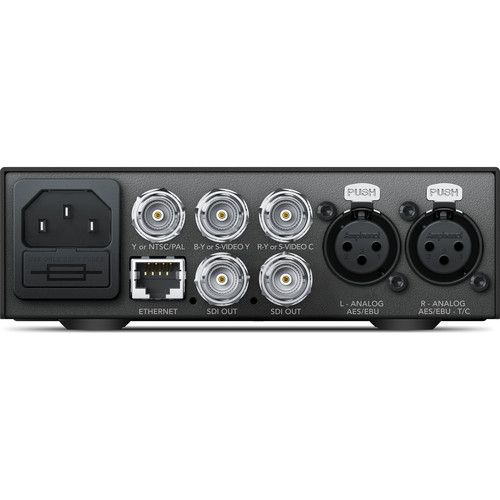

SDI Video Input
1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Output
1 x 12G-SDI loop output.
Analog Audio Output
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode output.
AES/EBU Audio Output
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K.
Updates and Configuration
USB or Ethernet.
Re-Clocking
Yes
