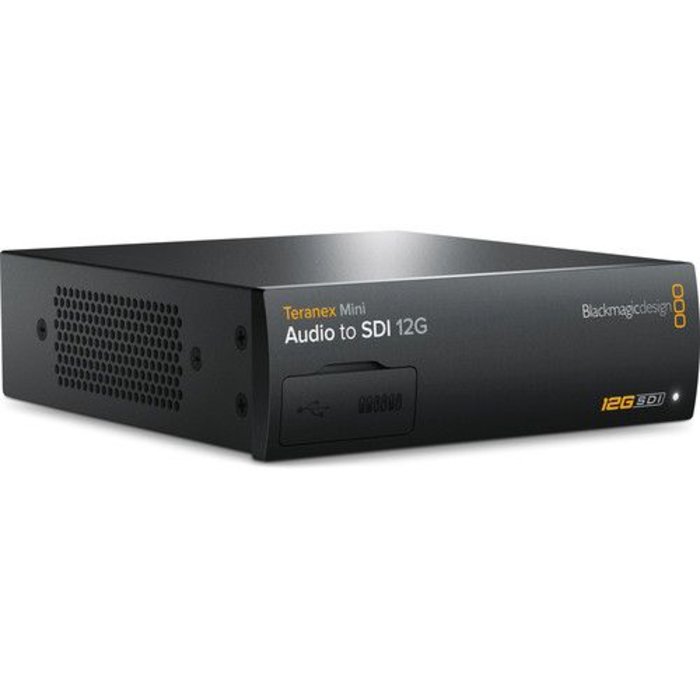

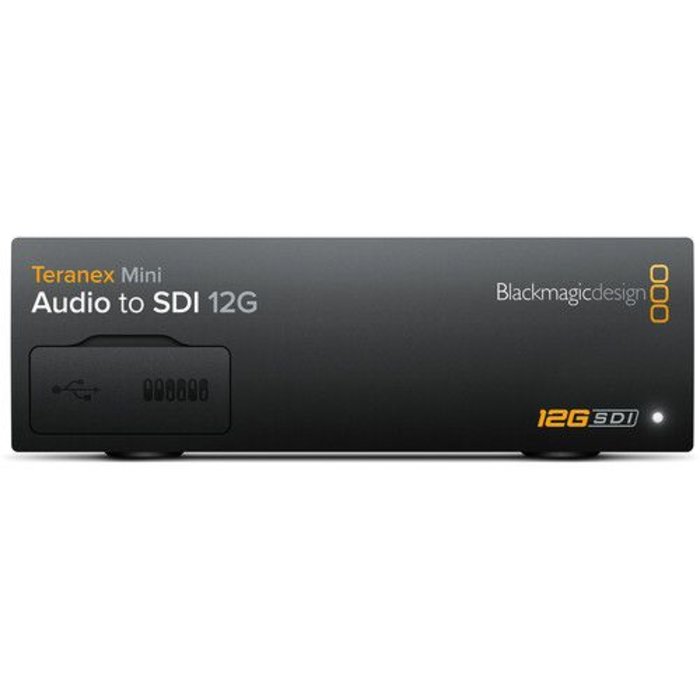

Blackmagic Design Teranex Mini - Audio to SDI 12G
Embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection. Take audio from devices such as audio mixers, iPods and analog decks and embed it into SDI video connections for use with SDI routers and decks.
Teranex Mini - Audio to SDI 12G
SD card with software and manual

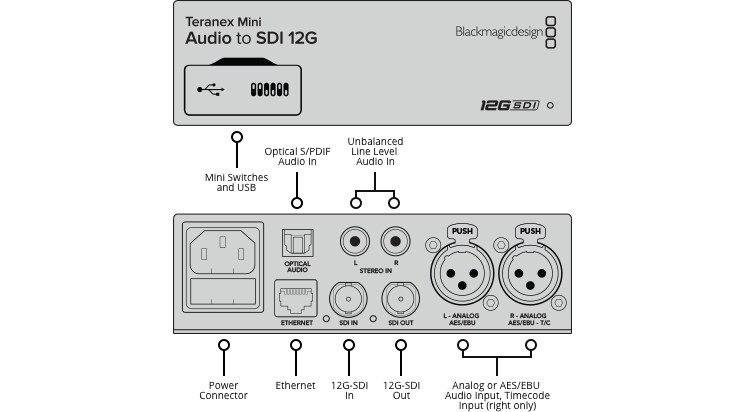

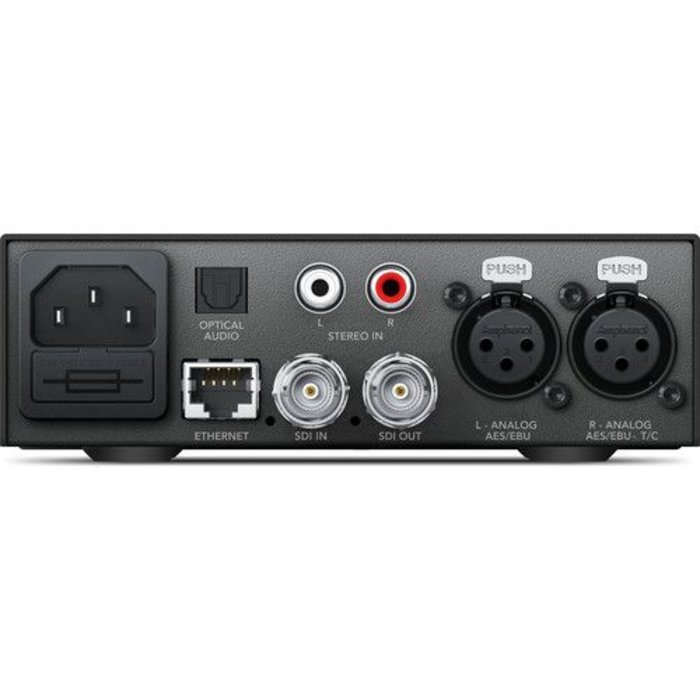

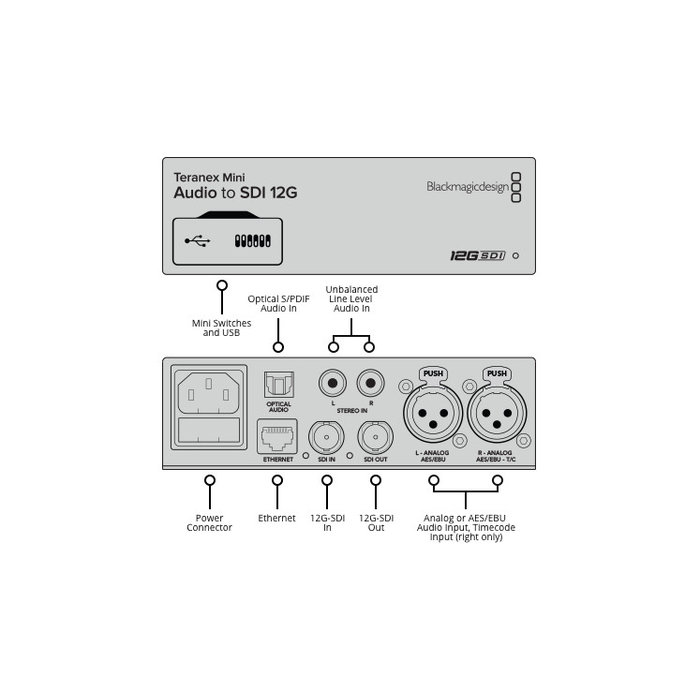

SDI Video Input
1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Output
1 x 12G-SDI output.
Analog Audio Input
2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.
AES/EBU Audio Input
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
Optical Audio Input
S/PDIF Signal with TOSLINK Connector.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K.
Updates and Configuration
USB or Ethernet.
Re-Clocking
Yes
