Blackmagic Design ATEM Camera Converter
The Blackmagic Design ATEM Camera Converter enables extension of SDI (serial digital interface) / HDMI cameras to distances up to 28 miles (45km) via an optical fiber link. You can connect your camera to the SDI/HDMI inputs to convert videos to optical signals. This optical fiber input can be connected to the switcher program feed to convert to SDI/HDMI outputs for monitoring. In addition, the SDI/HDMI outputs can be switched between return program and camera input for monitoring.
With an internal battery, the converter can be used at remote locations when the cameras are placed at far-off locations. Featured Talkback function allows the switcher operator to co-ordinate with camera operator via PC headsets or iPhone-compatible headphones. By embedding microphone audio into channels 15 and 16 of the camera optical fiber video output, the Talkback function listens to channels 15 and 16 of the optical fiber input on the headphones.
Using the 12V power connection, the converter can be connected to any power source or a car battery. By connecting the switcher’s program output to the ATEM Camera Converter via optical outputs, the camera converter illuminates the 2 tally LEDs using open standard tally packet in the SDI output. You can select the camera number using the USB software or by camera number button on the keypad. In addition, you can also view red color tally on the monitor by connecting external monitoring to the HDMI/SDI outputs.
Featuring an integrated belt clip, the camera converter can be attached to the belt for portability. With the help of a camera mount, the converter can be mounted onto a tripod. In addition, the camera converter features microphone inputs for audio capability.
Made of aircraft-grade aluminum, the camera converter can withstand bumps and shocks without breaking. Built-in button pad allows you to control power, microphone level, talkback and video, and battery indicators. You can update converters firmware via a USB port. The camera converter can be used for applications such as concerts, sporting events, lecture theaters, houses of worship, surveillance, or any remote camera location.
- Enables extension of SDI (serial digital interface) / HDMI cameras to distances up to 28 miles (45km) via optical fiber link
- You can connect your camera to the SDI/HDMI inputs to convert videos to optical signals
- Optical fiber input can be connected to the switcher program feed to convert to SDI/HDMI outputs for monitoring
- SDI/HDMI outputs can be switched between return program and camera input for monitoring
- Includes an internal battery
- Can be used at remote locations when the cameras are placed at far-off locations
- Featured Talkback function allows the switcher operator to co-ordinate with camera operator via PC headsets or iPhone-compatible headphones
- Talkback function listens to channels 15 and 16 of the optical fiber input on the headphones by embedding microphone audio into channels 15 and 16 of the camera optical fiber video output
- Can be connected to any power source or a car battery using the 12V power connection
- Illuminates the 2 tally LEDs using open standard tally packet in the SDI output by connecting the switcher's program output to the ATEM Camera Converter via optical outputs
- You can select the camera number using the USB software or by camera number button on the keypad
- You can view red color tally on the monitor by connecting external monitoring to the HDMI/SDI outputs
- Features an integrated belt clip
- Can be attached to the belt for portability
- Can be mounted onto a tripod with the help of a camera mount
- Features microphone inputs for audio capability
- Made of aircraft-grade aluminum
- Can withstand bumps and shocks without breaking

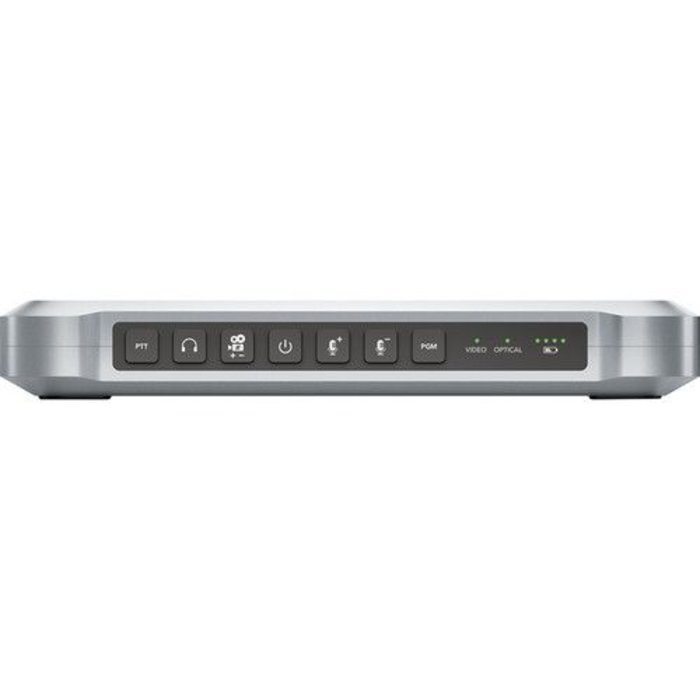

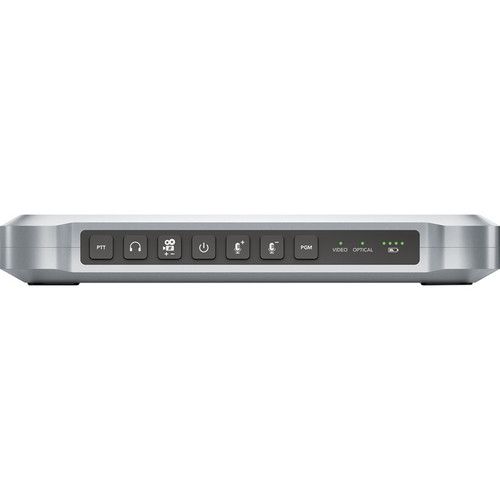

- Built-in button pad allows you to control power, microphone level, talkback and video, and battery indicators
- You can update converters firmware via a USB port
- Can be used for applications such as concerts, sporting events, lecture theaters, houses of worship, surveillance, or any remote camera location
Blackmagic Design ATEM Camera Converter
12V power supply

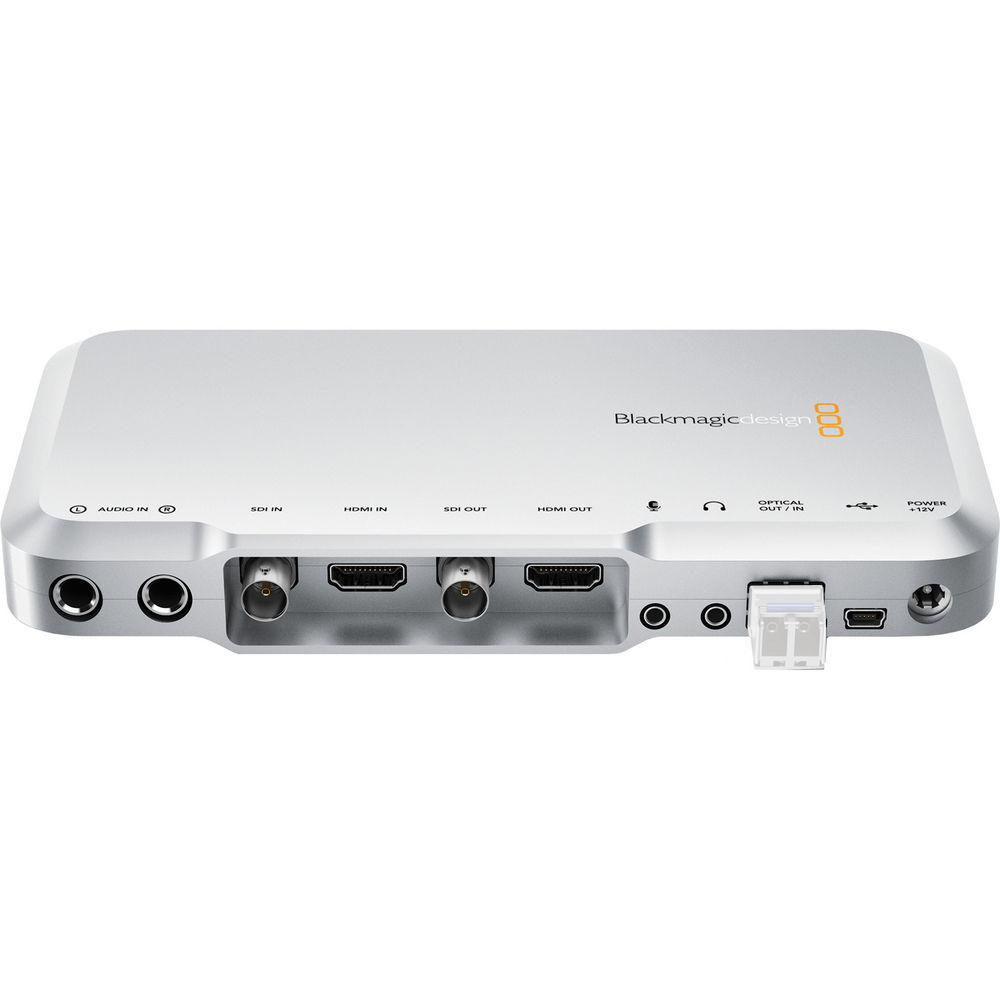

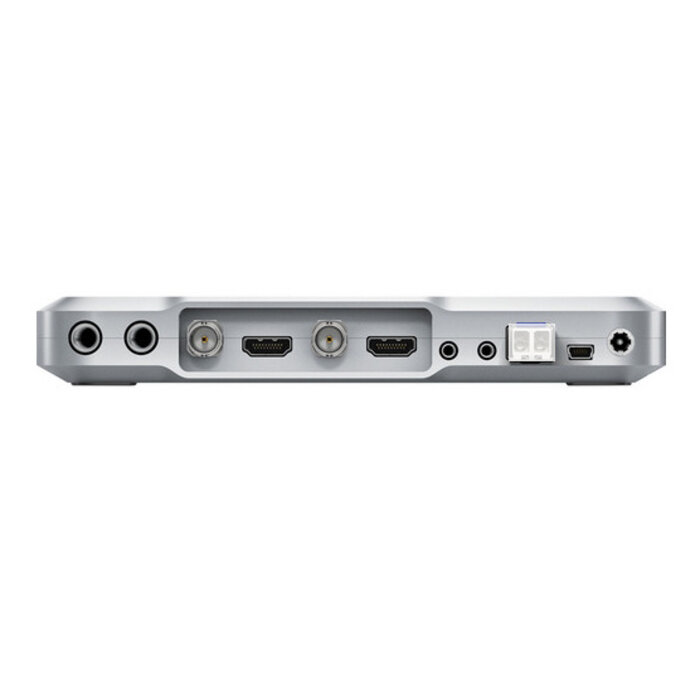

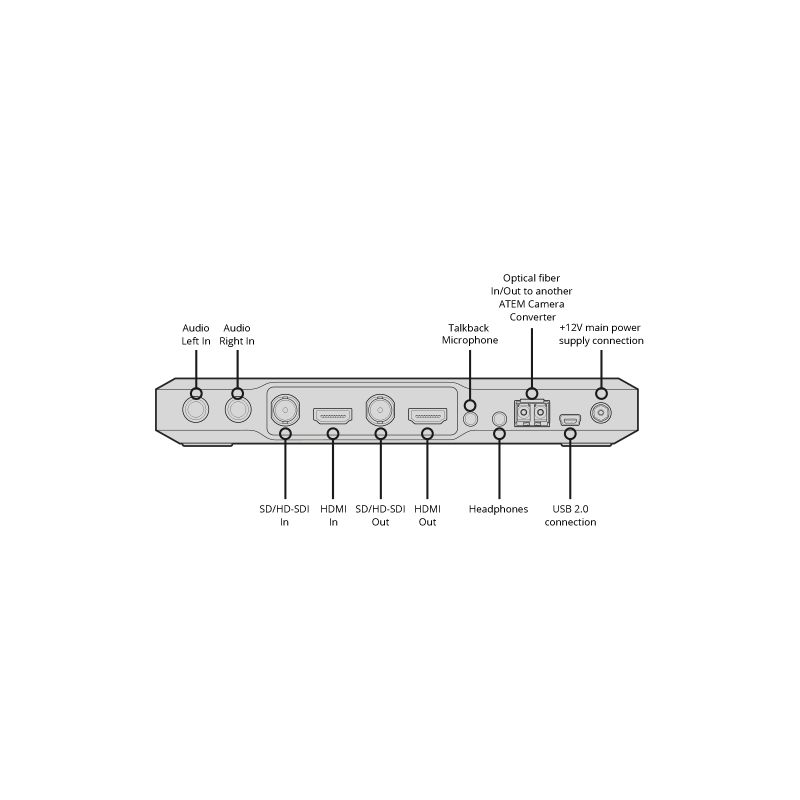

Connections
SDI Video Input
1 x 10 bit SD/HD switchable.
SDI Video Output
1 x 10 bit SD/HD switchable.
HDMI Video Input
1 x HDMI type A connector.
HDMI Video Output
1 x HDMI type A connector.
Talkback Audio
1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones, compatible with iPhone headsets.
Analog Audio2 x balanced 1/4" TRS connectors (stereo) microphone level in. When connected, replaces audio from SDI In or HDMI In.
Optical Fiber Video Input
1 x single mode SD/HD switchable with LC connector.
Optical Fiber Video Output
1 x single mode SD/HD switchable with LC connector.
Optical Fiber Audio Input
1 x single mode camera audio inputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio.
Optical Fiber Audio Output
1 x single mode camera audio outputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio.
Computer Interface
1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control.
Standards
SDI Format Support
525i59.94 NTSC, 625i50 PAL
720p50, 59.94, 60
1080p23.98, 24, 25, 29.97,30, 50, 59.94, 60
1080PsF23.98, 24, 25, 29.97, 30
1080i50, 59.94, 60
2K Format Support
1080p23.98, 24, 25
1080PsF23.98, 24, 25
2K 23.98PsF, 24PsF, 25PsF
HDMI Format Support
525i59.94 NTSC, 625i50 PAL
720p50, 59.94, 60
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF23.98, 24, 25, 29.97, 30
1080i50, 59.94, 60
SDI Compliance
SMPTE 259M, SMPTE 292M.
Audio Sampling
Television standard sample rate of 48Khz, 24 bit A/D conversion.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709
Multiple Rate support
SDI and HDMI are switchable between between standard definitlon and high definition
Software
Software Included
Converter Utility.
Operating Systems
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.
Windows 8.1 or Windows 10.
Power Requirements
Power Supply
12V power supply included with international socket adaptors for all countries.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
